Overview

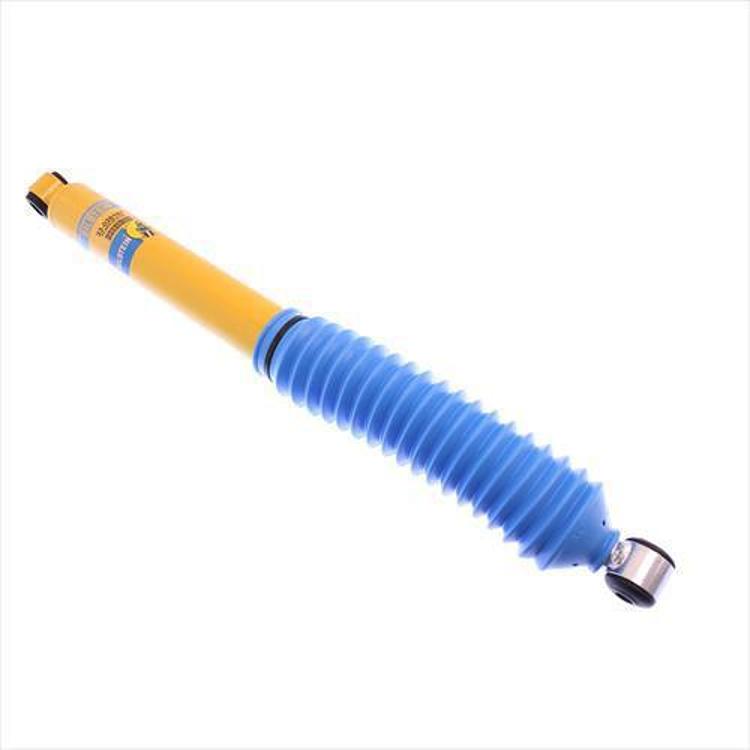

The Bilstein 4600 Series shock absorber, part 33-028187, is a front shock with a 2 inch monotube body, a zinc plated finish and boots included. It is a direct fit for the 1999-2004 Ford F-250 Super Duty and F-350 Super Duty, in the Harley-Davidson Edition and the King Ranch, Lariat, XL and XLT trims.
The gas charged monotube design moves heat from the oil to the outer surface of the shock body, where it dissipates more efficiently. A dividing piston lets the oil expand as it heats, limiting foaming and viscosity loss, so the shock keeps its full damping as temperatures rise. The shock uses a single tube with no separate reservoir, and the tube is made with a special extrusion method for tight peak-to-valley tolerance and consistent wall thickness.
Key features
- Gas charged monotube body with a 2 inch diameter
- Dividing piston that lets oil expand as heat builds
- Piston head with independent compression and rebound damping tuning
- Digressive piston design with fewer parts than conventional twin tube shocks
- Zinc plated finish
- Boots included
Front shock care
Front shocks on a heavy-duty truck handle steering loads, bumps and braking, so their condition affects control as much as ride. Check the body for oil film, the boots for tears and the mounts for play at regular service intervals. A shock that has lost damping can make the front end wander or bounce on washboard roads.
Gas charged monotube shocks keep their damping steady as they heat, but they are still pressurized. Do not heat, puncture or open the body. Replace front shocks in pairs when wear is found on one side, so both sides respond the same way in steering and braking. Check the front bushings and steering components while the shock is out.
- Inspect boots for tears and dirt intrusion
- Check mounts for play before replacing the shock
- Replace front shocks in matched pairs when possible
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 33-028187 |
| UPC | 651860433707 |
| Shock series | 4600 Series |
| Position | Front |
| Body diameter | 2 inch |
| Type | Monotube |
| Charging | Gas charged |
| Reservoir | None |
| Finish | Zinc plated |
| Boots | Included |
| Fitment | Direct fit |
| Lift height | 0 in. lift or drop |
Vehicle fitment
It covers the 1999-2004 Ford F-250 Super Duty and F-350 Super Duty in the Harley-Davidson Edition, King Ranch, Lariat, XL and XLT trims. The fitment is a direct fit with 0 in. lift or drop, and it is the front position.
Other Ford F-250 and F-350 years, and the F-150, are not covered here. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This model has no remote reservoir, so there is no reservoir hose to route or clamp to mount. Because the shock is gas charged, it is pressurized; have it removed and disposed of by a qualified shop rather than opened or heated.
What’s included
Boots are included with this shock absorber. The shock has no reservoir.
