Overview

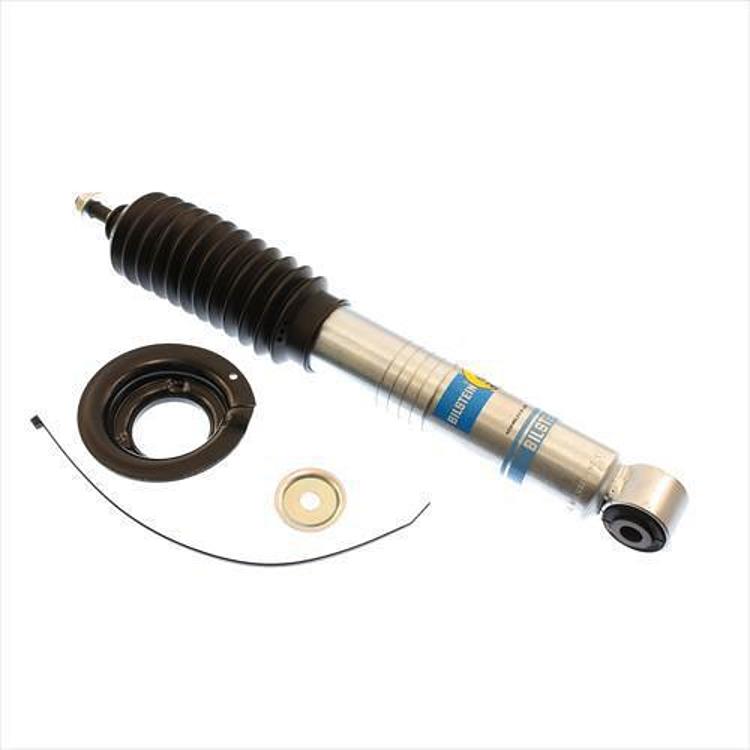

The Bilstein 5100 Series Ride Height Adjustable Shock Absorber, part number 24-187053, is a front, gas charged monotube shock designed to install like a factory replacement shock. Bilstein built it to correct factory nose-down rake, which is a front end that sits lower than the rear, so the vehicle can ride closer to level.
The OEM spring seat is repositioned to give the factory spring more preload, which gives a level front to rear ride height. Snap ring grooves on the 46mm ID body allow up to 2.75 in of front end lift depending on application, and the design allows increased wheel travel for a 33 in tire. Confirm fit for your vehicle’s year, model and trim before ordering.
Key features
- Snap ring grooves on the shock body allow up to 2.75 in of front end lift, depending on application
- Repositioned OEM spring seat adds preload to the factory spring
- Designed to correct factory nose-down rake for a level front to rear ride height
- The design offers increased wheel travel while accommodating a 33 in tire.
- Monotube gas pressure construction
- It is a more practical option than strut extensions or spring pre-load spacer kits.
- Application specific designs are available for many popular light trucks and SUVs
- Zinc plated finish with a boot included
Ride height and front alignment
Front ride height affects how the steering loads the tires, how the nose sits under braking, and how the suspension travels over bumps. A shock that corrects height works with the springs and bump stops to set how the front end rests and rebounds.
Changing front height alters camber and caster angles, so alignment should be checked after the shock is installed. Bump stops, control arm bushings and the front sway bar link also influence how the front end settles, so inspect them while the suspension is apart.
Rubber mounts and bushings should be seated correctly during installation. Recheck ride height and tire wear after the first few drives to confirm the new setup is stable.
- Check front alignment after the ride height change
- Inspect the boot for tears before installing
- Confirm the mounting bushings suit your vehicle
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-187053 |
| UPC | 651860597225 |
| Series | 5100 Series |
| Position | Front |
| Fitment | Direct Fit |
| Lift height | 0 to 2 in lift |
| Collapsed length | 10.55 in |
| Extended length | 15.26 in |
| Travel length | 4.71 in |
| Lower mount | Eye 14mm |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Reservoir | No |
| Finish | Zinc plated |
| Body design | 46mm ID snap ring grooved body (coilover) |
| Internal design | Monotube |
| Boot included | Yes |
| Charge | Gas charged |
Vehicle fitment
Confirm the application for your year, model and trim before ordering, since front lift depends on the vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the front lift depends on application, check ride height and front alignment after installing the shock.
What’s included
The shock includes a boot and is gas charged with a zinc plated finish.
Not included: Mounting hardware is not included, so plan to source it before installing.
