Overview

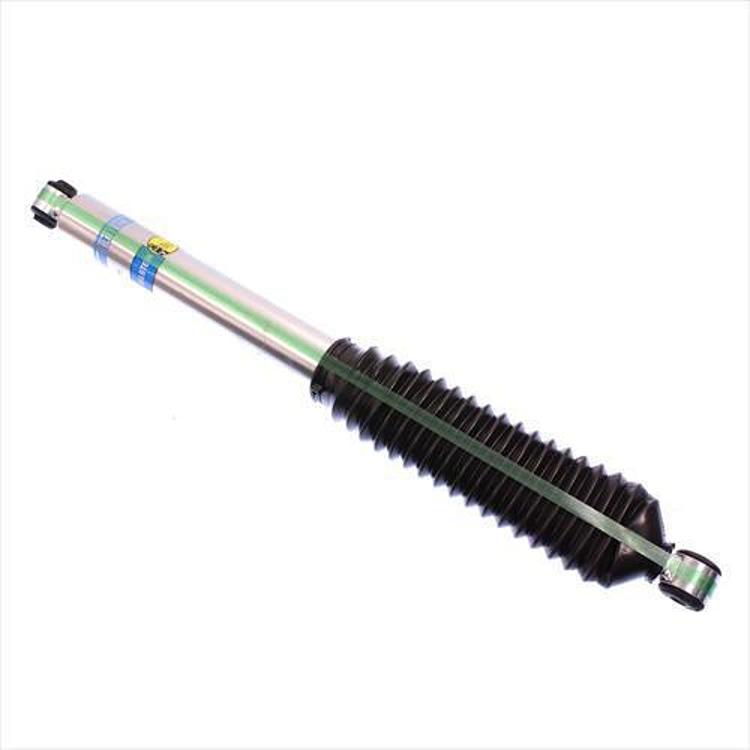

The Bilstein 5100 Series shock absorber, part number 33-151632, is a rear gas-charged monotube shock for the 1999-2004 Jeep Grand Cherokee (WJ). It fits the WJ in Laredo, Limited, Overland, Special Edition and Sport trims, and it suits lifted trucks, Jeeps and prerunners.
Bilstein presents the 5100 Series as its traditional single-tube design, built around gas pressure to hold damping steady over long use. The shock uses eye mounts at both ends and is designed for manufacturer lift kits that keep the stock mounting configuration. Its listed lift range is 3 – 4 in.
Key features
- Monotube gas pressure construction
- Self-adjusting deflecting disc valving
- High-flow piston that Bilstein says reduces harshness
- Independent rebound and compression tuning
- Larger working piston area for damping control
- Built to control large diameter tires
- Designed for lift kits that use the stock OEM mounting configuration
Checking the WJ setup
The WJ rear suspension moves a lot over rough trails, so the shock’s eye bushings take steady load. Measuring each eye before installation shows whether the existing bushing is a fit. Small differences in eye size can make a shock feel loose or cause it to bind, so compare carefully.
Lift height and mounting detail should be checked together. A shock suited to a moderate lift may run out of travel on a taller setup. Inspect the rear bump stops and brackets as well, since they absorb load when the axle reaches the end of its travel.
- Measure the eye bushings on both ends
- Compare shaft diameter with the bushing bore
- Check lift height before final tightening
- Inspect bump stops for cracks or compression
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 33-151632 |
| UPC | 651860604640 |
| Series | 5100 Series |
| Position | Rear |
| Collapsed length | 15.91 in. |
| Extended length | 25.93 in. |
| Travel length | 10.02 in. |
| Lower mount | Eye, 12.2 mm |
| Upper mount | Eye, 12.1 mm |
| Shaft diameter | 14 mm |
| Body design | 46 mm ID smooth body |
| Internal design | Monotube |
| Reservoir | No |
| Gas charged | Yes |
| Finish | Zinc plated |
| Fitment type | Direct fit |
| Lift height | With 3 – 4 in. lift |
Vehicle fitment
It fits the 1999-2004 Jeep Grand Cherokee (WJ) in the Laredo, Limited, Overland, Special Edition and Sport trims.
The list names only the WJ generation, so the 1993-1998 Grand Cherokee (ZJ) and other Jeep models are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the 12.2 mm lower and 12.1 mm upper eye sizes with your existing mounts before fitting the shock, and check that your lift falls within the listed 3 – 4 in. range.
What’s included
Check the package contents, including any boot and mounting hardware, against your installation before starting.
