Overview

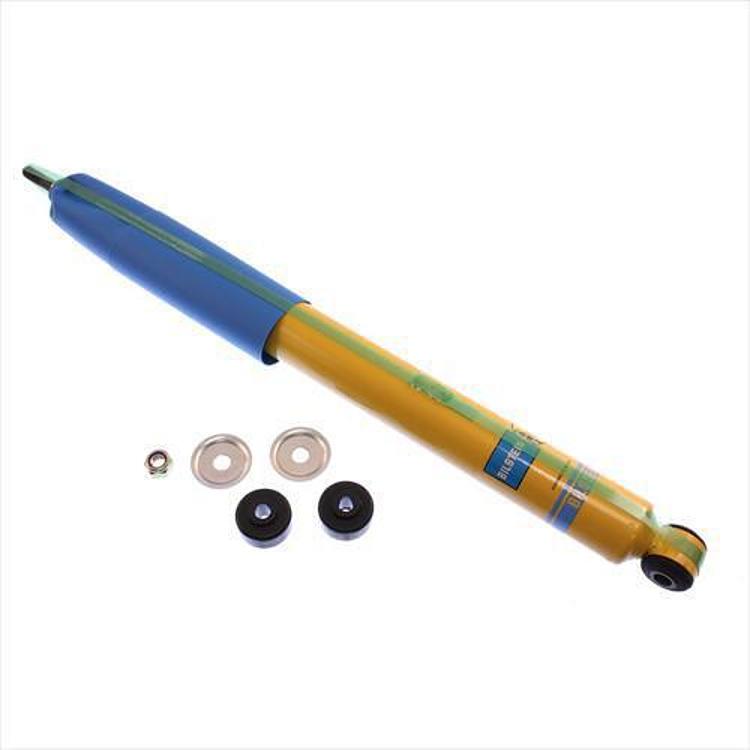

The Bilstein 24-024792 is a rear 4600 Series shock absorber with a zinc plated finish and a 2 inch body. It fits the 1997–2003 Ford F-150, the 2004 Ford F-150 Heritage and the 2002 Lincoln Blackwood, in the trims covered below. It is a gas-charged monotube design with boots included.
The monotube holds the oil and gas charge in a single tube, with a dividing piston between them. Heat moves from the oil out through the shock body, and the dividing piston lets the oil expand as it warms. That arrangement reduces foaming and loss of viscosity, so the damper keeps its damping as temperatures rise. The tube is seamless and formed by a special extrusion process for consistent wall thickness.
Key features
- Gas-charged monotube with a dividing piston that lets oil expand as heat builds
- Helps prevent aeration (foaming) and viscosity loss.
- Seamless tube with tight peak-to-valley tolerance from extrusion
- Piston head design allowing separate tuning of compression and rebound damping
- Fewer parts than conventional twin tube designs.
- Zinc plated finish, boots included, no reservoir listed
Caring for gas-charged shocks
Gas-charged shocks rely on a sealed body and a pressurized charge to keep damping stable. Care is mostly about keeping the body clean and checking for leaks, since road salt and grit can work into the seals and boot over time. A quick rinse after winter driving helps the finish last longer.
Inspect the shock every few months. Look for oil film on the body, a boot that has split or pulled away, and bushings that have cracked. A shock that rocks the truck after a dip, or clunks over small bumps, has probably lost damping. Replacing shocks in pairs keeps the rear end balanced, and checking the mounts at the same time helps the new unit last. Tighten fasteners after the first few drives, since they can settle under load.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-024792 |
| UPC | 651860411842 |
| Shock series | 4600 Series |
| Position | Rear |
| Body diameter | 2 inch |
| Type | Monotube |
| Gas charge | Gas charged |
| Finish | Zinc plated |
| Reservoir | No |
| Boots included | Yes |
| Fitment type | Direct fit |
| Lift/drop rating | 0 in. lift/drop |
Vehicle fitment
It fits the 1997–2003 Ford F-150 in Base, Harley-Davidson Edition, King Ranch, Lariat, XL and XLT trims, the 2004 Ford F-150 Heritage in XL and XLT trims, and the 2002 Lincoln Blackwood in Base trim.
Ford F-150 model years outside 1997–2003 are not on this list, and the standard 2004 F-150 lineup is not covered, only the Heritage. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Gas-charged shocks hold a pressurized charge, so they should not be opened, heated or punctured during mounting.
What’s included
Boots are included and no reservoir comes with it. Check your existing mounts before installation.
