Overview

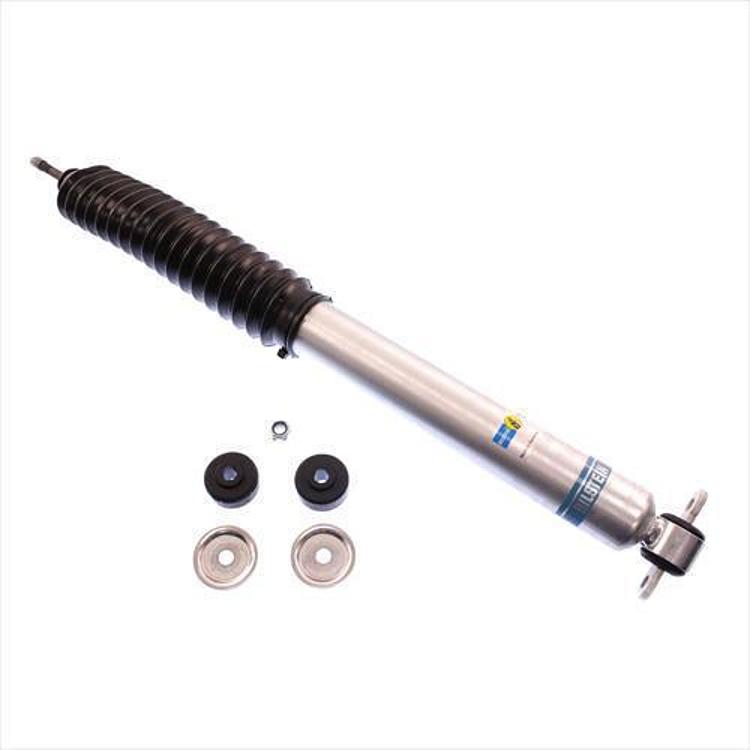

The Bilstein 5100 Series front shock absorber, part number 24-185929, fits the 2004–2006 Jeep Wrangler (LJ) and the 1997–2006 Jeep Wrangler (TJ). It is a gas-charged monotube shock with a bar pin lower mount, a stem upper mount and a 14.98 in. collapsed length, and it is designed for a 4 in. lift.
The 5100 Series is a traditional single-tube design built on high gas pressure for lifted trucks, Jeeps and prerunners. It is made for lift kits that use the stock O.E.M. mounting arrangement.
Key features
- Monotube gas pressure body that Bilstein says keeps damping consistent over long use
- Self-adjusting deflecting disc valving
- High-flow piston intended to reduce harshness
- Independent rebound and compression tuning
- Larger working piston area for damping control
- Designed to handle large diameter tires.
Trail use and tires
Shocks on Wranglers that carry larger tires work harder on rough trails because the tire adds leverage at the wheel. Tire size, wheel weight and trail type all influence how quickly a shock wears. Choosing a shock that suits the lift and tire combination helps keep control steady on uneven ground.
The bar pin lower mount relies on a bushing or pin that can wear, so inspect it when the shock is off. Worn control arm bushings and bump stops often accompany shock replacement on older Wranglers, because they change how the new shock loads. Trail grit reaches the shaft quickly, so check the boot too.
- Inspect bar pin bushings for wear
- Check bump stops for cracks
- Re-check bolts after the first trail runs
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-185929 |
| UPC | 651860613802 |
| Shock series | 5100 Series |
| Position | Front |
| Collapsed length | 14.98 in. |
| Extended length | 24.63 in. |
| Travel length | 9.65 in. |
| Lower mount | Bar pin |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Monotube |
| Gas charge | Gas charged |
| Reservoir | No |
| Finish | Zinc plated |
| Boot | Included |
| Lift height | Designed for a 4 in. lift |
| Fitment type | Direct fit |
Vehicle fitment
Fits the 2004–2006 Jeep Wrangler (LJ), including Unlimited and Unlimited Rubicon, and the 1997–2006 Jeep Wrangler (TJ), including the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims.
Other Wrangler generations, including the JK, are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The lower mount is a bar pin and the upper is a stem, so confirm both match your bracket before fitting. Compare the 14.98 in. collapsed and 24.63 in. extended lengths with your suspension measurements.
What’s included
One shock with its boot. Check the package contents against your installation before starting.
