Overview

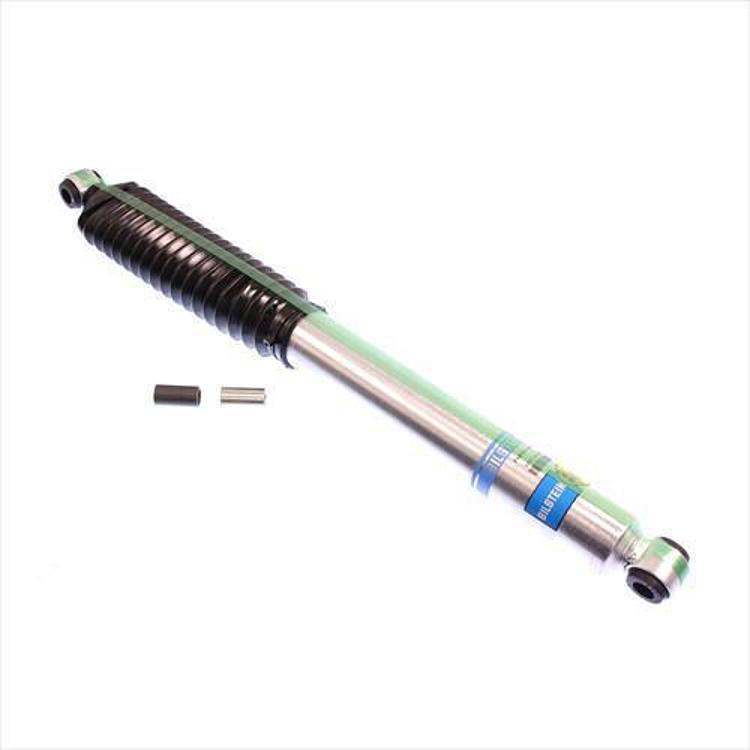

The Bilstein 5100 Series Shock Absorber, part number 24-185530, is a rear gas-charged monotube shock with 16mm eye mounts at both ends. It is listed with a w/2 – 4 in. Lift rating, and its manufacturer fitment list includes Ford Bronco, Expedition, F-150, F-250 and F-350 entries.
Collapsed length is 16.14 in and extended length is 26.16 in, giving a travel of 10.02 in. Those are the measurements to check against your current shock when matching a replacement to a lift.
The 5100 line is built for lifted trucks, Jeeps and prerunners, and this rear unit uses a single tube with high gas pressure. It has a 46mm ID smooth body, a 14mm shaft and a zinc plated finish.
Key features
- Monotube gas pressure construction
- Self-adjusting deflecting disc valving for damping control
- High-flow piston that Bilstein says reduces harshness
- Independent rebound and compression tuning
- Larger working piston area for exact damping
- Designed for large-diameter tires and specific manufacturer lift kits
Rear shock life and mounts
A rear shock controls axle movement and keeps the tires in contact on washboard and rough trail. Under a heavier load or on steep grades, the rear units work continuously, so the gas charge and valving are tested more often than on a daily driver. Inspect the body and shaft after each season of hard use.
Eye mounts depend on their bushings to isolate road noise, and those bushings wear faster on lifted vehicles. A loose eye can look like a failed shock, so check for play before replacing the unit. Keep the mounting hardware torqued to the vehicle specification and recheck it after the first few trail runs.
- Look for fluid on the outside of the body
- Check each eye bushing for cracks or play
- Confirm the lift height falls inside the rated range
- Replace worn units in pairs on the same axle
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-185530 |
| UPC | 651860453668 |
| Series | 5100 Series |
| Position | Rear |
| Collapsed length | 16.14 in |
| Extended length | 26.16 in |
| Travel | 10.02 in |
| Lower mount | Eye, 16mm |
| Upper mount | Eye, 16mm |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Finish | Zinc plated |
| Reservoir | No |
| Boot | Included |
| Lift height | w/2 – 4 in. Lift |
| Charge | Gas charged |
| Fitment type | Direct Fit |
Vehicle fitment
It fits the Ford Bronco 1980–1996 (Custom, Eddie Bauer, Ranger XLT, XL, XLS, XLT, XLT Lariat, XLT Nite, XLT Sport), Expedition 1997–2002 (Eddie Bauer, XLT), F-150 1980–1996, F-250 1980–1998 and F-350 1980–1995, with trim names given where they apply.
The list does not include Super Duty F-250 or F-350 models, or F-250 trucks after 1998, and it has no Ford models outside the entries named above. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Both ends use 16mm eye mounts, so compare them with the mounting points on your axle and frame before fitting. It is rated for w/2 – 4 in. lift, so confirm your installed lift falls within that range.
The body holds pressurized gas, so keep it away from heat and never puncture it.
What’s included
Rear shock absorber with boot.
