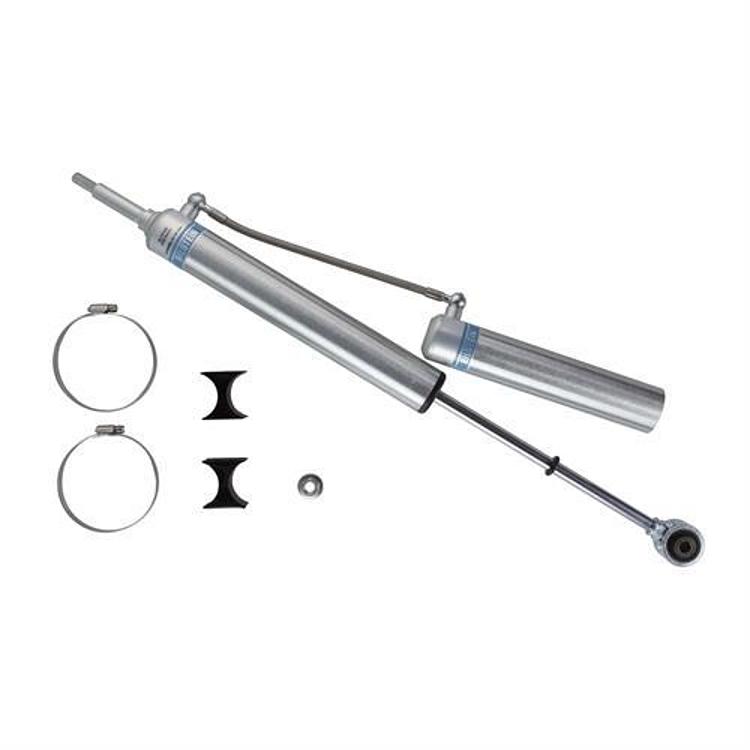

Bilstein 46mm Monotube Shock Absorber – 25-237429

Bilstein

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 25-237429 rear 46mm remote reservoir monotube shock
  • B8 5160 Series with 46mm digressive piston
  • Lift range w/0 – 1.5 in.; Direct Fit listed
  • UPC 651860737751

Description

Overview

The Bilstein 25-237429 is a rear 46mm monotube shock absorber with a remote reservoir, from the Bilstein B8 5160 Series. It is designed as a direct fit for each specific vehicle application, which avoids the custom fabrication often needed for a high-performance reservoir shock.

The 46mm digressive piston and self-adjusting deflective disc valving are paired with the reservoir, which Bilstein says adds cooling capacity and increased shock travel.

Key features

  • Remote reservoir design
  • 46mm digressive piston
  • Self-adjusting deflective disc valving
  • Rear position
  • Direct fit to each specific vehicle application.
  • Covers w/0 – 1.5 in. lift

Planning a reservoir install

A remote reservoir shock uses a separate body connected to the shock by a hose. That layout moves the gas charge away from the main body, which gives room for oil and helps the damping stay steady during longer runs over rough ground.

Plan the mounting space before the shock is removed. Check where the reservoir will sit, how the hose will route past the frame, suspension and exhaust, and whether the hose will stay clear of heat sources and moving parts. Use clamps and fasteners that suit the hose and body.

A reservoir shock often works best as part of a matched rear setup. If the lift changes, the required length and hose path may change too, so confirm clearance with the suspension at full travel. Replacing worn bushings and hardware at the same time keeps the new unit working as intended.

  • Confirm clearance with the wheels turned
  • Check the hose for kinks, rubbing or cracks
  • Keep the reservoir clear of mud and debris
  • Re-check the clamps after the first trail runs

Specifications

Brand Bilstein
Part number 25-237429
UPC 651860737751
Shock series 5160 Series
Position Rear
Piston 46mm digressive
Valving Self-adjusting deflective disc
Reservoir Remote
Gas charge Gas charged
Fitment Direct Fit
Lift height w/0 – 1.5 in. lift

Vehicle fitment

Direct Fit is the fitment type, but no year, model or trim is tied to it. Because the shock is built for a specific application, compare the vehicle match before ordering. Confirm your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A remote reservoir is a separate body linked to the shock body, so check mounting space and hose routing before the rear shock is installed.

What’s included

This is one rear shock absorber with its remote reservoir. Check the package contents for reservoir mounting hardware before installing.

SKU: BIL25-237429 Category:

Specification

Shipping weight 7.95 lbs
Package dimensions 26.80 × 4.20 × 4.20 in
brands

Questions & Answers

Is the Bilstein 25-237429 a rear shock?

Yes. It is a rear shock from the Bilstein B8 5160 Series, with a 46mm monotube body and a remote reservoir. Its position is rear, so confirm it suits your rear mounting points.

What lift range does the 25-237429 cover?

The shock covers a range of w/0 to 1.5 in. lift, so it suits vehicles with no lift up to that height. Confirm your year, model and trim before ordering to be sure the range matches your setup.

Does the 25-237429 fit my vehicle?

It is a direct fit, with no year, model or trim tied to it. Each application is matched individually, so compare the vehicle match before ordering. Confirm your vehicle's year, model and trim before ordering.

What does the remote reservoir add?

The shock includes a remote reservoir with its own body, linked to the shock. Reservoir mounting hardware should be checked in the package before installing, along with hose routing.

Does a remote reservoir need extra clearance?

Yes, usually. The reservoir sits as a separate body, so plan space for it and route the hose away from heat, sharp edges and moving parts. Check clearance with the wheels turned and the suspension at full travel.
