Overview

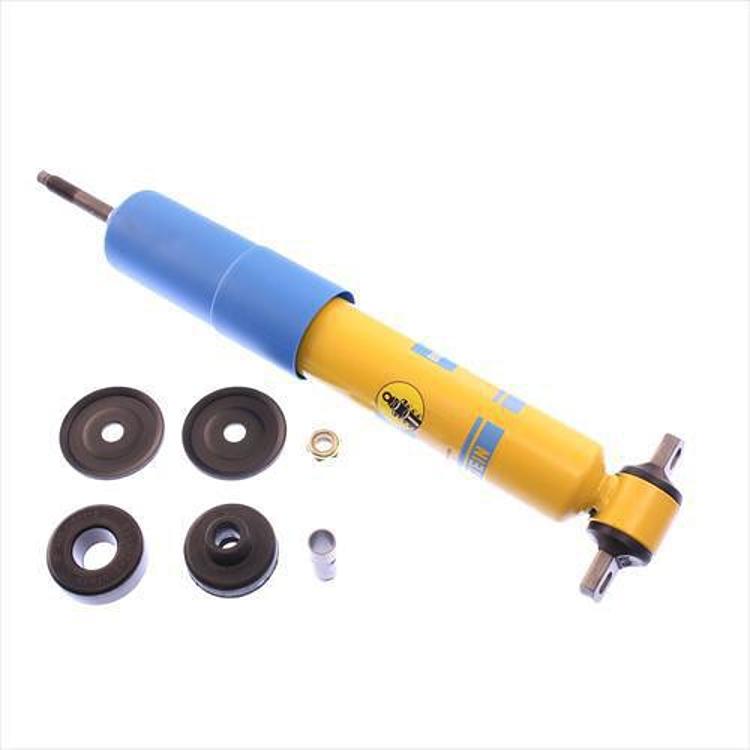

The Bilstein 46mm Monotube Shock Absorber, part number 24-187480, is a heavy duty front shock for the 2009–2010 Dodge Ram 1500 and the 2011–2018 Ram 1500, installed as a direct fit. It is a gas-charged monotube shock in the 4600 Series and has no lift or drop.
The monotube body moves heat out of the oil through the shock wall, which helps the damping stay consistent as the shock warms. A dividing piston gives the oil room to expand, limiting foaming. The seamless tube is extruded to tight peak-to-valley tolerance and even wall thickness, and compression and rebound damping can be tuned separately through the piston head. The design uses fewer parts than most twin tube and road sensing designs.
Key features
- Gas-charged monotube body for heat dissipation through the shock wall
- Dividing piston that accommodates oil expansion as temperatures rise
- Seamless tube extruded for tight tolerance and consistent wall thickness
- Separately tunable compression and rebound damping in the piston head
- Heavy duty construction in a yellow finish
- Front position, direct fit, with no lift or drop listed
- Fewer parts than most conventional twin tube designs
Heat and damping on long hauls
Heat is the main enemy of a shock on a heavy pickup. Long grades, towing and repeated trail sections all push oil temperature up, and a shock that loses damping as it warms feels loose and wallowy. A monotube body with room for oil expansion helps the shock hold its damping through those conditions, which is why many owners of full-size trucks choose this design for steady use.
Because the front shocks share the load with the springs and steering, a change in one corner can be felt at the wheel. If only one side is replaced, the new shock will damp harder or softer than its partner. Matching the pair helps the truck track straight and brake evenly.
- Check for oil seepage around the shock body after each season
- Inspect the mounting bushings for cracking or play
- Look for uneven tire wear that can follow a worn damper
- Recheck mounting bolt torque after the first few hundred miles
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-187480 |
| UPC | 651860641232 |
| Product type | 46mm Monotube Shock Absorber |
| Series | 4600 Series |
| Position | Front |
| Fitment type | Direct fit |
| Lift height | w/0 in. Lift/Drop |
| Charge | Gas charged |
| Color | Yellow |
| Duty | Heavy duty |
| Previous part number | BILF4-BE5-G740-H0 |
Vehicle fitment
The shock fits the 2009–2010 Dodge Ram 1500 in the Laramie, SLT, ST, Sport and TRX trims. It also fits the 2011–2018 Ram 1500 in the Big Horn, Express, HFE, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, R/T, SLT, ST, Sport and Tradesman trims.
Ram 1500 model years before 2009 and after 2018, and Ram 2500 and 3500 models, are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the mount style, eye size and overall length against the shock being replaced before installing. Work on the front suspension with the truck safely raised and supported.
What’s included
The package contains one shock absorber. Check the contents against your order when it arrives, including any hardware you need for installation.
