Bilstein 5100 Series Shock Absorber – 24-186704

Bilstein

$76.20In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 2:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear 5100 Series monotube gas charged shock, part 24-186704
  • Fits 2004-2008 Ford F-150 in several trims
  • Rated for w/0 – 1 in. lift
  • Eye mounts at both ends, 9.63 in. travel, boot included

Description

Overview

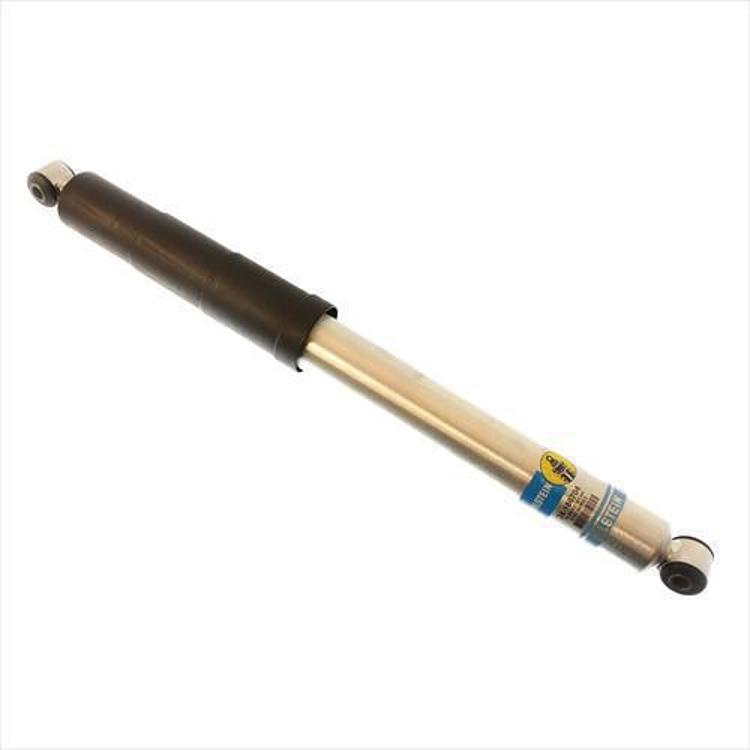

The Bilstein 24-186704 is a rear 5100 Series monotube gas charged shock absorber with a 9.63 in. travel length. It fits the 2004 to 2008 Ford F-150 in the FX2, Harley-Davidson Edition, King Ranch, Lariat, Limited, STX, THE 60TH ANNIVERSARY EDITION, XL and XLT trims. Its lift rating is w/0 – 1 in. lift, so it suits trucks at or near stock height.

Bilstein designed the 5100 Series for lifted trucks, Jeeps and prerunners. The single tube, high gas pressure body is intended for consistent damping and long life, and the non-coilover body uses the stock OEM mounting configuration of the lift kits it was matched to.

Key features

  • Monotube gas pressure construction
  • Self-adjusting deflecting disc valving
  • High-flow piston that Bilstein says reduces harshness
  • Independent rebound and compression tuning
  • Larger working piston area for controlled damping
  • Boot included

Choosing a replacement rear shock

Rear shocks on a pickup work alongside the leaf springs or coils and absorb the motion that builds up when the axle moves over bumps and ruts. A monotube body with a gas charge keeps the oil under steady pressure, which makes damping more predictable on rough roads and during repeated compression. Many owners pick this style when they want firm, consistent control without a remote reservoir to mount.

Before buying, match the collapsed and extended lengths to the old unit, since a mismatch can bind the suspension at full droop or full compression. The eye mounts at both ends should line up with your existing brackets. Rear shocks are often replaced as a pair so that ride and handling stay even from side to side.

  • Measure the old shock’s collapsed and extended lengths
  • Check eye sizes and bushing condition
  • Inspect for leaks, dents and a split boot
  • Replace bump stops if they are cracked

Specifications

Brand Bilstein
Part number 24-186704
UPC 651860490342
Series 5100 Series
Position Rear
Collapsed length 15.31 in.
Extended length 24.94 in.
Travel length 9.63 in.
Lower mount Eye, 12mm
Upper mount Eye, 12mm
Shaft diameter 14mm
Body design 46mm ID smooth body, non-coilover
Internal design Monotube
Gas charged Yes
Reservoir No
Finish Zinc plated
Boot Included
Lift height rating w/0 – 1 in. lift
Fitment type Direct fit

Vehicle fitment

It is a direct fit for the 2004 to 2008 Ford F-150 in the FX2, Harley-Davidson Edition, King Ranch, Lariat, Limited, STX, THE 60TH ANNIVERSARY EDITION, XL and XLT trims.

Model years outside 2004 to 2008 and other Ford trucks are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The rated lift is w/0 – 1 in. lift, so this rear shock is not rated for a larger lift. Check your truck’s height against that range, and support the rear axle on stands before removing the shock.

What’s included

One Bilstein 5100 Series rear shock absorber with its boot.

SKU: BIL24-186704 Category:

Specification

Shipping weight 4.85 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1502004–2008FX2, Harley-Davidson Edition, King Ranch, Lariat, Limited, STX, THE 60TH ANNIVERSARY EDITION, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 24-186704 fit a 2006 Ford F-150?

Yes. It fits the 2004 to 2008 Ford F-150 in trims such as XL, XLT, STX and King Ranch. Confirm fit for your vehicle's year, model and trim before ordering.

What lift height is this rear shock rated for?

The rated lift is w/0 - 1 in. lift. A shock with that rating is intended for trucks at or near stock height, so compare the rating with your suspension before fitting it.

Are the mounts on the 24-186704 eye type?

Yes. Both the lower and upper mounts are 12mm eyes. The collapsed length is 15.31 in., the extended length is 24.94 in., and the travel length is 9.63 in.

Should rear shocks be replaced in pairs?

Replacing both rear shocks at the same time is common practice. It keeps damping even from side to side, so the truck tracks more evenly over bumps. Inspect the other side for leaks or a worn boot before deciding.
