Overview

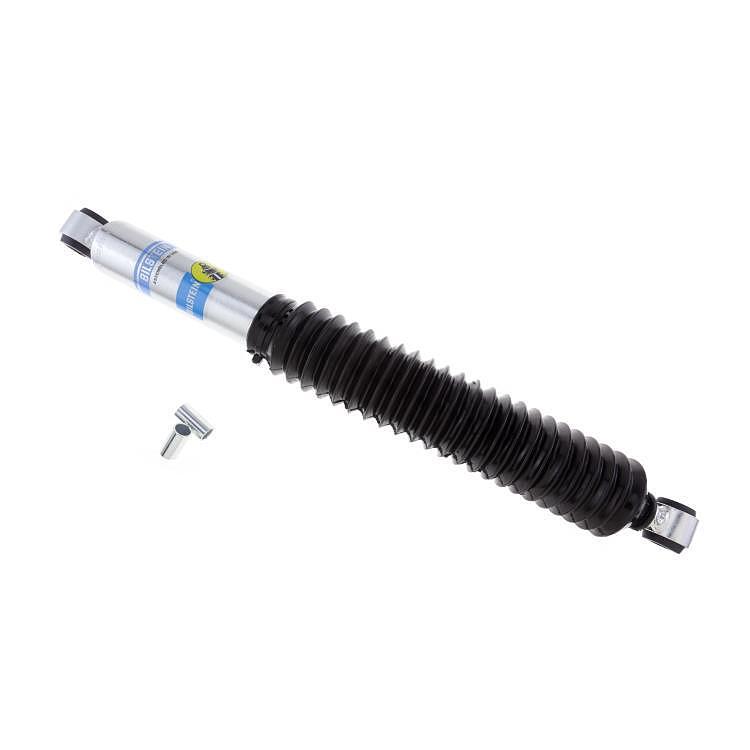

The Bilstein 5125 Series Shock Absorber, part number 33-230313, is a rear 46mm monotube shock for custom applications. It fits 1976–1983 Jeep CJ5 and 1976–1986 Jeep CJ7 models, with a lift height rated w/2 – 2.5 in. Lift.
Bilstein designs the 5125 Series for vehicles without a direct Bilstein fitment, and the series is sold in several lengths and valve rates. This shock is a smooth body, non-coilover design with no reservoir, so it works as a standalone damper.
Key features
- 46mm piston with self-adjusting deflective disc valving
- High gas pressure monotube construction
- Industry standard 5/8 inch hour glass bushings, which Bilstein says come equipped on 5125 shocks
- Eye/eye or stem/eye mount configurations available across the series
- Zinc plated finish
Custom fit considerations
Custom shocks are chosen for a specific build rather than a direct replacement, so the mounting style and length matter more than usual. A smooth, non-coilover body with gas charge works as a standalone damper on an older Jeep frame. Its damping character depends on the valve setup, so consider how the vehicle is used on the road and on trails.
Before fitting, measure the mount-to-mount distance with the suspension at the height you plan to run. Compare that figure with the shock’s collapsed and extended lengths, and confirm the bushings match the brackets you have. Clean the eyelets, check the hardware for wear, and recheck fasteners after the first drives.
- Measure mount-to-mount distance at ride height
- Match eye or stem style to brackets
- Check bushings against existing hardware
- Recheck fasteners after the first drives
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 33-230313 |
| UPC | 651860727349 |
| Shock series | 5125 Series |
| Position | Rear |
| Body diameter | 46mm |
| Body design | Smooth body (non-coilover) |
| Reservoir | No |
| Collapsed length | 13.66 in. (347 mm) |
| Extended length | 21.67 in. (550.5 mm) |
| Compression at 0.52m/s | 575 |
| Rebound at 0.52m/s | 1600 |
| Lift height | w/2 – 2.5 in. Lift |
| Finish | Zinc plated |
| Hydraulic / gas charged | Gas charged |
Vehicle fitment
Bilstein’s manufacturer fitment list includes 1976–1983 Jeep CJ5 (Base, Golden Eagle, Laredo, Limited, Renegade) and 1976–1986 Jeep CJ7 (Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade).
The list covers CJ5 and CJ7 only and has no entries for Wrangler YJ, TJ or later models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because this is a custom application shock, compare the 13.66 in. collapsed and 21.67 in. extended lengths with your measured mount-to-mount distance before installing. Confirm that your mount type matches the 5/8 inch hour glass bushings used in this series.
What’s included
One 5125 Series rear shock absorber, part number 33-230313, with its 5/8 inch hour glass bushings. The product also carries a California Residents warning heading with no further text.
