Overview

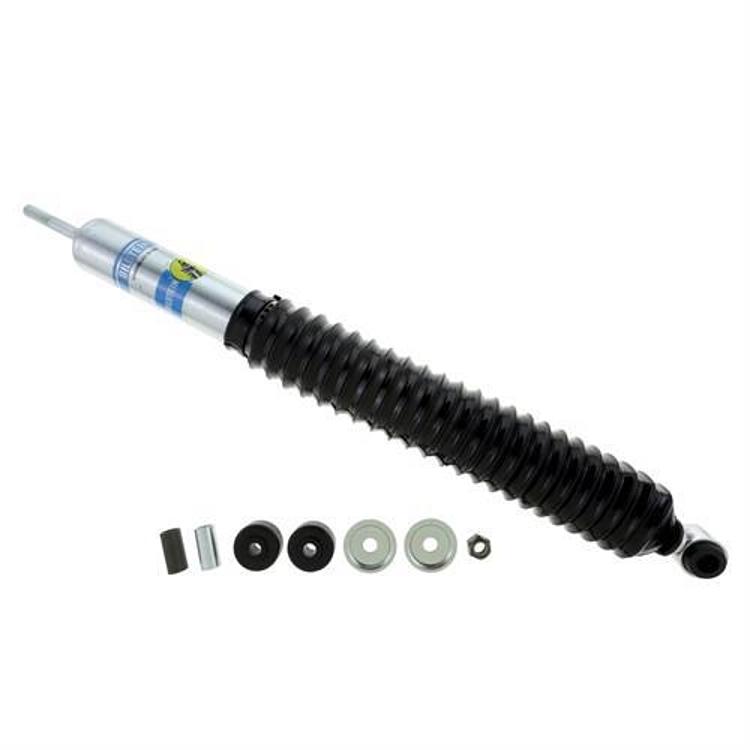

Bilstein part 33-230450 is a 46mm monotube shock absorber in the 5125 Series, built for custom suspension work on vehicles without a direct Bilstein fitment. It carries a universal fit label, so the length and mounting style must be worked out for each application.
The body is gas charged with a high gas pressure monotube layout, and the 46mm piston uses self-adjusting deflective disc valving. Several lengths and valve rates are offered, so the right configuration depends on the build.
Key features
- Gas charged monotube body with high gas pressure
- 46mm piston and self-adjusting deflective disc valving
- Equipped with industry standard 5/8 inch hour glass bushings
- Eye/eye or stem/eye mount choice
- Multiple lengths and valve rates in the 5125 Series
Planning a custom install
A universal shock is a starting point rather than a finished part. Plan the install by sketching the suspension geometry, then mark the upper and lower mount points on the frame and axle. Note where the shock will sit at ride height, at full droop and at full compression, since each position changes the travel the shock must cover.
Test fitting helps avoid surprises. Use a spare length of pipe or a bench jig to check clearance before drilling or welding brackets. Confirm that the eye or stem sits square to the mount so the bushings are not forced into an angle. Bump stops and brake lines are often overlooked and should be checked during the test.
- Mark mount points at ride height
- Check clearance at full compression
- Confirm bushings seat square
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 33-230450 |
| UPC | 651860729213 |
| Shock series | 5125 Series |
| Piston | 46mm |
| Valving | Self-adjusting deflective disc |
| Bushings | 5/8 inch hour glass |
| Mount configuration | Eye/eye or stem/eye |
| Charge | Gas charged |
| Fitment | Universal fit |
Vehicle fitment
No vehicle is named, and the fitment is universal. Measure the mounting points for your application and confirm the mount style before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Only the shock absorber is described. The bushing size is stated, but no extra hardware is itemized.
