Bilstein 5165 Series Reservoir Shock Absorber – 25-187885

Bilstein

Shop Bilstein Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 5165 Series reservoir shock, part number 25-187885
  • Described by Bilstein as universal fit for custom lifted trucks and SUVs
  • 5/8 in eye mounts, 14mm shaft, 7.42 in travel
  • Compression 700, rebound 2550
  • Includes 1/2 in sleeves and a reservoir mounting kit

Description

Overview

The Bilstein 25-187885 is a 5165 Series reservoir shock absorber built with 5/8 in eye mounts at each end. Its universal fit design suits custom lifted trucks and SUVs in general, so confirm fit for your year, model and trim before ordering.

A remote reservoir gives this gas charged shock more oil capacity, while the digressive valving is meant to deliver full damping from the start. The 14mm shaft, 46mm ID smooth body and mono tube layout come with 7.42 in of travel, a 12.3 in collapsed length and a 19.72 in extended length. Compare those lengths with your suspension before choosing this shock, and remember that universal fit does not confirm mounting spacing for any one build.

Key features

  • Remote reservoir for greater shock oil capacity.
  • Digressive valving meant to produce full damping from the start.
  • Floating dividing piston housed in the reservoir for wheel travel.
  • Mono tube design in a 46mm ID smooth body.
  • Zinc plated finish with Bilstein’s Triple-C Technology.
  • Includes 1/2 in sleeves, a reservoir mounting kit and detailed instructions.

Gas charged shock care

Gas charged shocks keep their damping steady under heavy use, but they still need regular inspection. Heat builds up in the body and reservoir during long downhill runs, so check for seepage at the seals after trips with heavy loads or extended off-road driving. A shock that feels spongy or bounces more than usual may have lost its gas charge.

Sleeves and reservoir mounting clamps should be checked alongside the shock itself. Loose clamps let the reservoir move against the frame, which wears both the hose and the mount. Tighten clamps after the first few drives and inspect the reservoir routing once a season.

  • Check seals after long downhill runs
  • Inspect reservoir clamps for movement
  • Replace a shock that bounces or feels spongy

Specifications

Brand Bilstein
Part number 25-187885
UPC 651860696560
Series 5165 Series
Fitment type Universal Fit
Collapsed length 12.3 in
Extended length 19.72 in
Travel length 7.42 in
Compression 700
Rebound 2550
Lower mount 5/8 in eye
Upper mount 5/8 in eye
Shaft diameter 14mm
Reservoir Yes
Body design 46mm ID smooth body (non-coilover)
Internal design Mono tube
Finish Zinc plated
Boot included No
Mounting parts included 1/2 in sleeves and a reservoir mounting kit
Hydraulic / gas charged Gas charged

Vehicle fitment

No vehicles are named for this part. Bilstein’s universal fit description refers to custom lifted trucks and SUVs in general, so a match for a specific year, make, model or trim is not confirmed here.

Compare the lengths and mount spacing with your suspension before choosing this shock. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Sleeves and the reservoir mounting kit are the included hardware, so check how the 1/2 in sleeves seat in the 5/8 in eyes before fitting. Allow room between the reservoir, frame and tires, and recheck that space once the shock is in place.

What’s included

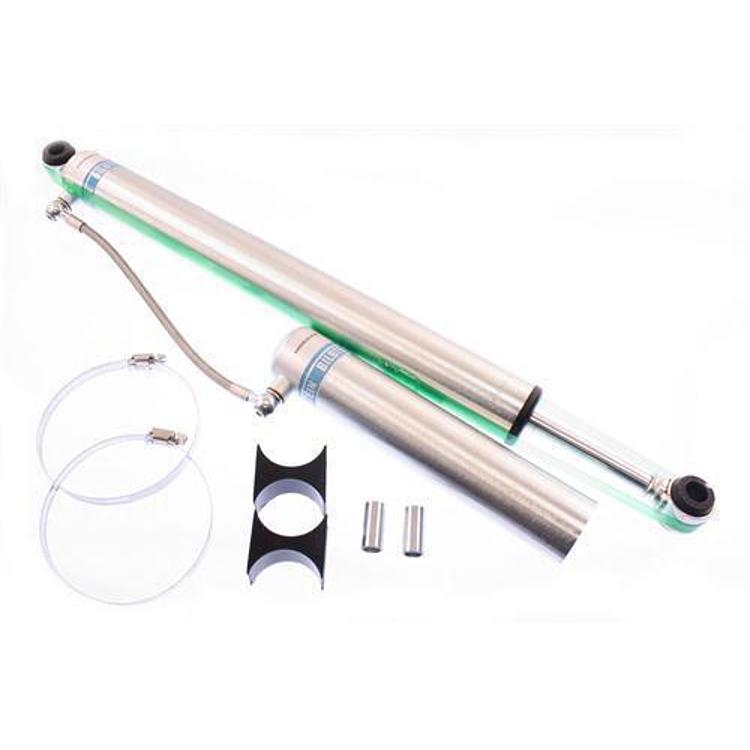

Includes 1/2 in sleeves, a reservoir mounting kit and detailed instructions.

Not included: Boot.

SKU: BIL25-187885 Category:

Specification

Shipping weight 4.62 lbs
Package dimensions 26.80 × 4.20 × 4.20 in
brands

Questions & Answers

Can the Bilstein 25-187885 be used on any lifted truck?

It is a universal fit design for custom lifted trucks and SUVs, without a match tied to a specific vehicle. Check the 12.3 in collapsed and 19.72 in extended lengths against your suspension before choosing this shock.

What is the travel on this 5165 Series shock?

Travel is 7.42 in, with a 14mm shaft diameter and 5/8 in eye mounts at both ends. The shock is gas charged, with a mono tube design and a remote reservoir.

Which mounting hardware is included with the 25-187885?

Bilstein includes 1/2 in sleeves and a reservoir mounting kit, plus detailed instructions. The boot is not included, so plan on checking the mounting points for your vehicle before installing the shock.

Can a sealed reservoir shock be rebuilt?

Most sealed monotube reservoir shocks are replaced rather than rebuilt. The gas charge and oil are sealed inside the body, so a leak or loss of damping usually means a new shock. Check the warranty terms before deciding, and keep the old shock until the replacement is fitted.
