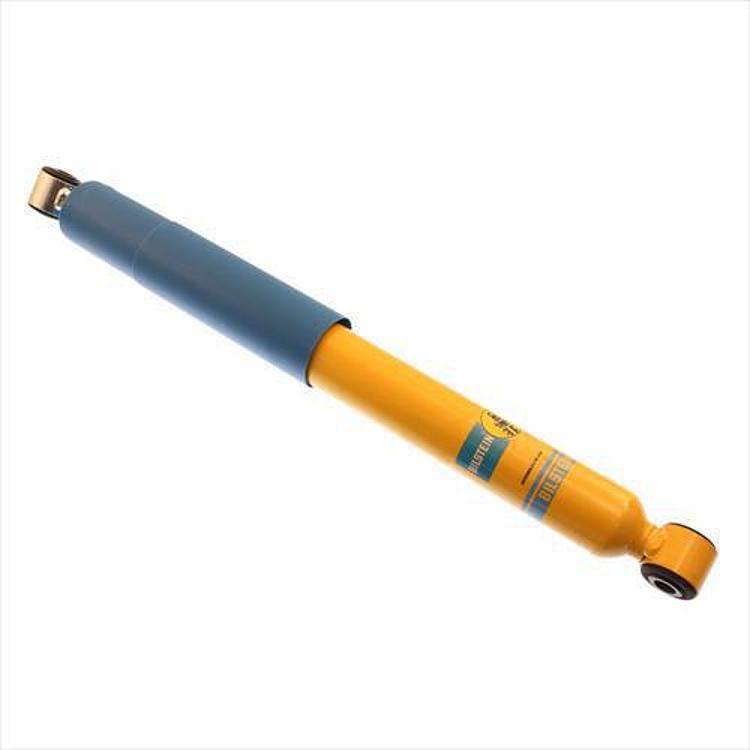

Bilstein 46mm Monotube Shock Absorber – 24-015875

Bilstein

$116.49In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 3:50 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Heavy Duty rear 46mm B6 Series monotube shock
  • Rear 46mm shock for 1973–1989 Chevrolet and GMC C and R series pickups
  • Part number 24-015875; former number BILF4-B46-1477-H1
  • Yellow finish, direct fit

Description

Overview

The Bilstein 24-015875 is a heavy-duty rear 46mm monotube shock absorber from the B6 Series, finished in yellow. It is a direct fit for 1973–1989 Chevrolet and GMC C and R series pickups, including the C20, C30, R20, R2500 and R30 for Chevrolet and the C25, C2500, C35, C3500 and R3500 for GMC.

Monotube construction puts the gas charge and damper oil in one tube, with a dividing piston that lets the oil expand as it warms. The body tube is extruded to a tight peak-to-valley tolerance with even wall thickness. The seamless design adds strength and carries heat from the oil through the body.

Key features

  • Heavy Duty rating with a 46mm monotube body
  • Rear position with 0 in. lift/drop
  • Extruded tube for tight tolerance and consistent wall thickness
  • Dividing piston for oil expansion during heating
  • Piston head tunes compression and rebound damping separately
  • Yellow finish

Signs the shock needs replacing

A worn shock absorber usually shows up as a bouncy ride, extra body motion after bumps, or oil streaking down the body. On a pickup that carries loads or tows, the rear dampers do much of the work of controlling the axle, so a tired shock can make the whole rear end feel loose. Look over each corner of the truck and press down hard; a good shock settles after one or two rebounds.

When replacing a rear shock, check the leaf spring mounts, bushings and bolts at the same time. Worn bushings can make a new damper feel less controlled than expected. Replacing shocks in pairs keeps the rear end balanced. Because monotube shocks are pressurized, keep heat and sharp tools away from the body during removal, and take the old unit to a shop that handles gas-charged parts.

  • Oil seepage on the shock body
  • Extra bounce after speed bumps
  • Uneven or cupped tire wear
  • Loose or cracked rubber bushings

Specifications

Brand Bilstein
Part number 24-015875
Former part number BILF4-B46-1477-H1
UPC 651860643939
Series B6 Series
Position Rear
Size 46mm
Duty rating Heavy Duty
Construction Monotube
Finish Yellow
Gas charge Gas charged
Fitment type Direct fit
Lift or drop 0 in.

Vehicle fitment

Eleven entries are listed: 1973–1986 Chevrolet C20 (Cheyenne, Custom, Custom Deluxe, Deluxe, Pickup Base, Scottsdale, Silverado); 1975–1986 Chevrolet C30 (Cheyenne, Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado); 1987–1988 Chevrolet R20 (Cheyenne, Custom Deluxe, Scottsdale, Silverado); 1989 Chevrolet R2500 (Cheyenne, Scottsdale, Silverado); 1987–1988 Chevrolet R30 (Cheyenne, Custom Deluxe, Scottsdale, Silverado); 1975–1978 GMC C25 (Base, High Sierra, Sierra Classic, Sierra Grande); 1979–1986 GMC C2500 (Base, High Sierra, Sierra Classic, Sierra Grande); 1975–1978 GMC C35 (Base, High Sierra, Sierra Classic, Sierra Grande); 1973–1974 GMC C35/C3500 (Pickup Base); 1979–1986 GMC C3500 (Base, High Sierra, Sierra Classic, Sierra Grande); and 1987–1988 GMC R3500 (Base, High Sierra, Sierra Classic).

Pickups outside these entries are not covered by this list, and no year after 1989 appears in it. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Heat and cutting tools can damage a pressurized gas-charged body, so keep them away from the shock during mounting.

What’s included

One rear 46mm B6 Series shock absorber, part number 24-015875. Check the package contents against your installation before starting.

SKU: BIL24-015875 Category:

Specification

Shipping weight 4.63 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet C201973–1986Cheyenne, Custom, Custom Deluxe, Deluxe, Pickup Base, Scottsdale, Silverado
Chevrolet C301975–1986Cheyenne, Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado
Chevrolet R201987–1988Cheyenne, Custom Deluxe, Scottsdale, Silverado
Chevrolet R25001989Cheyenne, Scottsdale, Silverado
Chevrolet R301987–1988Cheyenne, Custom Deluxe, Scottsdale, Silverado
GMC C251975–1978Base, High Sierra, Sierra Classic, Sierra Grande
GMC C25001979–1986Base, High Sierra, Sierra Classic, Sierra Grande
GMC C351975–1978Base, High Sierra, Sierra Classic, Sierra Grande
GMC C35/C35001973–1974Pickup Base
GMC C35001979–1986Base, High Sierra, Sierra Classic, Sierra Grande
GMC R35001987–1988Base, High Sierra, Sierra Classic

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 24-015875 fit a 1985 Chevrolet C30?

Yes. It fits the 1975–1986 Chevrolet C30 in the Cheyenne, Custom, Custom Deluxe, Deluxe, Scottsdale and Silverado trims. Confirm fit for your vehicle's year, model and trim before ordering.

Does it fit a 1990 Chevrolet pickup?

The last year on the list is 1989 for the Chevrolet R2500, so 1990 models are not covered. Check the fitment entries before choosing this shock.

Is 24-015875 heavy duty and what series is it?

Yes. The product is labelled Heavy Duty and belongs to Bilstein's B6 Series. It is a 46mm rear monotube gas-charged shock with a yellow finish, and it is a direct fit.

What is the former part number for 24-015875?

The earlier number was BILF4-B46-1477-H1. The current Bilstein part number is 24-015875, and its UPC is 651860643939 for this rear shock.

How can I tell if a rear shock needs replacing?

Look for oil leaking down the shock body, a rough or bouncy ride, and body motion that continues after a bump. Bounce test each corner of the truck and watch whether it settles quickly. If several signs show up together, replace the shocks in pairs so both sides damp the same way.

Should I replace shock absorbers in pairs?

Yes, replacing both rear shocks together keeps damping even from side to side. A new shock paired with a worn one can pull the truck toward the weaker side and cause uneven handling. Check the mounting bushings at the same time so the new shock is not working against loose hardware.
