Overview

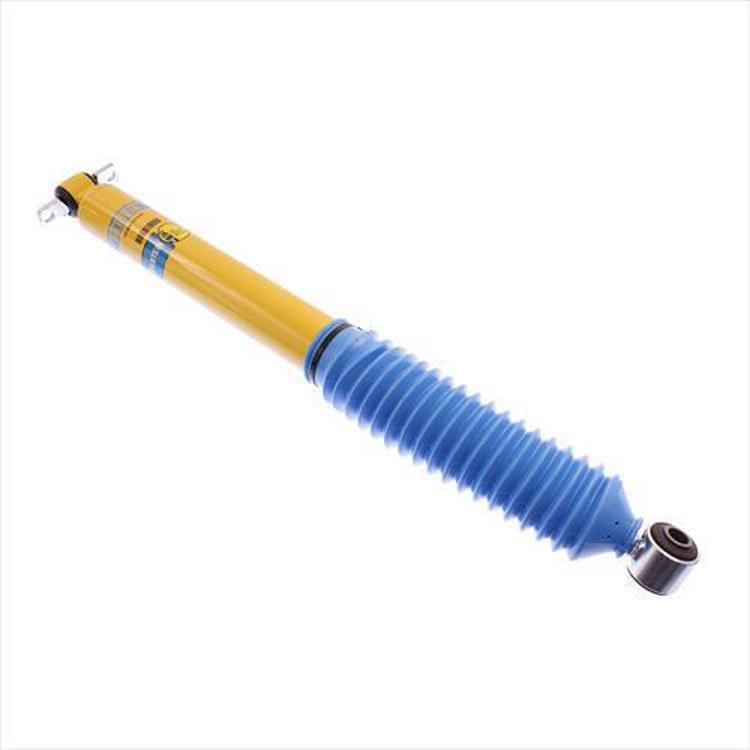

The Bilstein 24-014137 is a rear 46mm monotube gas-charged shock absorber in the 4600 Series, finished in yellow. It is a direct fit replacement for the 1983–2005 Chevrolet Blazer, GMC Jimmy, GMC Typhoon and Oldsmobile Bravada models.
Monotube construction keeps the damper oil and gas charge in one tube, with a dividing piston between them. The piston lets the oil expand as heat builds, which limits aeration and loss of viscosity, so the shock keeps its full damping as temperatures rise. Heat moves from the oil through the outer wall of the body, which helps it dissipate more efficiently.
Key features
- Gas-charged monotube body in a 46mm size
- Dividing piston allows the oil to expand as it heats
- Heat moves through the shock body to help keep damping steady
- Piston head tunes compression and rebound damping independently
- Extruded tube with tight peak-to-valley tolerance and consistent wall thickness
- Rear position, 0 in. lift/drop, yellow finish
Monotube shock design
A monotube shock keeps the oil and gas in one pressure tube, separated by a dividing piston. That layout lets the damper run cooler at the body and keeps the oil from foaming when it heats up. Monotube shocks are often chosen for trucks and SUVs that see steady use on rough roads, since consistent damping helps with control.
Because the gas charge is under pressure, the body should never be heated, drilled or cut. When the old rear shock comes off, check the bushings and spring seats, and replace worn parts at the same time. Rear shocks carry much of the rear body’s load, so inspect the mounts after each season of use.
- Never heat or cut a gas-charged body
- Check upper and lower bushings
- Inspect spring seats and rubber stops
- Replace shocks in pairs on the same axle
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-014137 |
| UPC | 651860449678 |
| Former part numbers | BILF4-B46-1413-H0, BILF4-B46-1413-H1 |
| Series | 4600 Series |
| Position | Rear |
| Size | 46mm |
| Construction | Monotube |
| Gas charge | Gas charged |
| Lift or drop | 0 in. |
| Fitment type | Direct fit |
| Finish | Yellow |
Vehicle fitment
This shock fits six model and trim combinations: 1995–2005 Chevrolet Blazer (Base, LS, LT, Trailblazer, ZR2); 1983–1994 Chevrolet S10 Blazer (Base, High Country, LT, Sport, Tahoe, Tahoe LT); 1992–2001 GMC Jimmy (Base, Diamond Edition, Envoy, SL, SLE, SLS, SLT); 1983–1991 GMC S15 Jimmy (Base, Gypsy, High Sierra, SLE, SLS, SLT, Sierra Classic, Timberline); 1992–1993 GMC Typhoon (Base); and 1996–2001 Oldsmobile Bravada (Base).
Chevrolet Blazer model years after 2005, GMC Jimmy and Oldsmobile Bravada years after 2001, and Typhoon years outside 1992 to 1993 fall outside this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The body holds a gas charge under pressure, so keep heat, grinders and cutting tools away from the shock tube.
What’s included
One rear 46mm shock absorber, part number 24-014137. Mounting hardware and accessories are not part of this package, so check your installation needs first.
