Bilstein 5160 Series Remote Reservoir Shock Absorber – 25-304893

Bilstein

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear remote reservoir shock for 2020–2026 Jeep Gladiator
  • Built for a 3 to 4.5 in rear lifted height
  • Eyelet top and bottom mounts, 46mm body
  • Monotube reservoir with a 360 degree swivel banjo hose fitting

Description

Overview

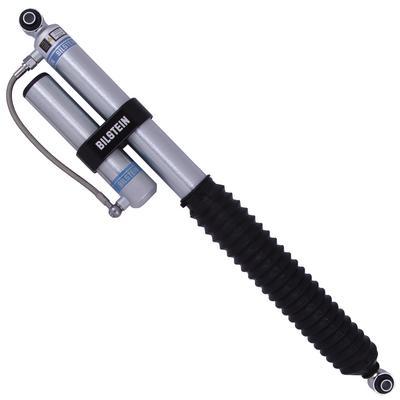

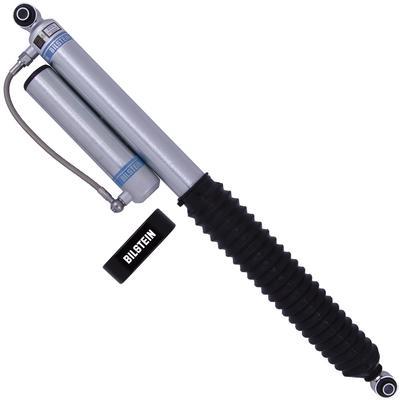

The Bilstein 5160 Series 25-304893 is a rear remote reservoir shock absorber for the 2020–2026 Jeep Gladiator. It is built for a rear lifted height of 3 to 4.5 inches and uses a separate reservoir that Bilstein says adds cooling capacity and wheel travel.

The shock has a 46mm body with eyelet mounts at both the top and bottom, and it is a monotube design. The valve settings are velocity sensitive and digressive and are tuned for each application. A 360 degree swivel banjo hose fitting on the shock is meant to give the reservoir a low profile install.

Because the lift is 3 to 4.5 inches, the reservoir and hose have to clear the body and any lift components on the truck. Check the hose route at full extension before you tighten the reservoir mount. Confirm the lift on your truck before ordering, since this shock is sized for that range.

Key features

  • Built for a 3 to 4.5 in rear lifted height
  • Remote reservoir with increased cooling capacity
  • Monotube design with velocity sensitive digressive valving
  • 46mm body with eyelet top and bottom mounts
  • 360 degree swivel banjo hose fitting

Lift height and reservoir clearance

Lifted Gladiators change the geometry of the rear suspension, so the reservoir sits in a different spot than on a stock truck. Before tightening the mount, cycle the suspension by hand and watch how the hose and reservoir move. Any contact with the frame, spare tire carrier or bodywork will wear the hose over time.

Rear shock life often depends on how the reservoir is positioned. A reservoir that rests against a moving part will rub through its finish, and the mounting bracket can crack from repeated flex. Plan the route once, keep slack in the hose without letting it sag, and recheck after any change to the lift or tires.

  • Cycle the suspension by hand before final torque
  • Use the hose clips that came with the mount
  • Recheck clearance after changing tires

Specifications

Brand Bilstein
Part number 25-304893
Shock series 5160 Series
Position Rear
Rear lifted height 3 to 4.5 in
Body diameter 46mm
Top mount Eyelet
Bottom mount Eyelet
Shock type Monotube reservoir
Hose fitting 360 degree swivel banjo
Fitment type Direct fit

Vehicle fitment

This rear remote reservoir shock fits the 2020 through 2026 Jeep Gladiator (JT).

Gladiator models from before 2020 and Jeep Wrangler models are not on this list. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One rear remote reservoir shock absorber.

Installation notes

Check the hose route and reservoir clearance across the 3 to 4.5 inch lift range before tightening the mounts, because a reservoir that is too close to the body can rub.

Fitment

VehicleYearsTrims
Jeep Gladiator2020–202680th Anniversary, Altitude, High Altitude, Launch Edition, Overland, Rubicon, Sport, Sport S, Willys, Willys Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 25-304893 fit a 2022 Jeep Gladiator?

Yes. This rear remote reservoir shock fits the 2020 to 2026 Jeep Gladiator, so a 2022 model is covered. Confirm the rear lift falls within the 3 to 4.5 inch range.

What lift height is this rear shock built for?

It is built for a rear lifted height of 3 to 4.5 inches. Measure the lift you have installed before ordering to be sure the shock matches it.

Is the reservoir connected to the shock by a hose?

Yes. The remote reservoir is a separate unit linked to the shock body by a hose, which is what gives the design its extra oil capacity and cooling.

Should other rear suspension parts be checked when fitting a reservoir shock?

Yes. Inspect the bushings, upper mounts and brake lines while the shock is out, since they are often serviced at the same time. A reservoir mount that sits out of position can change how the hose moves through its travel.

How often should the reservoir hose be checked?

Check it at each routine service and after any hard off-road use. Look for chafing, kinks and oil residue near the fittings, and retighten clamps as needed.
