Overview

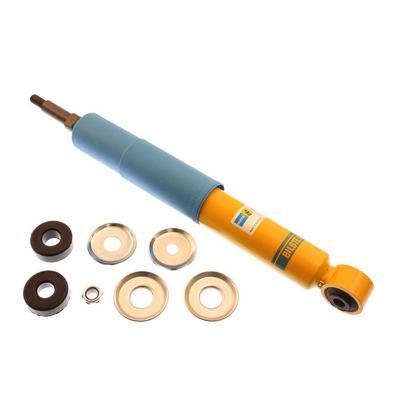

The Bilstein 4600 Series heavy duty monotube shock, part number BIL24-027397, is a gas charged front shock for full-size vehicles. Bilstein describes its 4600 series B6 heavy duty monotube shocks as suited to most full-size sedans, SUVs and trucks, with better handling and stability without sacrificing ride comfort.
The shock uses a monotube gas pressure design that carries heat from the oil out through the outer surface of the body. A dividing piston lets the oil expand as it heats, which limits foaming and thinning and keeps damping steady as temperatures rise.
The body is 46 mm, made of steel and finished in yellow. It fits 1998–2007 Toyota Land Cruiser Base models. Earlier part numbers for this shock are BILF4-BE5-2739-H0, BILF4-BE5-2739-H1, BILF4-BE5-2739-H3 and BILF4-BE5-2739-H4.
Key features
- Heavy duty B6 monotube gas pressure design
- 46 mm monotube body
- Gas charged
- Yellow finish and steel body
- Front position
- Dividing piston for stable oil volume as temperatures rise
- Seamless monotube tube for strength and heat transfer
- Separate compression and rebound tuning in the piston head
Front shock replacement tips
A front shock controls body motion over bumps and during braking and turns. Because it sits in a load path with the springs and steering components, a worn unit can change how the front end feels and wears tires unevenly. Fit both front shocks at the same time so the damping is matched left to right.
Monotube shocks keep their oil and gas in one tube, so heat has to move through the body. Check the shock after long descents or hard use for unusual warmth, and inspect the body for seepage. Make sure the mounting bushings and steering parts are sound before fitting, since a shock cannot correct a loose joint.
- Replace front shocks in pairs
- Inspect the body for oil seepage
- Check mounts and bushings before fitting
- Check tire wear after replacement
Specifications
| Brand | Bilstein |
|---|---|
| Part number | BIL24-027397 |
| Shock series | 4600 Series |
| Position | Front |
| Shock type | Monotube, gas charged |
| Body | 46 mm monotube, yellow, steel |
| Old part numbers | BILF4-BE5-2739-H0, BILF4-BE5-2739-H1, BILF4-BE5-2739-H3, BILF4-BE5-2739-H4 |
| Fitment | Direct fit |
Vehicle fitment
It fits 1998–2007 Toyota Land Cruiser models in the Base trim. Confirm fit for your vehicle’s year, model and trim before ordering.
The list does not include the Land Cruiser models outside those years, the Lexus LX450, or the Toyota trucks and SUVs of other generations. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Front shocks are normally replaced as a pair so both sides damp the same way. Check the length and mounts against your vehicle’s springs and steering components before installing.
What’s included
The product is one front monotube shock under part number BIL24-027397.
