Overview

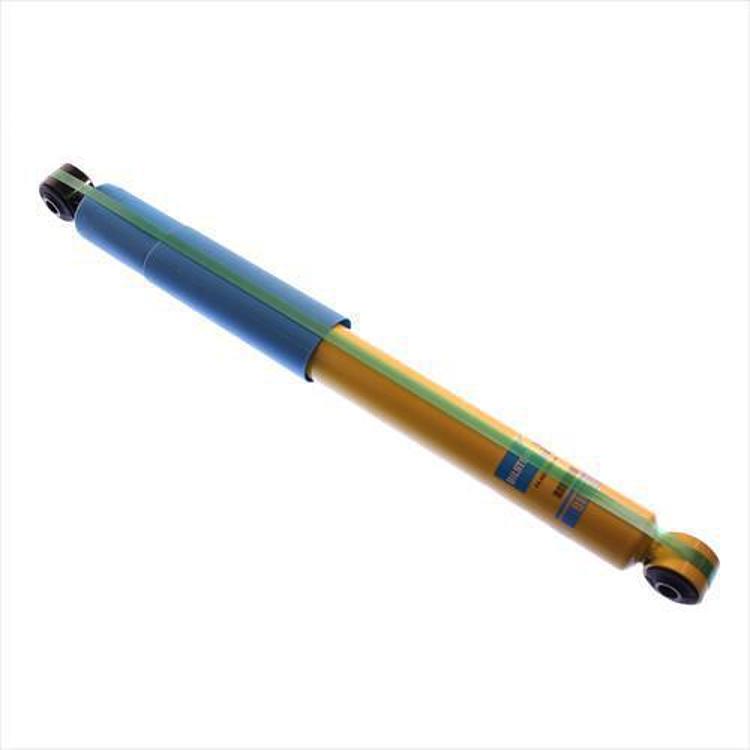

The Bilstein 24-188036 is a rear monotube gas charged shock absorber from the 4600 Series, sized with a 2 in body diameter and finished in yellow. It fits the 1994-2002 Dodge Ram 2500 Base and Dodge Ram 3500 Base.
In monotube construction, oil and gas share one tube with a floating dividing piston between them. The outer surface of the body carries heat away from the oil, and the piston gives the oil room to expand as it warms. That room helps prevent foaming and thinning, so damping holds steady when the shock runs hot.
Owners of these Ram trucks who are replacing a rear shock will want to match position, body size and the 4600 Series designation. Those details are set out in the specifications below, along with the boots that come with the shock.
Key features
- Fits the 1994-2002 Dodge Ram 2500 and Ram 3500 in Base trim
- Monotube gas charged body with a 2 in body diameter
- Dividing piston lets the oil expand as it heats
- Boots included with the shock
- Tube extruded to a tight peak-to-valley tolerance with even wall thickness
- Separate compression and rebound damping tuning at the piston head
- Fewer parts than twin tube designs
Replacing older Ram rear shocks
Shock absorbers on trucks from this era work hard, carrying the load of the bed and the rear axle over rough pavement and washboard roads. A worn rear shock often shows up first as bounce after a bump or as a rear end that feels floaty when the truck is loaded. Because the rear springs and shocks share the job, a shock that has lost damping can wear other suspension parts faster.
Before installing a replacement, check the old shock’s length and mount style against the new one, and look at the bump stops and spring perches for damage. Replacing rear shocks in pairs keeps the axle controlled evenly from side to side.
- Clean the mounting studs and bushings before fitting
- Check rear bump stops for cracking
- Inspect the spring perch for corrosion
- Tighten fasteners once the truck is back on the ground
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-188036 |
| UPC | 651860418551 |
| Shock series | 4600 Series |
| Position | Rear |
| Body diameter | 2 in |
| Shock type | Monotube, gas charged |
| Reservoir | No |
| Boots included | Yes |
| Finish | Yellow |
| Fitment type | Direct Fit |
| Lift height | 0 in. lift/drop |
Vehicle fitment
It fits the 1994-2002 Dodge Ram 2500 Base and 1994-2002 Dodge Ram 3500 Base. Only those Base trims are covered, so confirm your year, model and trim before ordering.
Trims and years beyond those above are outside this fit. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One rear shock absorber with boots. Check mounting hardware and bushings against your installation before starting.
