Overview

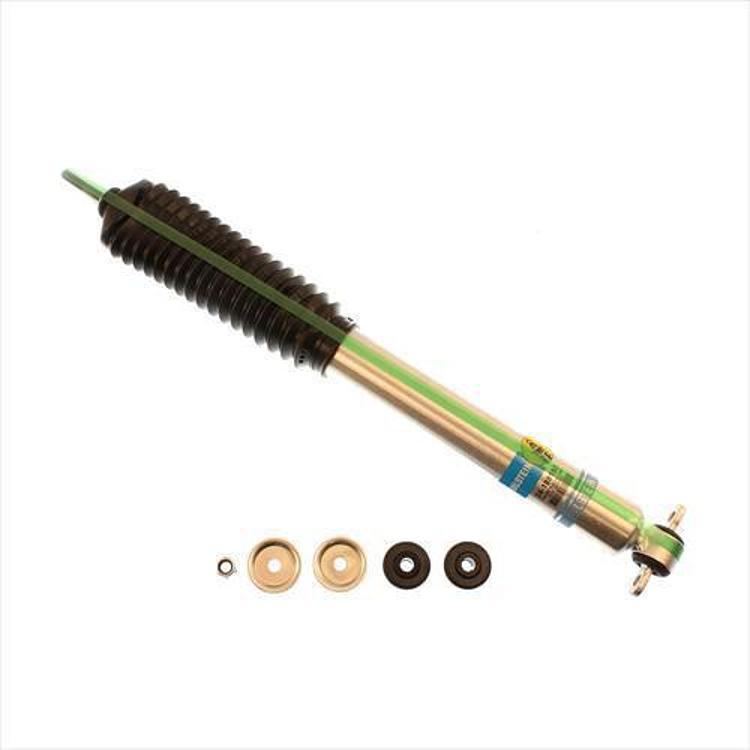

The Bilstein 24-188180 is a 5100 Series front shock absorber with a 46mm smooth body, a 14mm shaft, a bar pin lower mount and a stem upper mount. It is designed for lifted trucks, Jeeps and prerunners, with a 4 in. lift setting.
The mono tube gas pressure design uses self-adjusting deflecting disc valving and a high-flow piston that reduces harshness. The larger working piston area gives more exact damping, and the shock is built to control large-diameter tires. It is a non-coilover design with no reservoir.
Key features
- Mono tube gas pressure construction.
- Self-adjusting deflecting disc valving.
- High-flow piston that Bilstein says reduces harshness.
- Independent rebound and compression tuning.
- Larger working piston area for exact damping.
- Built for large-diameter tires
Lift kits and shock tuning
A shock tuned for a lifted truck has to handle a taller stance, longer travel and heavier tires. With a lift, the wheel moves through a different arc, so the shock’s angle and the bar pin mount influence how the damping feels. A stiffer valving setup helps control a heavier tire, but too much firmness can make a daily driven truck feel harsh on pavement.
When choosing a shock for a lift, consider the tire size you run, how much of the time the vehicle leaves pavement, and whether the steering and brake lines have room at full travel. Upgrades such as sway bar links and control arm bushings often get replaced at the same time, because they affect how the suspension moves through the same travel.
- Measure the lift height before ordering a shock
- Check brake hose length at full droop
- Inspect bar pin mounts for wear and binding
- Recheck alignment after any suspension change
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-188180 |
| UPC | 651860591278 |
| Shock series | 5100 Series |
| Position | Front |
| Collapsed length | 14.98 in. |
| Extended length | 24.63 in. |
| Travel length | 9.65 in. |
| Lower mount | Bar pin |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body, non-coilover |
| Internal design | Mono tube |
| Reservoir | No |
| Boot included | Yes |
| Finish | Zinc plated |
| Gas charge | Gas charged |
| Lift height | Designed for a 4 in. lift |
| Fitment type | Direct Fit |
Vehicle fitment
This shock is for lifted trucks, Jeeps and prerunners. Confirm compatibility with your lift kit and your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This shock is designed for specific lift kits that keep the stock mounting configuration, so confirm your lift kit is one of them. The setting is a 4 in. lift. Support the vehicle securely on stands during installation.
What’s included
A boot is included with the shock.
Not included: Hardware beyond the shock and boot should be checked against your installation before starting.
