Overview
The Bilstein 25-187878 is a 5165 Series reservoir shock absorber with 5/8 in eye mounts at both ends. Its universal fit design suits custom lifted trucks and SUVs in general, so confirm fit for your year, model and trim before ordering.
The remote reservoir adds shock oil volume, and the floating dividing piston sits in the reservoir to allow more wheel travel. The body is a 46mm inside diameter smooth design with a mono tube, a 14mm shaft, and measurements of 11.07 in collapsed, 17.31 in extended and 6.24 in travel. Confirm those lengths against your suspension before choosing this shock, since universal fit wording does not guarantee the right mounting spacing for every build.
Key features
- Remote reservoir increasing shock oil capacity for heat dissipation.
- Digressive valving that Bilstein says delivers immediate full damping.
- Floating piston inside the reservoir for extra wheel travel.
- Mono tube design with a 46mm ID smooth body.
- Zinc plated finish under Bilstein’s Triple-C Technology.
- 1/2 in sleeves and a reservoir mounting kit included.
Universal fit and mounting spacing
A universal fit shock is built to cover a range of trucks, but mounting spacing varies from build to build. Lift height, axle position and bushing type all change the distance between the shock’s mounts. Measure the existing shock eye-to-eye and mount-to-mount before buying, then compare those measurements with the new unit.
Sleeves and eye adapters are the usual points of trouble with universal parts. Check that the sleeves seat fully and that the bolts clamp without binding. Inspect the eyes for cracks or wear after the first few hundred miles of hard driving, since shock loads concentrate at the mounts.
- Measure eye-to-eye length on the old shock
- Check sleeve seating before final tightening
- Inspect eyes after the first drives
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-187878 |
| UPC | 651860664583 |
| Series | 5165 Series |
| Fitment type | Universal Fit |
| Collapsed length | 11.07 in |
| Extended length | 17.31 in |
| Travel length | 6.24 in |
| Compression | 840 |
| Rebound | 3695 |
| Lower mount | 5/8 in eye |
| Upper mount | 5/8 in eye |
| Shaft diameter | 14mm |
| Reservoir | Yes |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Finish | Zinc plated |
| Boot included | No |
| Mounting parts included | 1/2 in sleeves and a reservoir mounting kit |
| Hydraulic / gas charged | Gas charged |
Vehicle fitment
No vehicles are named for this part. Bilstein’s universal fit description refers to custom lifted trucks and SUVs in general, which does not confirm a match for any particular year, make, model or trim.
Universal fit does not mean every truck will have the right length or mounting spacing. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check how the 1/2 in sleeves fit the 5/8 in eye ends before installing. Keep the reservoir well clear of frame members and tires, and check that clearance after installation.
What’s included

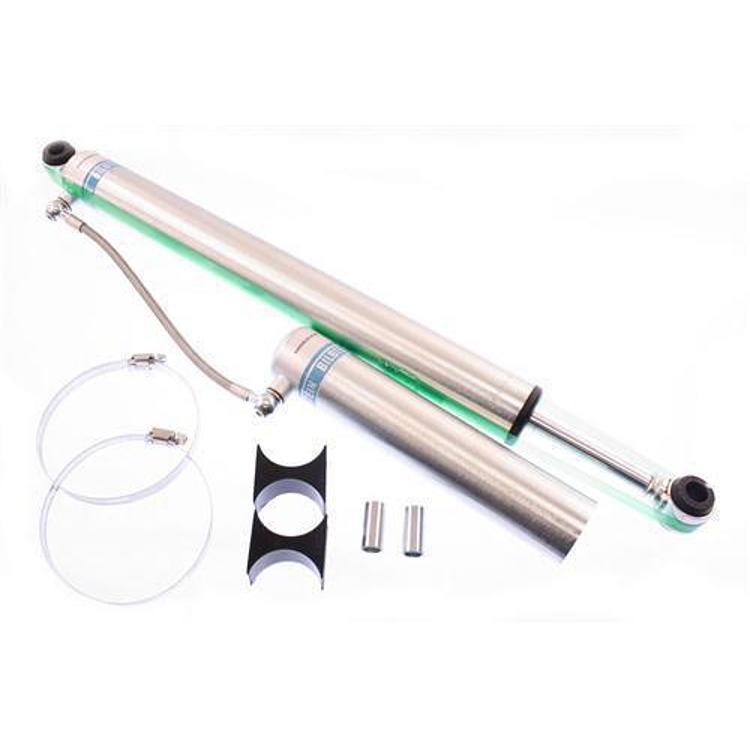

Reservoir mounting kit, 1/2 in sleeves and detailed instructions.
Not included: Boot.
