Overview

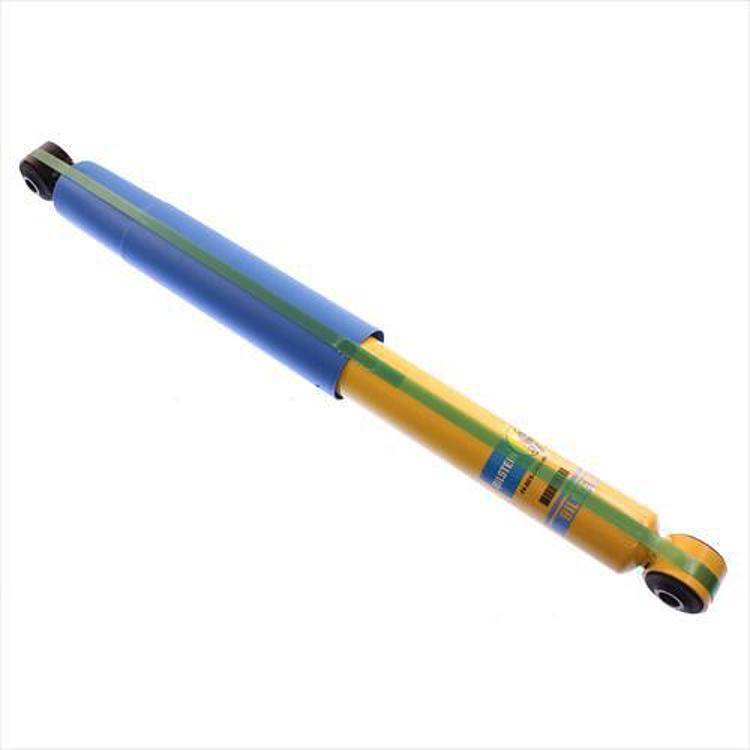

The Bilstein 4600 Series rear shock absorber, part number 24-186094, is a gas-charged monotube damper with a 2 in body diameter, a yellow finish and boots included. It is a rear-position shock for the owner who wants a monotube damper from Bilstein’s 4600 line. The part number is the identifier to use when comparing it with other 4600 Series shocks.
Bilstein’s own description starts with heat. In a monotube gas-charged design, the oil’s heat moves through the shock body to its outer surface, where it can dissipate more efficiently than in a shock with a separate reserve tube. A dividing piston inside the tube lets the oil expand as it warms, which the company says prevents foaming and loss of viscosity so the shock keeps full damping as temperatures rise. The tube is made by an extrusion process that Bilstein describes as producing a tight peak-to-valley tolerance and consistent wall thickness. Because the shock is a monotube design, the dividing piston separates the gas and oil, and the body therefore serves as the heat path described above. Shoppers comparing 4600 Series rear units can use the part number, the 2 in body and the monotube type to tell them apart.
Key features
- Gas-charged monotube body that moves oil heat to the shock’s outer surface
- Dividing piston that lets the oil expand, limiting aeration and viscosity loss
- Piston head that tunes compression and rebound damping separately
- Seamless monotube tube made by extrusion for consistent wall thickness
- Fewer parts than many conventional twin-tube and road-sensing designs.
- Yellow finish with boots included
Rear shock replacement basics
The rear shock controls how the axle moves as the springs compress and rebound. Good damping keeps tires in contact with the ground over washboard and rough pavement. Because the rear often carries more load than the front on pickups, rear shocks tend to wear faster under heavy use.
When replacing a rear shock, check the bushings, mounting hardware and spring seat, since a worn mount can cause the new unit to rattle or bind. Keep the boot undamaged and avoid striking the shock body during removal. Replacing a worn shock restores control, but it does not correct a broken spring or a collapsed bump stop.
- Check bushings and spring seats
- Avoid impact to the shock body
- Inspect bump stops for damage
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-186094 |
| UPC | 651860558080 |
| Shock series | 4600 Series |
| Position | Rear |
| Type | Monotube |
| Charge | Gas charged |
| Body diameter | 2 in |
| Finish | Yellow |
| Reservoir | No |
| Boots | Included |
| Fitment type | Direct fit |
| Lift/drop | 0 in. |
Vehicle fitment
Vehicle fit is not defined for part number 24-186094. Confirm fit for your vehicle’s year, model and trim before ordering, and check that the rear position matches your truck.
What’s included
Boots are included with the shock absorber.
