Overview

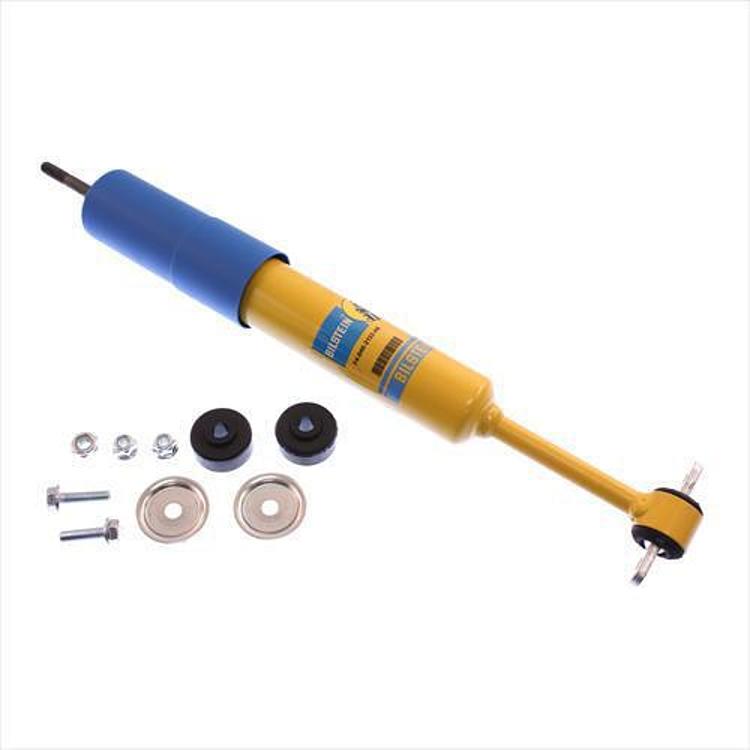

Bilstein’s 4600 Series front shock absorber, part number 24-021333, is a gas-charged monotube design fitted to the 1995–2001 Ford Explorer, the 1995–2001 Explorer Sport in Base trim, the 2001–2005 Explorer Sport Trac and the 1997–2000 Mercury Mountaineer in Base trim. It is a yellow shock with a 2 in body diameter and boots included.
The monotube body is built so that heat from the oil passes to the outer shock tube and dissipates there. A dividing piston lets the oil expand as it heats, which Bilstein says prevents aeration and viscosity loss so the shock keeps full damping as temperatures rise. The stated lift range is w/0 in. Lift/Drop.
Key features
- Gas-charged monotube body for heat transfer from the oil to the outer tube
- Dividing piston that allows oil expansion, reducing foaming and viscosity loss
- Extrusion-formed tube aimed at tight peak-to-valley tolerance and even wall thickness
- Piston head with separately tuned compression and rebound damping
- Boots included, with a streamlined design and fewer parts than conventional twin tube shocks.
- Front position with direct fit
Front shock on Explorer trucks
The front shock on an Explorer-type SUV carries steering loads together with suspension damping, so its condition shows up in how the front end settles and tracks. A monotube gas-charged shock keeps damping more even as it heats on long descents, which helps during repeated bumps or towing. Front shocks handle steering and braking forces alongside bumps, so worn units are easy to notice.
When replacing a front shock, match the upper and lower mounts before removing the old unit and inspect the bushings and bump stop. Swapping both fronts together keeps the ride even from side to side. After installation, an alignment check is worth doing if the old mounts were worn. Watch for oil on the body, clunking over bumps or uneven front tire wear as signs of wear.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-021333 |
| UPC | 651860604954 |
| Series | 4600 Series |
| Position | Front |
| Body diameter | 2 in |
| Type | Monotube |
| Hydraulic / gas charged | Gas charged |
| Reservoir | No |
| Boots included | Yes |
| Finish | Yellow |
| Lift height | w/0 in. Lift/Drop |
| Fitment type | Direct Fit |
Vehicle fitment
The front shock fits the 1995–2001 Ford Explorer in Eddie Bauer, Expedition, Limited, Postal, XL, XL Fleet, XLS and XLT trims, the 1995–2001 Ford Explorer Sport in Base trim, the 2001–2005 Ford Explorer Sport Trac in Adrenalin, Base, XL, XLS and XLT trims, and the 1997–2000 Mercury Mountaineer in Base trim.
Years outside these ranges, including 2006 and later Explorer models and 2001 and later Mountaineer models, are not shown. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Front shocks mount differently from rear shocks on these trucks, so confirm the upper and lower mounts match before removing the old unit. Because the front end affects steering and alignment, ask for an alignment check if the mounts were worn or damaged.
What’s included
One front shock absorber with boots included.
Not included: Mounting hardware and other front suspension parts; check your kit before starting.
