Overview

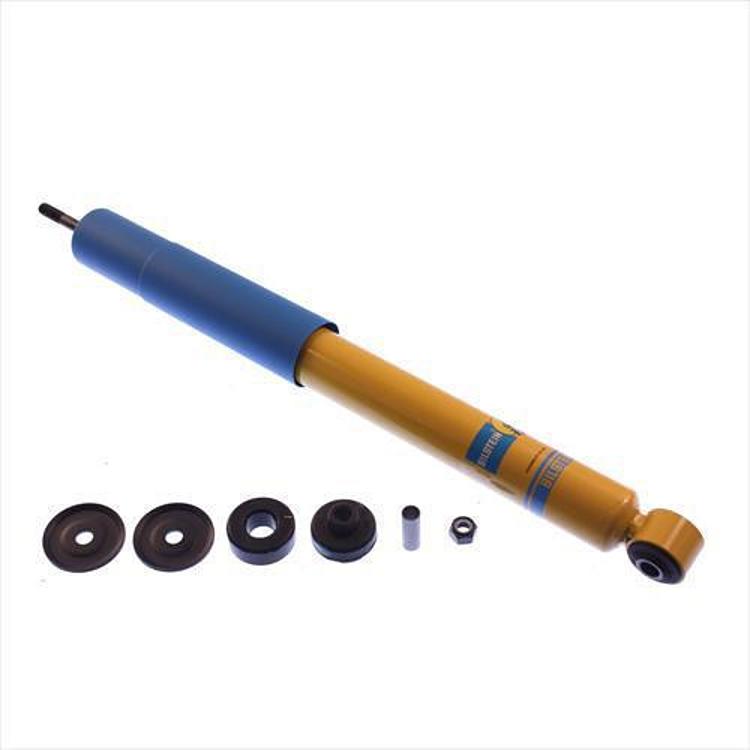

The Bilstein 24-186070 is a front-position 4600 Series monotube shock absorber with a 2 in. body diameter, a yellow finish, boots included and no external reservoir. It is a gas-charged shock, so it suits anyone replacing a front shock on a vehicle that uses this 4600 Series design. Compare the part number and front position against your current shock before ordering.
Gas-charged monotube construction moves heat from the oil into the outer surface of the shock body, where it dissipates. A dividing piston lets the oil expand as temperatures rise, limiting aeration (foaming) and viscosity loss, so the shock keeps full damping as it warms. The single-tube body has fewer parts than most conventional twin tube designs.
The tube is formed with a special extrusion method that holds a tight peak-to-valley tolerance and consistent wall thickness. The piston head lets compression and rebound damping be tuned independently, which Bilstein says provides optimum ride comfort and performance without compromise.
Key features
- Gas-charged monotube design that moves heat from the oil to the outer shock body.
- Dividing piston allows the oil to expand as temperatures rise, limiting foaming and viscosity loss.
- Extrusion-formed tube with tight peak-to-valley tolerance and consistent wall thickness.
- Piston head provides independent compression and rebound damping tuning.
- Seamless monotube body designed for tube strength and heat dissipation.
- Fewer parts than most conventional twin tube designs.
- Boots included with the shock absorber.
Front shock replacement tips
The front shocks control steering stability and help the tires follow bumps without skipping. A worn front shock often shows up as nose dive when braking, a wandering feel at highway speed, or a noisy clunk over bumps. Because the front suspension shares load with the steering, check the tie rods and ball joints if the vehicle feels loose after the swap.
Gas-charged monotube construction holds pressure, so keep the unit upright during storage and avoid heat when cleaning. Make sure the boot is seated correctly on the shaft before installing, since a misplaced boot can trap grit and wear the seal. Torque the mounting bolts to the value in your service manual once the vehicle is on the ground.
- Inspect tie rods and ball joints when shocks are changed
- Seat the boot correctly before installing
- Check front alignment after replacement
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-186070 |
| UPC | 651860558967 |
| Shock series | 4600 Series |
| Position | Front |
| Type | Monotube |
| Body diameter | 2 in. |
| Finish | Yellow |
| Reservoir | No |
| Boots included | Yes |
| Hydraulic / gas charged | Gas charged |
| Lift / drop | w/0 in. Lift/Drop |
Vehicle fitment
Confirm fit for your vehicle’s year, make, model and trim before ordering. Check the 2 in. body diameter and front position against your current shock.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Boots come with the shock. Check the package contents against your original shock before starting the replacement, since separate mounting parts may be needed.
