Overview

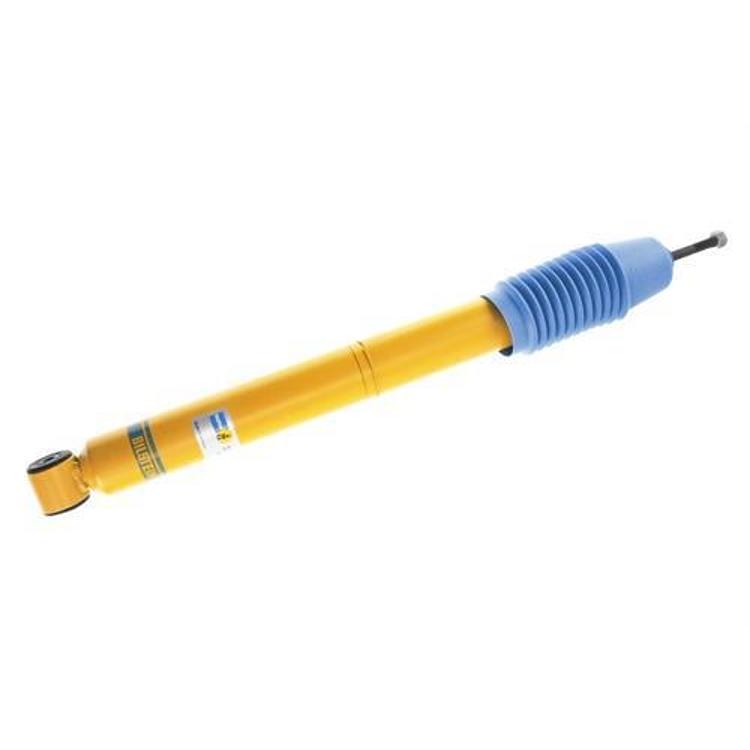

The Bilstein 24-023399 is a 4600 Series monotube gas charged shock absorber for the 1997–2001 Honda CR-V in the EX, LX and SE trims. It is a direct fit with a 2 in body diameter, a yellow finish and boots included, and it has no reservoir.
The shock uses Bilstein’s patented monotube body. Heat that builds in the oil moves to the outer surface of the body and dissipates there, which helps the damping hold steady over long stretches of driving. A dividing piston lets the oil expand as it warms, so the fluid resists foaming and keeps its viscosity. The tube is made with a special extrusion method that gives a tight peak-to-valley tolerance and consistent wall thickness, and the seamless construction is intended to resist strain and extend service life. Compression and rebound damping can be tuned independently in the piston head, which Bilstein describes as a comfort and performance benefit with fewer parts than twin tube designs.
Key features
- Patented monotube body with gas charged design
- 2 in body diameter in the 4600 Series
- Dividing piston lets the oil expand without aerating
- Extruded seamless tube with tight wall tolerances
- Separate compression and rebound damping adjustment in the piston head
- Boots included, no reservoir
Choosing a replacement shock
The rear shocks on a small SUV like the CR-V control body motion over bumps, during cornering and under braking. A shock that has lost damping lets the body bounce, which can affect tire contact and stopping distance. Because the oil inside a monotube warms with use, a shock that stays cool and keeps its gas charge will hold damping better over long drives.
When choosing a replacement, compare the body diameter, mounting style and overall length with the unit coming off. Rear shocks are commonly changed alongside bushings, mounts and springs, since worn parts can limit how well a new shock performs. Check the mounting hardware and boots for cracks before installing. A shock with a separate reservoir would not be interchangeable with this monotube design.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-023399 |
| UPC | 651860406220 |
| Shock series | 4600 Series |
| Shock type | Monotube, gas charged |
| Body diameter | 2 in |
| Finish | Yellow |
| Reservoir | No |
| Boots included | Yes |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit for the 1997–2001 Honda CR-V in the EX, LX and SE trims.
Model years after 2001 are not covered, and other Honda models are not included. Confirm fit for your vehicle’s year, model and trim before ordering.
What’s included
One shock absorber with boots. No reservoir and no mounting hardware are part of this part number.
