Overview

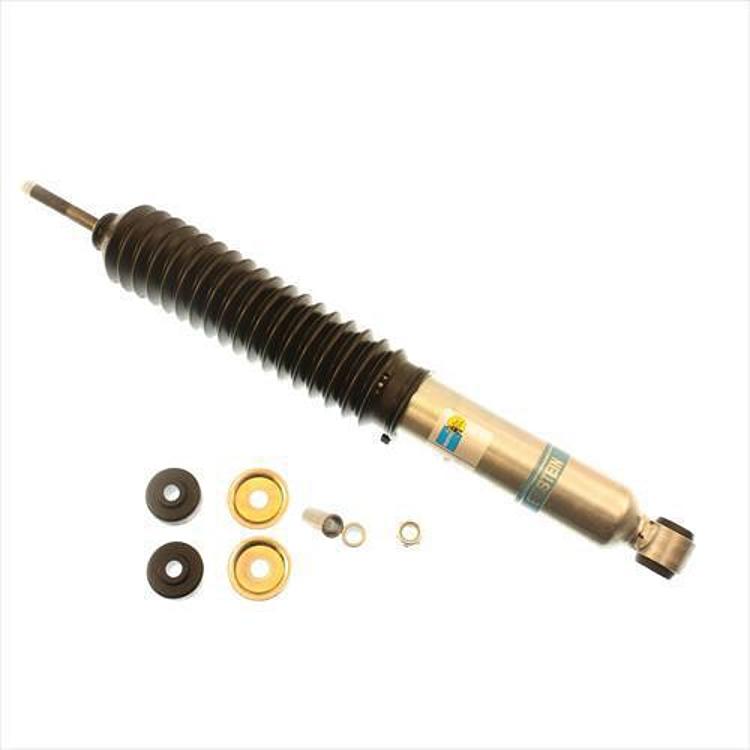

The Bilstein 5100 Series shock absorber, part number 24-185493, is a monotube gas pressure shock for the 1966-1973 Ford Bronco, 1984-1990 Bronco II, 1991-1994 Explorer and Explorer Sport, and 1983-1997 Ranger. It has a 46mm ID smooth body and is not a coilover.
The 5100 Series is built for lifted trucks, Jeeps and prerunners, with a single-tube high gas pressure design. It has self-adjusting deflecting disc valving, a high-flow piston, independent rebound and compression tuning, and a larger working piston area.
The shock has a collapsed length of 12.17 inches, an extended length of 18.98 inches and a travel length of 6.81 inches. It uses a 14mm shaft, an eye lower mount (16mm) and a stem upper mount, and includes a boot. It is designed for specific lift kits that use the stock OEM mounting configuration.
Key features
- Monotube gas pressure construction
- Collapsed length 12.17 inches; extended 18.98 inches; travel 6.81 inches
- 14mm shaft; 46mm ID smooth body (non-coilover)
- Lower eye mount 16mm; upper stem mount
- Zinc plated finish; boot included
- No reservoir
Before you install
Shocks on lifted trucks work harder because the suspension travels further and the ride height changes the angle of the shock. A monotube gas design like the 5100 Series is often chosen for that work because the high gas pressure helps keep damping steady during repeated compression. Match the shock’s collapsed and extended lengths to the lift height before buying, since a length that is too short will bottom out and one that is too long can bind.
Once the old shock is off, inspect the eye and stem mounts for cracks or elongated holes, and check the shaft for scoring or leaking seals. Worn bushings change how the shock moves, so replacing them while the shock is out is a sensible step. After installation, drive slowly over bumps and watch for rubbing against the spring or brake lines.
- Measure the old shock before ordering
- Check for an oil film on the shaft as a sign of seal wear
- Replace bushings that show cracks or heavy compression
- Confirm full-travel clearance with the tires turned
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-185493 |
| UPC | 651860453583 |
| Part type | Shock absorber, 5100 Series |
| Internal design | Monotube, gas charged |
| Body design | 46mm ID smooth body (non-coilover) |
| Collapsed length | 12.17 inches |
| Extended length | 18.98 inches |
| Travel length | 6.81 inches |
| Shaft diameter | 14mm |
| Lower mount | Eye, 16mm |
| Upper mount | Stem |
| Reservoir | No |
| Finish | Zinc plated |
| Boot | Included |
| Fit type | Direct fit |
Vehicle fitment
The manufacturer fitment list for the Bilstein 24-185493 includes:
- 1966–1973 Ford Bronco (Base, Roadster, Wagon)
- 1984–1990 Ford Bronco II (Base, Eddie Bauer, XL, XL Sport, XLS, XLT, XLT Plus)
- 1991–1994 Ford Explorer (Eddie Bauer, Limited, XL, XLT)
- 1991–1994 Ford Explorer Sport
- 1983–1997 Ford Ranger (Base, Custom, GT, S, S Plus, STX, Splash, Sport, XL, XL Sport, XLS, XLT)
Confirm front or rear axle placement for your vehicle before ordering. The fit covers the Ford models above only. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Shocks are straightforward to swap one at a time, which keeps the axle supported by its neighbor. Support the vehicle on jack stands before removing the old shock.
Fit the new shock with the bushings seated, and tighten the mounting bolts to the correct torque with the weight on the suspension.
Re-check the bolts after a short drive and confirm the shock does not rub or bottom out at full travel.
What’s included
One 5100 Series shock absorber with boot.
Not included: Mounting hardware and bushings may not be in the package, so check the package contents against your installation before starting.
