Bilstein 4600 Series Shock Absorber – 24-185066

Bilstein

Shop Toyota Tacoma Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

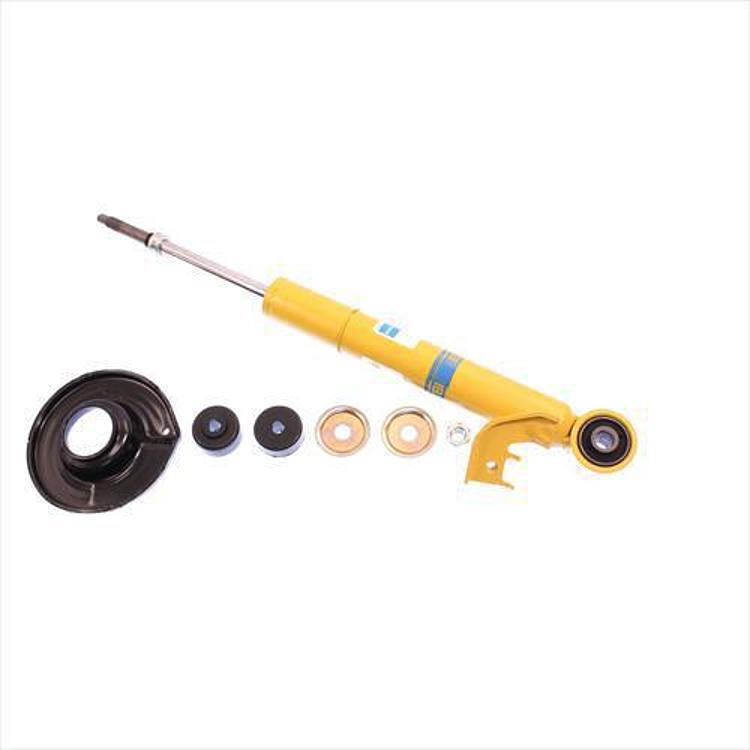

  • Front right Bilstein 4600 Series gas charged monotube shock absorber
  • Fits the 2005–2015 Toyota Tacoma (Base)
  • Part number 24-185066, UPC 651860562179
  • 2 in body diameter, yellow finish, 0 in. lift/drop
  • Boots included, no reservoir

Description

Overview

The Bilstein 24-185066 is a front right 4600 Series gas charged monotube shock absorber with a 2 in body diameter and yellow finish. It fits the 2005–2015 Toyota Tacoma in the Base trim, and it is rated for 0 in. lift/drop, which is stock height.

Heat is the main factor that changes how consistently a shock damps, and this model handles it through a gas charged monotube body. Heat moves from the oil through the tube wall to the outside of the shock, where it is released. The dividing piston gives the oil room to expand as it warms, which stops the oil from foaming and losing viscosity so the shock keeps its full damping force. The extruded tube holds a tight peak-to-valley tolerance, and the piston head lets compression and rebound be tuned independently with fewer parts than most twin tube designs.

Key features

  • Monotube gas charged construction for heat release through the shock body
  • Dividing piston accommodates oil expansion as temperatures rise
  • Extruded tube with tight peak-to-valley tolerance and even wall thickness
  • Independent compression and rebound damping tuning through the piston head
  • Simpler build with fewer parts than most twin tube shocks
  • Boots included

Right front corner notes

The front right shock works with the spring and the steering to control how the truck settles after bumps and under braking. Uneven wear, a bouncy corner or fluid on the body are common signs that it needs attention. A monotube gas charged design keeps damping steadier as the oil heats, which helps when the truck is driven hard on rough roads.

Because the body is pressurized, keep heat sources away from the tube and do not cut or puncture it. Check the mounting bushings and the boot when the shock is off, since a torn boot lets grit reach the shaft. If only one side is worn, replacing the matching left unit at the same time keeps the front balanced.

  • Inspect the right front bushings
  • Check the boot for tears
  • Look for oil on the body
  • Match the left side when wear is uneven

Specifications

Brand Bilstein
Part number 24-185066
UPC 651860562179
Series 4600 Series
Position Front right
Design Monotube
Charge Gas charged
Body diameter 2 in
Finish Yellow
Reservoir No
Boots included Yes
Lift/drop 0 in.

Vehicle fitment

The manufacturer fitment list places this front right shock on the 2005–2015 Toyota Tacoma (Base).

Tacoma years before 2005 or after 2015 and other Toyota models are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the body is gas pressurized, keep welding and other heat sources away from the tube, and do not cut or puncture it. Install on the front right corner only.

What’s included

Boots are included, and mounting hardware should be sorted before installing the shock.

SKU: BIL24-185066 Category:

Specification

Shipping weight 4.95 lbs
Package dimensions 26.80 × 4.20 × 4.20 in
brands

Fitment

VehicleYearsTrims
Toyota Tacoma2005–2015Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 24-185066 fit a 2005 Toyota Tacoma?

Yes. It fits the 2005–2015 Toyota Tacoma in the Base trim, which covers 2005 model year vehicles. Confirm your trim and position before ordering.

Is this the right-side front shock?

Yes. It is a front right shock, so it is intended for the right front corner of a Tacoma in the Base trim. Confirm the position on your truck before fitting.

What lift or drop is this shock rated for?

It is rated for 0 in. lift/drop, which means it is a stock-height replacement. No other lift range is offered for this part number, so match it to a stock suspension height.

Does it have a reservoir?

No. The shock is a monotube design with no reservoir, and boots are included with the unit. Mounting hardware needs should be checked against your installation before you start the job.

What signs show a front shock is failing?

Common signs include fluid on the body, a bouncy ride after dips, and cupped tire wear along the front edges. Pulling or drift under braking can also point to uneven damping. Replace shocks in pairs when wear is uneven, and inspect the mounts at the same time.
