Overview

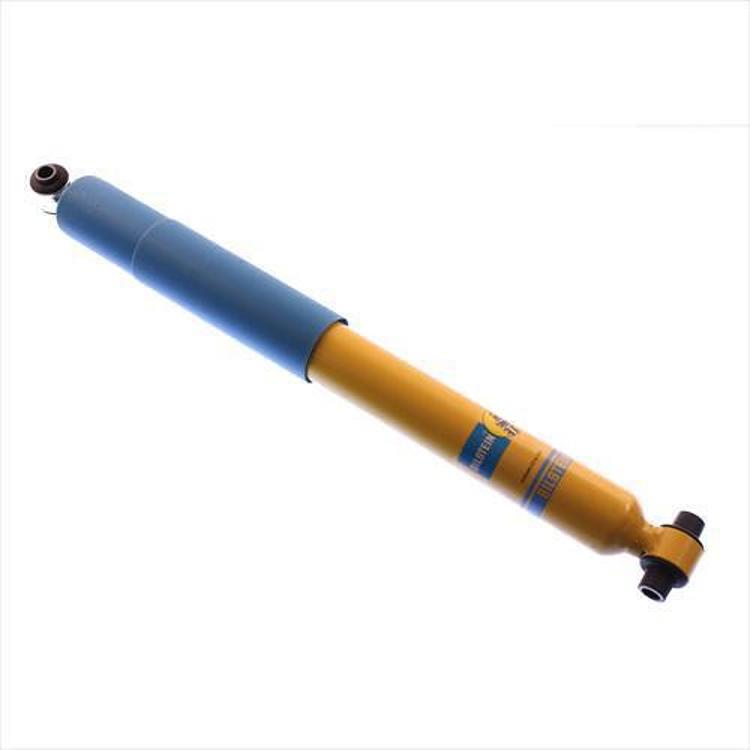

The Bilstein 24-103343 is a 4600 Series rear shock absorber with a 2 inch monotube body in a yellow finish. It fits the Buick Rainier, GMC Envoy, Oldsmobile Bravada and Saab 9-7x.
Bilstein says its patented monotube gas charged design allows the excessive heat from the oil to transfer to the outer surface of the shock body and dissipate more efficiently. The dividing piston lets the oil expand as heat builds, preventing aeration (foaming) and viscosity loss, so the shock maintains full damping characteristics as temperatures rise. This part is a standard-height shock for a vehicle with no lift or drop.
Key features
- Monotube gas charged design
- 2 inch body diameter
- Dividing piston lets oil expand and helps prevent foaming
- Seamless monotube tube made with a special extrusion method
- Piston head design allows independent tuning of compression and rebound damping
- Yellow finish
- Boots included
- No reservoir
Checking the rear suspension
Rear shocks control how the axle settles over bumps and under load, so worn units can cause bounce, rear sway or a tail that drops under cargo. Inspect the shock body for oil seepage and check the mounts for cracks or wear during routine service. Worn bushings at the mounts can mimic a bad shock, so inspect them too.
Rear shock choice affects how the truck handles with a load in the bed or behind a trailer hitch. Monotube designs are generally better at holding damping under sustained heat, which helps on long downhill grades. Keep the shocks matched on each side of the axle so the rear rides level and handling stays predictable.
- Check shock mounts and bushings for wear
- Look for oil on the shock body or boot
- Replace rear shocks in pairs
- Re-check tire wear after a shock change
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-103343 |
| UPC | 651860474731 |
| Product type | Shock absorber |
| Series | 4600 Series |
| Position | Rear |
| Type | Monotube, gas charged |
| Body diameter | 2 in |
| Finish | Yellow |
| Reservoir | No |
| Boots included | Yes |
| Lift height | With 0 in. lift/drop |
| Fitment type | Direct fit |
Vehicle fitment
Listed fitment: 2004-2007 Buick Rainier (CXL, CXL Plus), 2002-2009 GMC Envoy (Denali, SLE, SLT), 2002-2004 Oldsmobile Bravada (Base) and 2005-2009 Saab 9-7x (4.2i, 5.3i, Aero, Arc, Linear).
This is a rear shock for stock ride height, listed with 0 in. lift or drop. It does not cover other years of the vehicles named or other models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Suspension parts affect steering, braking and handling, so professional installation is recommended. Follow the installation steps, use the specified hardware and torque every fastener to the specified values. Re-check fasteners after the first few miles of driving, and have the alignment checked after any suspension work. Confirm brake line, driveshaft and tire clearance after installation, and check local rules on lift and vehicle modification. Ride height changes can affect headlight aim, so check it afterward and keep a record of the parts installed.
What’s included
One 4600 Series rear shock absorber with boots.
Not included: Mounting hardware and a second shock for the other side.
