Overview

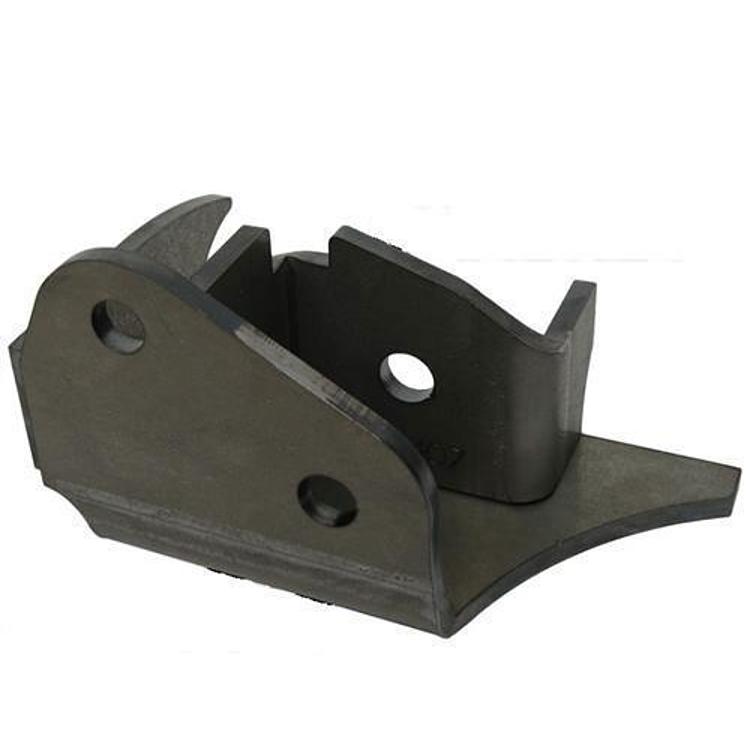

The Artec Industries JK4407 is a heavy-duty stock tracbar bracket that replaces the factory front tracbar bracket on Jeep Wrangler JK models with Dana 30 or Dana 44 front axles, for 2007-2018 Wrangler JK 2-door and 4-door vehicles. It is made from 1/4 inch mild steel and keeps the factory height, so it mounts where the original bracket did rather than raising the tracbar.
The bracket suits lifts that replace the tracbar and mount to the factory axle bracket, which is typical of an adjustable tracbar kit. The components are precision cut and formed. The bracket requires welding and general fabrication, and the JK4406 raised bracket is the option for anyone running a drag link flip.
Key features
- Replaces the factory front tracbar bracket on JK Dana 30 or Dana 44 axles
- Maintains the factory sway bar mount location
- Made from 1/4 inch mild steel with precision cut and formed components
- Designed for lifts that replace the tracbar and mount to the factory axle bracket
- Fits 2-door and 4-door Wrangler JK models
- Bare steel finish with no coating named
Tracbar brackets and steering geometry

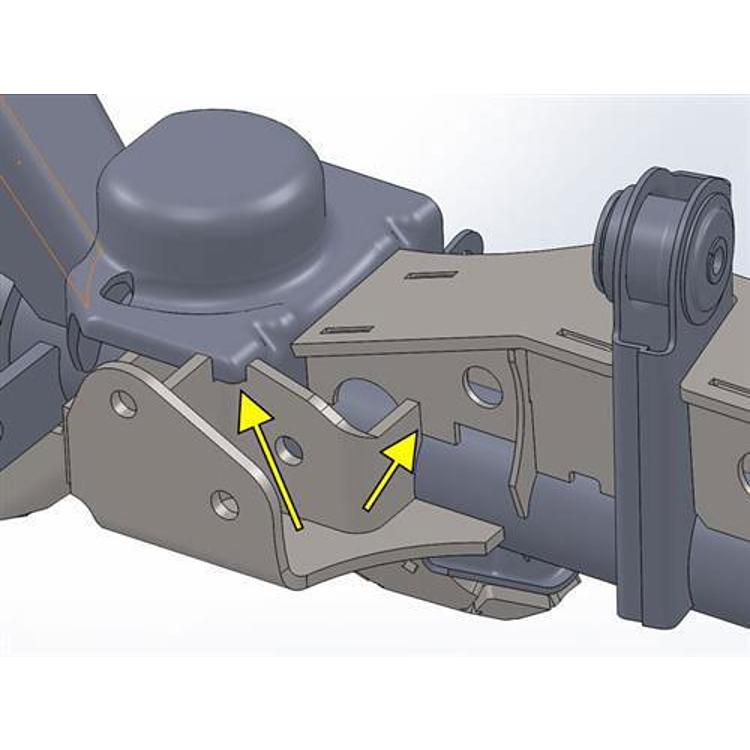

A stock tracbar bracket holds the axle end of the tracbar, so its position sets how the axle tracks side to side. When a lift changes ride height or axle position, the bar angle and bracket location can change with it. Dry-fit the bracket and check bar length, angle and clearance from nearby parts before welding, since a bracket that is off can bind steering or wear bushings quickly.
After fitting, check the tracbar and sway bar clearance through full suspension travel and steering lock. Inspect the bracket welds and mounting bolts after the first few trips, and look for cracks around the weld toes. Bushings in the tracbar and sway bar should be inspected at the same time, since they carry the same loads as the bracket.
Specifications
| Brand | Artec Industries |
|---|---|
| Product code | JK4407 |
| UPC | 816791021748 |
| Material | 1/4 inch mild steel |
| Finish | Bare steel |
| Sway bar mount | Maintains factory location |
| Models | 2-door and 4-door JK |
| Application | Stock tracbar upgrade |
| Quantity | Single bracket |
Vehicle fitment
It is for the front Dana 30 or Dana 44 axle on Jeep Wrangler JK models, 2007-2018, in 2-door and 4-door form. It is intended for a lift that replaces the tracbar, not a drag link flip setup.
It is not for Wrangler TJ, LJ or JL vehicles. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This bracket requires welding and general fabrication. Some grinding and fitment may be needed, since each axle sits slightly differently. Dry-fit the bracket and check tracbar and sway bar clearance before welding, and use the JK4406 instead if you run a drag link flip.
What’s included
One JK4407 bare steel stock tracbar bracket.
Not included: The tracbar itself and the welding or fabrication work the bracket needs are not included.
