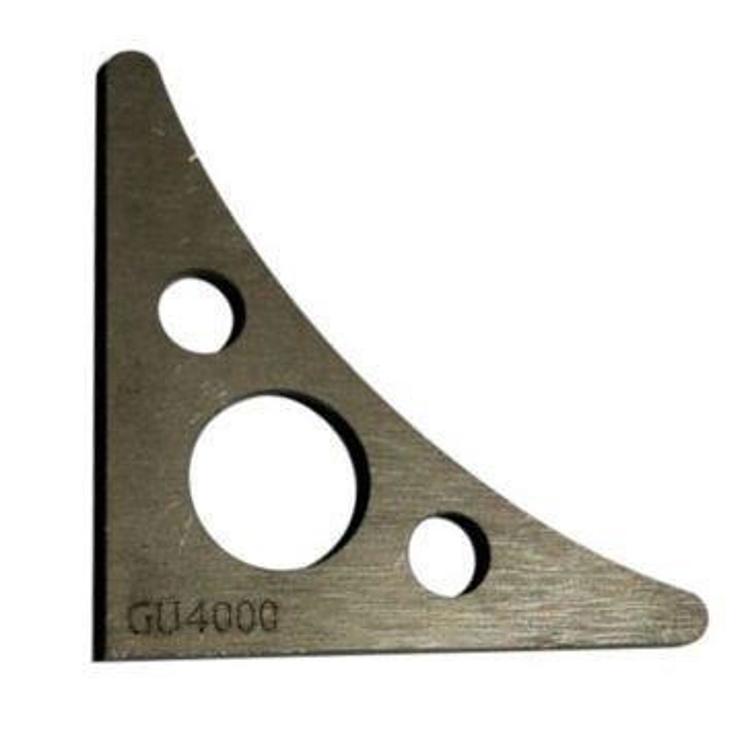

Artec 4 Inch Speed Gusset – GU4000

Artec Industries

Shop Artec Industries Gussets Tabs on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Artec GU4000 4 inch speed gusset, sold as a single
  • Cut from 1/8″ mild steel and tumble finished
  • Designed to be welded directly into place
  • Universal fit; works with any tube diameter

Description

Overview

The Artec Industries GU4000 is a 4 inch speed gusset, sold as a single piece and cut from 1/8″ mild steel. It is tumble finished and ready to be welded directly into place.

Gussets are standard fabrication braces for joints on a build. The GU4000 is universal fit with tube diameter any, so it is not built for one vehicle.

Key features

  • 4 inch speed gusset sold as a single
  • Cut from 1/8″ mild steel
  • Tumble finished
  • Designed to be welded directly into place
  • Works with any tube diameter

Gusset placement

A gusset adds triangular support at a corner, which helps a joint resist bending and twisting loads. Its effect depends on the angle and placement, so set the piece where the load actually runs through the joint instead of placing it for appearance. Both surfaces of the joint should be fully covered by the weld edges.

Gussets are usually welded after the main joint is tacked and aligned, so the brace does not pull the joint out of square. Clean mill scale and oil from the contact edges first. A gusset that is loose at one edge can crack the adjoining tubing, so check the fit carefully before the final pass.

  • Set the gusset in the load path, not for looks
  • Clean contact edges before welding
  • Check the joint for square after the final pass

Specifications

Brand Artec Industries
Part number GU4000
UPC 816791020895
Size 4 inch
Material 1/8″ mild steel
Finish Tumble finished
Sold as Single
Tube diameter Any
Fitment Universal fit
Type Gusset

Vehicle fitment

It is universal fit, so no single vehicle applies. Confirm the size suits your joint before cutting or welding.

It is universal fit only. Before ordering, confirm fit for your vehicle’s year, model and trim.

Installation notes

The gusset is welded rather than bolted, so mark its position and check the fit before the final weld. Use a qualified welder when the joint carries load.

What’s included

One 4 inch speed gusset.

Not included: the tubing or plate it joins, and welding supplies.

SKU: A/IGU4000 Category:

Specification

Shipping weight 0.20 lbs
Package dimensions 4.00 × 4.00 × 0.10 in
brands

Questions & Answers

What is the Artec GU4000 speed gusset?

The GU4000 is a single 4 inch speed gusset cut from 1/8" mild steel. It is tumble finished and ready to weld directly into place, and Artec lists its tube diameter as any.

Will the GU4000 fit my vehicle?

The GU4000 is universal fit, so no specific year, make or model applies. Check that the gusset suits your joint and clearance before welding.

Is the GU4000 sold in pairs?

No. Artec sells the GU4000 as a single gusset, so you need one for each joint you plan to brace. The tubing or plate it joins is not included.

Can a gusset be bolted instead of welded?

A gusset like this is designed to be welded into place, so welding is the intended method. If a joint needs removable bracing, a bolted bracket is a different part and should be planned separately with a qualified fabricator.
