Artec Heavy Duty Raised Tracbar Bracket – JK4406

Artec Industries

$84.17Currently unavailable
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 10:40 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Raised front tracbar bracket for Dana 30 or Dana 44 JK axles
  • Raised tracbar holes at 1.75 inch and 3.0 inch
  • Built for a drag link flip kit
  • Lifts the factory sway bar mount 1.75 inch
  • Made from 1/4 inch mild steel, bare steel finish
  • Adjusts roll center 3 inches higher for stability

Description

Overview

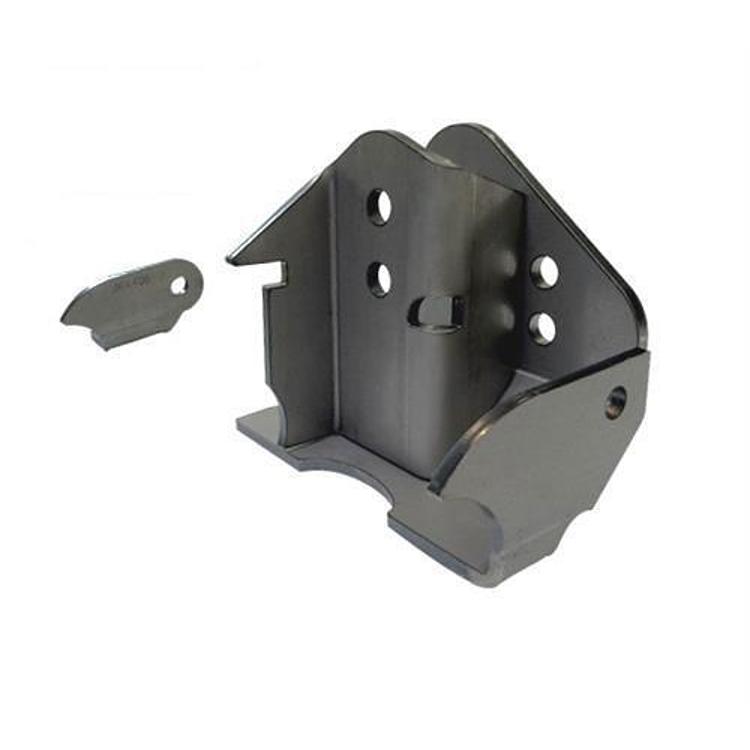

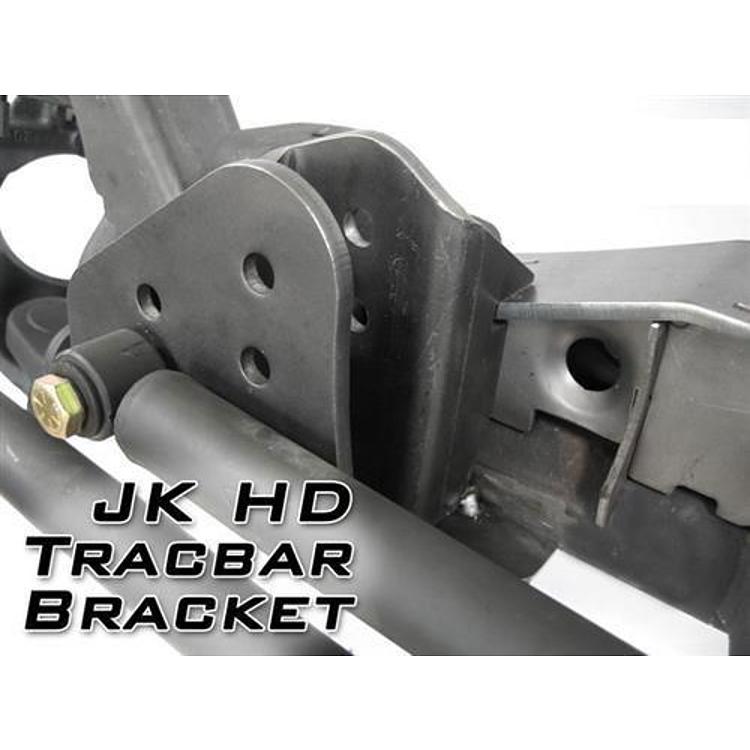

The Artec Industries JK4406 is a raised front tracbar bracket for Jeep Wrangler JK models with Dana 30 or Dana 44 front axles, for 2007-2018 Wrangler JK 2-door and 4-door vehicles. It replaces the factory tracbar bracket and offers raised tracbar holes at 1.75 inch and 3.0 inch, so it is built for a drag link flip setup rather than a stock-height tracbar.

The bracket lifts the factory sway bar mount 1.75 inch and moves the roll center 3 inches higher. A lift of at least 4 inches is required, and a 3.0 inch minimum lift with bumpstop extensions is the drag link flip minimum. Confirm your lift height and bumpstop setup before choosing this bracket.

Key features

  • Raised tracbar holes at 1.75 inch and 3.0 inch
  • Designed for a drag link flip kit
  • Lifts the factory sway bar mount 1.75 inch
  • Adjusts the roll center 3 inches higher for stability
  • Made from 1/4 inch thick precision cut and formed mild steel
  • Fits 2-door and 4-door Wrangler JK models

Drag link flip basics

A drag link flip moves the drag link to the opposite side of the axle so it can clear a raised front end. Because the steering geometry changes, the tracbar and sway bar also change angle, and the bumpstops take more of the axle’s travel. A raised tracbar bracket keeps the axle centered under those changed angles, which is why the bracket and the flip are usually planned together.

Before welding, check bumpstop contact, drag link clearance and steering movement at full lock. Inspect the tracbar bushings and bumpstops after the first few drives, since changed angles load them more. Replacing worn bushings at the same time avoids chasing play later.

  • Bumpstop extensions
  • Drag link and tracbar bushings
  • Sway bar links

Specifications

Brand Artec Industries
Product code JK4406
UPC 816791021731
Material 1/4 inch mild steel
Finish Bare steel
Tracbar holes Raised at 1.75 inch and 3.0 inch
Sway bar mount lift 1.75 inch
Roll center 3 inches higher
Application Drag link flip kit
Quantity Single bracket

Vehicle fitment

This bracket is for the front Dana 30 or Dana 44 axle on Jeep Wrangler JK models, 2007-2018, in 2-door and 4-door form. It is built for a drag link flip, not a stock tracbar setup. The factory-height JK4407 is the choice for a lift that replaces the tracbar.

It is not for Wrangler TJ, LJ or JL vehicles. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

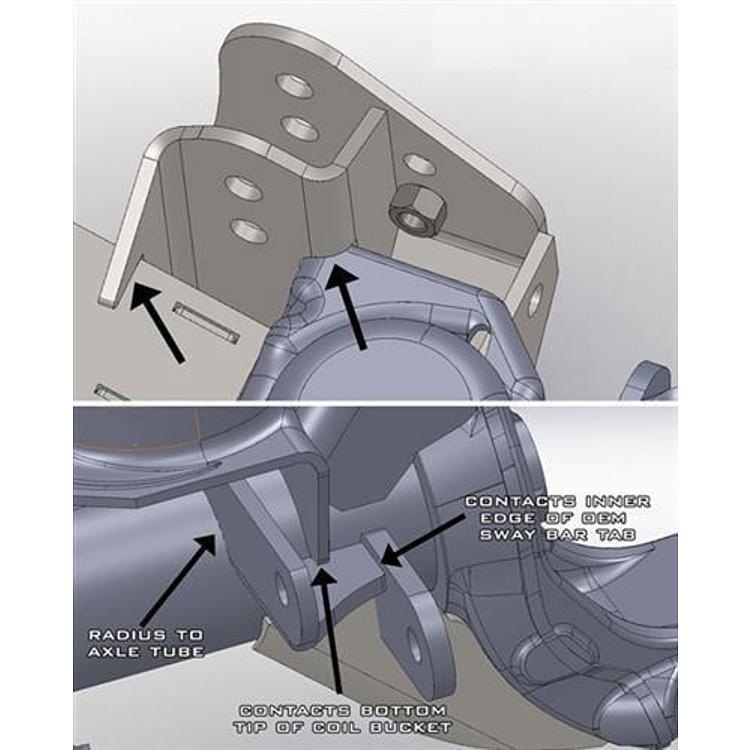

This bracket requires welding and general fabrication. Some grinding may be needed because each axle sits slightly differently, and the drag link flip also needs bumpstop extensions. Dry-fit the bracket and check tracbar and sway bar clearance before welding.

What’s included

One JK4406 raised front tracbar bracket, bare steel.

Not included: The drag link flip kit, bumpstop extensions and welding or fabrication work are needed separately and are not included.

SKU: A/IJK4406 Category:

Specification

Shipping weight 6.00 lbs
Package dimensions 6.00 × 6.00 × 2.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the JK4406 for a stock tracbar setup?

No. The JK4406 is built for a drag link flip, not a stock tracbar setup. If your lift replaces the tracbar and mounts to the factory axle bracket, the JK4407 is the better choice.

Which Jeep does the JK4406 fit?

It fits the front Dana 30 or Dana 44 axle on 2007-2018 Jeep Wrangler JK vehicles, in both 2-door and 4-door models.

What minimum lift does the JK4406 need?

A lift of at least 4 inches is needed for this bracket. The drag link flip setup also uses bumpstop extensions at a 3.0 inch minimum lift. Confirm the lift requirement against your own setup before installing.

Does it need welding?

Yes. Fitting the bracket requires welding and general fabrication. Some grinding may be needed because each axle sits slightly differently.

Should the drag link be checked after installing a flip kit?

Yes. Check the drag link for bind at full steering lock and confirm it clears the frame and axle. Look for worn ends or bushings after the first drives, since changed angles load them more than a stock setup.
