Alloy USA GM 8.5 Inch 10 Bolt Rear Axle Shaft – 17104

Alloy USA

Shop GMC Jimmy Replacement Axle Shafts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • GM 8.5 inch 10 bolt rear axle shaft, 28 spline, driver or passenger side
  • Fits 81-88 GM 1500 4×4, including Chevrolet and GMC models
  • Does not include bearings, seals or studs

Description

Overview

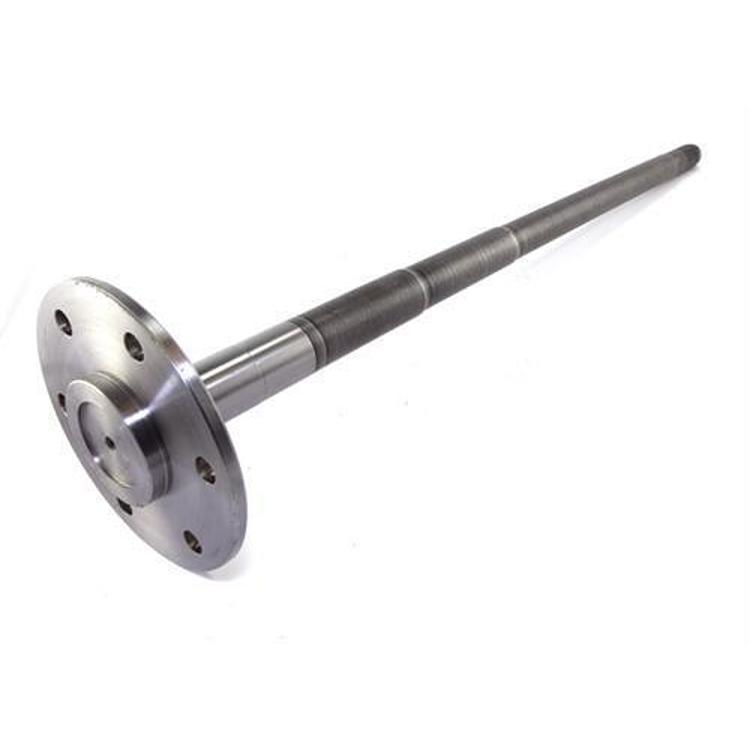

The Alloy USA 17104 is a GM 10 bolt 8.5 inch rear axle shaft with 28 splines for the driver or passenger side. It fits 1981-1988 GM 1500 4×4 models, including Chevrolet Blazer, K10, K1500 and V10 and GMC Jimmy, K1500 and V1500.

The shaft is heat treated and induction hardened, with twice the tensile strength of a stock shaft and up to 35% more strength. It is made from 1541H or 4140 steel. Shaft and gear set engage through splines, so the 28-spline 17104 needs a matching 28-spline differential or carrier. It fits either side, so one part number covers the driver and passenger shafts of the GM 10 bolt 8.5 inch rear axle.

Key features

  • Replacement shaft for the GM 10 bolt 8.5 inch rear axle
  • 28 spline
  • Fits the driver or passenger side
  • Fits 81-88 GM 1500 4×4 trucks
  • Alloy USA says its shafts are heat treated and induction hardened
  • Bearings, seals and studs are not included
  • Manufacturer part number: ALY17104

Matching splines and sides

On an 8.5 inch GM 10 bolt axle, the shaft and the carrier must share a spline count, so counting the splines on the old shaft is the fastest check before buying. Because a single part covers either side, you only need to confirm which side you are replacing and that the axle is the 8.5 inch housing. Many owners replace both shafts at the same time, since the second shaft has seen the same loads.

Trucks that have seen heavy off-road use often show wear at the inner splines and at the bearing seat. Remove the shaft carefully, clean the splines, and check the carrier side gears for chipped teeth. Fresh bearings and seals are worth the cost, because a loose or leaking hub on a lifted truck can cause trouble quickly.

  • Count the splines on the old shaft
  • Confirm the axle is the 8.5 inch 10 bolt
  • Check the carrier side gears for damage
  • Replace both shafts together when one is worn

Specifications

The 17104 is a replacement axle shaft for the GM 10 bolt 8.5 inch rear axle, with 28 splines. Every figure in the table below is the manufacturer value for the 17104.

Brand Alloy USA
Part number 17104
Part type Replacement axle shaft
Axle GM 10 bolt 8.5 inch rear
Axle shaft location Driver or passenger side
Spline 28 spline
Manufacturer part number ALY17104
Application stated 81-88 GM 1500 4X4

Vehicle fitment

The manufacturer fitment list for the 17104 names: 1987–1988 Chevrolet Blazer; 1981–1986 Chevrolet K10; 1988 Chevrolet K1500; 1987 Chevrolet V10; 1981–1988 GMC Jimmy; 1981–1986, 1988 GMC K1500; 1981–1986 GMC K1500 Suburban; 1987 GMC V1500; 1987–1988 GMC V1500 Suburban.

Application: 81-88 GM 1500 4X4.

Before ordering the 17104, compare its spline count, side and overall length with the shaft being replaced.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Before installing the 17104, set aside bearings, seals and studs, since none come with the shaft.

What’s included

One axle shaft.

Not included: Bearings, Seals, Studs.
