Overview
The Alloy USA 61301 is a complete 4-inch lift kit for 1997–2002 Jeep Wrangler TJ models in SE, Sahara, Sport and X trims. It has everything needed to run a 33-inch tire and adds ground clearance and off-road flexibility while keeping street drivability. The lift range is 4 to 5.5 inches.

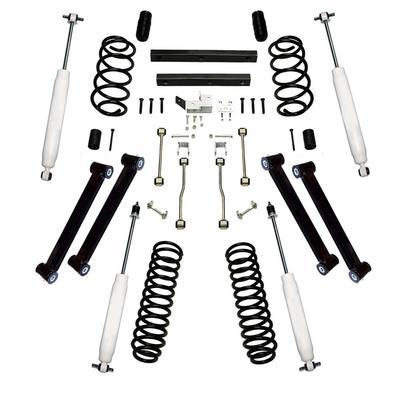

The kit uses 4-inch front coils and 2.5-inch rear coils, which correct the factory rake that Alloy USA says improves ride and handling. It includes tubular lower control arms with grease-able polyurethane bushings to correct the caster angle on lifted vehicles. Four Superide hydraulic shocks are included, with 10-stage velocity-sensitive valving. The kit also includes transfer case lowering brackets, track bar relocation brackets, brake hose extension brackets, extended bump stops and extended-length sway bar end links for the front and rear, with a 5-year limited manufacturer warranty.
The kit also includes track bar relocation brackets, brake hose extension brackets and extended bump stops, which make up the complete package.
Key features
- 4-inch front coils and 2.5-inch rear coils
- Tubular lower control arms with grease-able polyurethane bushings
- Four Superide hydraulic shocks, 10-stage velocity-sensitive valving
- Transfer case lowering brackets
- Track bar relocation brackets
- Brake hose extension brackets, extended bump stops and sway bar end links
- 5-year limited manufacturer warranty
Setup after a TJ lift
A lift changes the geometry the factory parts were built around, so the alignment is worth checking soon after the install. Caster matters most on a lifted TJ, and the tubular control arms are designed to correct it. Keep an eye on steering feel during the first highway drives and note any pull or wander.
Tire size drives much of the setup. Larger tires add weight and rotating mass, which puts more load on the shocks, bushings and driveline. Recheck fender clearance at full steering lock, and inspect bump stops for contact when the suspension is cycled through its travel.
- Recheck alignment after the first few weeks
- Inspect bump stops at full suspension travel
- Retorque control arm fasteners after initial drives
- Look for rubbing at full steering lock
Specifications
| Brand | Alloy USA |
|---|---|
| Part number | 61301 |
| Lift height range | 4 to 5.5 inches |
| Front springs | 4-inch coil |
| Rear springs | 2.5-inch coil |
| Shocks | Four Superide hydraulic |
| Maximum tire size | 33 inches |
| Warranty | 5-year limited |
| Fitment type | Direct fit |
Vehicle fitment
The kit fits 1997–2002 Jeep Wrangler TJ models in SE, Sahara, Sport and X trims.
Wrangler JK, LJ and JL models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The lower control arms correct caster on lifted vehicles, so have the alignment checked after installation. The transfer case brackets keep the driveline in line.
