Skyjacker 4 Inch Lift Kit with Hydro Shocks – TJ401BPH-R

Skyjacker

Shop Jeep Wrangler TJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4 inch lift for 1997-2002 Jeep Wrangler TJ with Hydro shocks
  • Front and rear lower links, rear track bar bracket and drop pitman arm
  • Transfer case lowering kit and extended sway bar end links
  • Maximum tire size 33 x 12.50

Description

Overview

The Skyjacker TJ401BPH-R is a 4 inch lift kit with Hydro shock absorbers for the 1997-2002 Jeep Wrangler TJ. It fits the 1997 to 2002 TJ Wrangler. It uses a short arm design with front and rear lower links, front and rear coil springs and a transfer case lowering kit, and it fits the SE, Sahara, Sport and X trims.

The spec sheet gives a lift height range of 3 to 4.99 inches and a maximum tire size of 33 x 12.50, with Hydro shocks included. The kit is designed as a full package, so the lower links, track bar bracket and drop pitman arm should be installed together.

Key features

  • 4 inch lift
  • Front and rear lower links
  • Rear track bar bracket
  • Drop pitman arm
  • Transfer case lowering kit
  • Front and rear sway bar end links
  • Hydro shock absorbers
  • Front and rear coil springs
  • Maximum tire size 33 x 12.50

Tire size and clearance

Tire size on a lifted Wrangler affects gearing, steering effort and braking, so plan the wheel and tire combination together. Larger tires add rotating mass and can make the vehicle slower to respond. Clearance is usually tightest at the front fender, the inner fender liners and the track bar when the steering is turned.

Before fitting bigger tires, check the brake lines, the steering stops and the drive shaft angles. A drop pitman arm and transfer case lowering kit create room, but clearance should be confirmed by measurement after assembly. Rotate and inspect tires regularly, since uneven wear can point to alignment or suspension play.

  • Check steering lock clearance after new tires
  • Re-check alignment after the first few drives
  • Look for rubbing on the inner fenders

Specifications

Brand Skyjacker
Part number TJ401BPH-R
UPC 70000545194
Lift 4 inch
Lift height range 3 to 4.99 inches
Suspension type Short arm
Rear lift method Coil springs
Shocks Hydro
Maximum tire size 33 x 12.50

Vehicle fitment

It fits the 1997-2002 Jeep Wrangler (TJ) in the SE, Sahara, Sport and X trims. Later Wrangler models and the Wrangler LJ use different parts and are not covered.

Later Wrangler models and the Wrangler LJ use different parts and are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The drop pitman arm and the transfer case lowering kit both change the steering and driveline geometry, so have the driveline angles and the steering alignment checked after the install. Check tire clearance at the 33 x 12.50 maximum.

What’s included

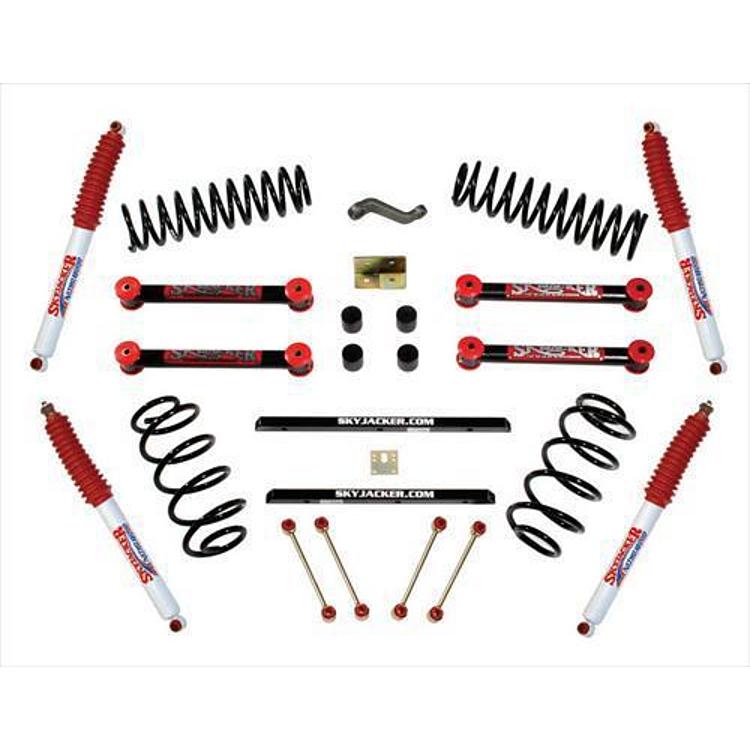

The kit includes front and rear lower links, a rear track bar bracket, a drop pitman arm, a transfer case lowering kit, front and rear sway bar end links, Hydro shock absorbers and front and rear coil springs.

SKU: SKYTJ401BPH-R Category:

Specification

Shipping weight 121.50 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)1997–2002SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What is the maximum tire size for the TJ401BPH-R?

The maximum tire size is 33 x 12.50. Check clearance at full steering lock and full suspension travel, since the lift height range is 3 to 4.99 inches.

Is the TJ401BPH-R the same as the TJ401BPH?

Both are 4 inch short arm kits for the 1997-2002 Wrangler TJ with Hydro shocks. The TJ401BPH-R has a maximum tire size of 33 x 12.50.

Does this kit fit a 1997 Jeep Wrangler TJ?

Yes. It fits the 1997 to 2002 TJ Wrangler in the SE, Sahara, Sport and X trims. Confirm your trim before ordering.

Do I need a new alignment after installing a lift?

In most cases, yes. A lift with a drop pitman arm and new links changes caster, toe and steering geometry. Have the alignment checked and set after the install, and recheck it after any tire change or suspension service.
