Pro Comp 4 Inch Stage II Lift Kit with ES3000 Shocks – K3083B

Pro Comp Suspension

Shop Jeep Wrangler TJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch stage 2 coil spring and short arm lift for Jeep Wrangler LJ and TJ
  • Boxed lower control arms and steering correction with pitman arm
  • Front sway bar links and bump stop extensions
  • Front and rear ES3000 shocks

Description

Overview

The Pro Comp K3083B is a 4-inch stage 2 coil spring and short arm lift with ES3000 shocks. It fits 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon models, and 1997–2006 Jeep Wrangler (TJ) 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims.

The front uses coil springs with boxed lower control arms, and the rear uses coil springs. A pitman arm corrects steering for the raised height, and bump stop extensions are included. The lift height range is 3 to 4.99 inches.

Key features

  • 4-inch stage 2 lift
  • Boxed lower control arms
  • Front coil springs and rear coil springs
  • Pitman arm steering correction
  • Front sway bar links and bump stop extensions
  • ES3000 front and rear shocks

Steering and alignment after lift

Boxed lower control arms and a pitman arm change how the front end steers. The pitman arm corrects steering for the raised height, but it only works properly when the drag link, tie rods and steering box are in good condition. Worn joints can make the steering wander even after a correct alignment.

Coil spring lifts on a Wrangler change the caster and driveline angles together. A caster adjustment and a driveline check after the first drive help keep the steering stable at speed and the vibration low. Bump stops and sway bar links should be inspected at the same time, because they handle the travel the lift adds.

On TJ and LJ bodies, look at the brake hoses for stretch at full droop, and check that the steering stop clears the new geometry. Re-check the bolts on the boxed arms after the first few trail runs.

Specifications

Brand Pro Comp Suspension
Part number K3083B
UPC 614901123357
Lift 4 inches, stage 2
Lift height range 3 to 4.99 inches
Suspension type Coil spring and short arm
Front lift Coil springs with boxed lower control arms
Rear lift Coil springs
Steering correction Pitman arm
Front shocks ES3000
Rear shocks ES3000
Max tire size 33×12.50

Vehicle fitment

It fits 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon models, and 1997–2006 Jeep Wrangler (TJ) models in the trims named above. The YJ, JK and later Wrangler generations do not fit this kit.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Boxed lower control arms and a pitman arm change the front steering and suspension geometry, so have the alignment and steering centering checked after installation. Check the driveline angles as well, since the coil spring lift changes them.

What’s included

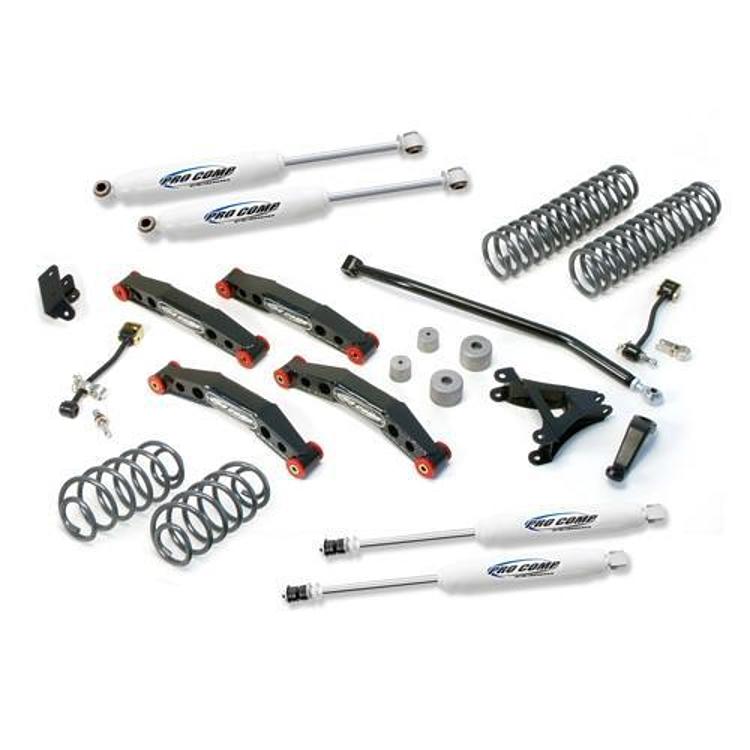

The kit includes front coil springs, boxed lower control arms, front sway bar links, bump stop extensions, a pitman arm for steering correction, rear coil springs and ES3000 front and rear shocks.

SKU: EXPK3083B Category:

Specification

Shipping weight 153.20 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K3083B fit a 2005 Jeep Wrangler LJ?

Yes. It fits 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon models, which includes 2005. Confirm the trim before ordering.

Does the K3083B fit a 1999 Wrangler TJ?

Yes. It fits 1997–2006 Jeep Wrangler (TJ) models in the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims, which covers 1999. Confirm the trim and body style before ordering.

Is steering correction included?

Yes. A pitman arm is included for steering correction, which is needed because the front geometry changes with the raised suspension.

Do I need a driveshaft change with a coil spring Wrangler lift?

It depends on the angle change. Coil spring lifts alter driveline angles, so measure them after installation. Severe angles can cause vibration, which may call for a shaft correction or a carrier spacer.
