Rubicon Express 5.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Tri-Link and Mono Tube Shocks – RE7505M

Rubicon Express

Shop Jeep Wrangler TJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express RE7505M 5.5 inch Extreme-Duty long arm lift kit with rear Tri-Link and mono tube shocks
  • Listed fit: 1997–2002 Jeep Wrangler TJ
  • Chromoly long arms, Builder Ball and tuned lift springs
  • Lift height range 5 to 6.99 inches; mono tube shocks included

Description

Overview

The Rubicon Express RE7505M is a 5.5-inch Extreme-Duty long arm lift kit with a rear Tri-Link and mono tube shocks, made for the 1997–2002 Jeep Wrangler TJ. The lift falls within the 5 to 6.99-inch range.

The long arm system replaces the suspension with longer control arms, which Rubicon Express says improves geometry on a lifted Wrangler TJ. The company describes better stability, less torque roll and enhanced trail traction compared with standard short arm lifts.

The rear Tri-Link replaces the rear track bar, which lets the axle move straight up and down through its travel. The link adds anti-squat on steep climbs and improves on-road tracking. Mono tube shocks are included with this kit.

Key features

  • 5.5 inch lift with a listed range of 5 to 6.99 inches
  • Chromoly long arms made from 4130 chromoly tubing
  • Rear Tri-Link in place of the rear track bar
  • Builder Ball misalignment joint, rated for up to 32 degrees
  • Adjustable control arms with serviceable Super-Flex spherical ball joints
  • Mono tube shocks included
  • Tuned lift springs, PT-Meg Super-Ride bushings and stainless steel brake lines

Mono tube shocks explained

Mono tube shocks use a single tube with a floating piston, which helps them resist fade when worked hard on a trail. On a lifted TJ they are often chosen for steep descents and rough sections, where the shock has to keep cycling without heating up. Their firmer feel on pavement is a trade-off worth weighing against how the vehicle is driven most days.

Shock length and mounting position should match the new control arm geometry at a higher lift. Check that the shock extends and compresses through its travel without binding, and that the eyelets sit square. A worn shock often shows as oil on the body, a bouncing ride or a clunk at the mounts.

  • Look for oil on the shock body
  • Check eyelets and bushings during service
  • Replace shocks in pairs on each axle

Specifications

Brand Rubicon Express
Part number RE7505M
UPC 614901452945
Lift height range 5 to 6.99 inches
Suspension type Long arm
Kit type Extreme-Duty long arm
Rear lift method 3-link (Tri-Link)
Control arm material 4130 chromoly, .250 wall
Misalignment joint Builder Ball, up to 32 degrees, 3 inch OD housing
Belly pan Three-piece, for transfer case and transmission access
Shocks included Yes, mono tube
Fitment Direct fit

Vehicle fitment

It fits the 1997–2002 Jeep Wrangler (TJ), including the SE, Sahara and Sport models.

Confirm your vehicle’s year, model and trim before ordering, including whether it is a 2003–2006 TJ, JK or YJ.

Installation notes

At 5 to 6.99 inches of lift, the alignment and driveline angles need checking after installation. The kit is bolt-on for factory Dana 35 and Dana 44 rear ends.

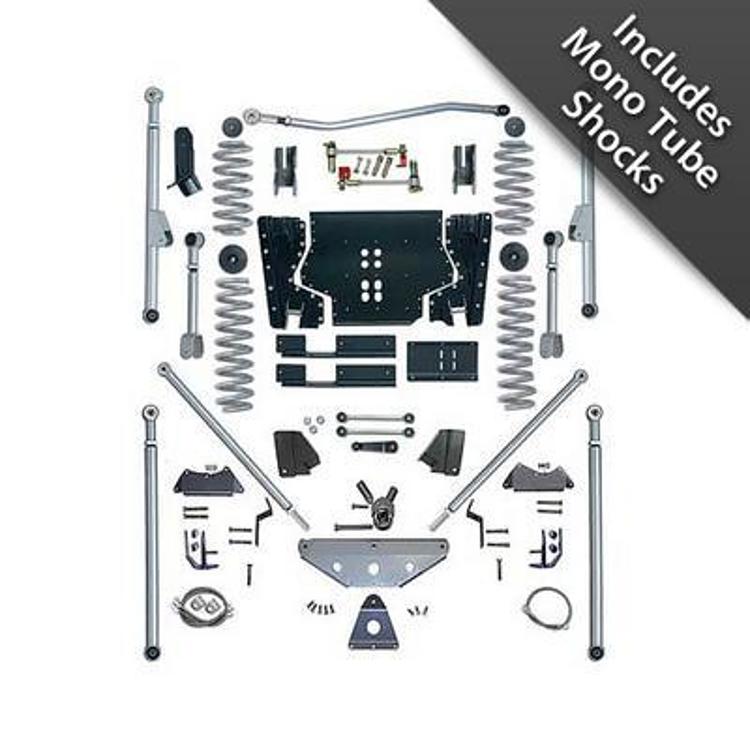

What’s included

The kit includes front and rear control arms, the rear Tri-Link, the Builder Ball, PT-Meg Super-Ride bushings, tuned lift springs, stainless steel brake lines, mono tube shocks and a three-piece belly pan.

SKU: R/ERE7505M Category:

Specification

Shipping weight 408.75 lbs
Package dimensions 48.00 × 24.00 × 24.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)1997–2002SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RE7505M include shocks?

Yes. Mono tube shocks are included, so the shock replacement is part of the same kit as the long arms and the 5 to 6.99 inch lift springs.

What lift height does the RE7505M provide?

The kit is a 5.5-inch lift, within a 5 to 6.99-inch range. It is made for the 1997 to 2002 Jeep Wrangler TJ, so check that the height suits your build before ordering.

Does the RE7505M replace the rear track bar?

Yes. The rear Tri-Link takes the place of the track bar, and the Builder Ball is the misalignment joint used with it.

How do I know when mono tube shocks need replacing?

Replace them when they leak oil, bounce after bumps or make noise at the mounts. Uneven tire wear on one axle can also point to a shock that is no longer damping evenly.
