Overview

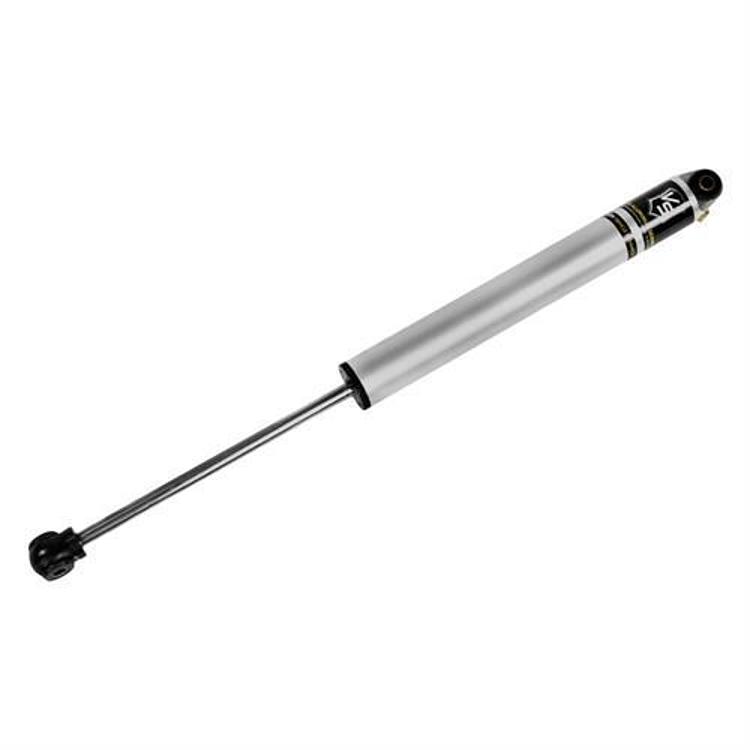

The Icon Suspension V.S. 2.0 Aluminum Series shock absorber, part number 86535, is a gas charged monotube rear shock for the 2016–2017 Nissan Titan XD. It is a direct-fit replacement offered for either the driver or passenger side and sold individually, so the number needed depends on how many positions you are replacing. It suits owners replacing a rear shock on a 2016 or 2017 Titan XD.
In a monotube design the piston moves inside a single tube, and this shock adds a nitrogen charge as part of its gas charged construction. The body works with a 5/8 inch chrome plated hardened steel shaft and polyurethane bushings. The 2.0 Aluminum Series sits within Icon’s shock absorber range, alongside coilover shocks and tubular and billet uniball upper control arms.
Key features
- Gas charged monotube body with a nitrogen charge
- Chrome plated hardened steel shaft, 5/8 inch diameter
- Polyurethane bushings
- Rear position, available for the driver or passenger side
- Direct-fit design for the listed 2016–2017 Nissan Titan XD trims
- Sold individually
- The shock is made in the United States.
Monotube shocks on the Titan XD
A monotube shock keeps the piston inside one tube, so the damper has a simpler path for heat to leave the oil. Nitrogen gas in the body helps the shock hold its response when it is worked hard, which is useful on a full-size truck carrying loads.
On a Titan XD, the rear shocks handle load changes from the bed and towing, so check that the mounts and bushings are sound before fitting a new unit. Polyurethane bushings are firmer than rubber, and they hold alignment well under load.
Shocks should be replaced in matched sets, since a single new unit can make the rear feel uneven. Inspect the old shock for leaks, dents and seal wear, and look at the shaft for pitting before removing it.
- Inspect mounts and bushings before fitting
- Check for oil leakage at the seals
- Replace matched rear shocks together
Specifications
| Brand | Icon Suspension |
|---|---|
| Part number | 86535 |
| UPC | 700007886181 |
| Shock series | 2.0 Aluminum Series |
| Position | Rear; driver or passenger side |
| Body design | Monotube, gas charged |
| Charge | Nitrogen |
| Shaft | 5/8 inch, chrome plated, hardened steel |
| Bushings | Polyurethane |
| Fitment type | Direct fit |
| Quantity | Sold individually |
| Made in | United States (per Icon) |
Vehicle fitment
It fits the 2016–2017 Nissan Titan XD in the PRO-4X, Platinum Reserve, S, SL and SV trims.
The list covers the Titan XD only. Other Nissan models and other Titan generations are not included, so check your year, model and trim against the list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One shock absorber, sold individually. Confirm you have all mounting hardware before starting the installation.
