Overview

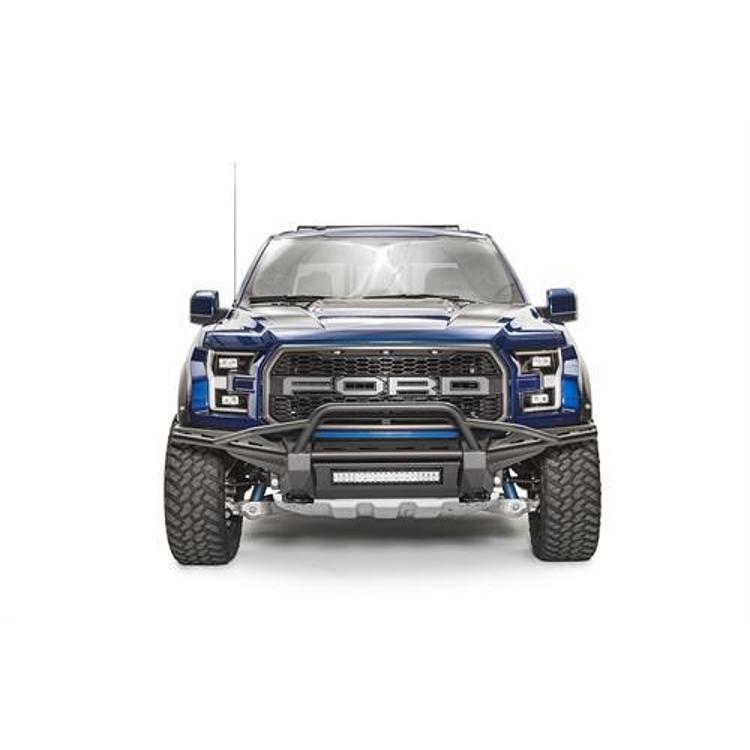

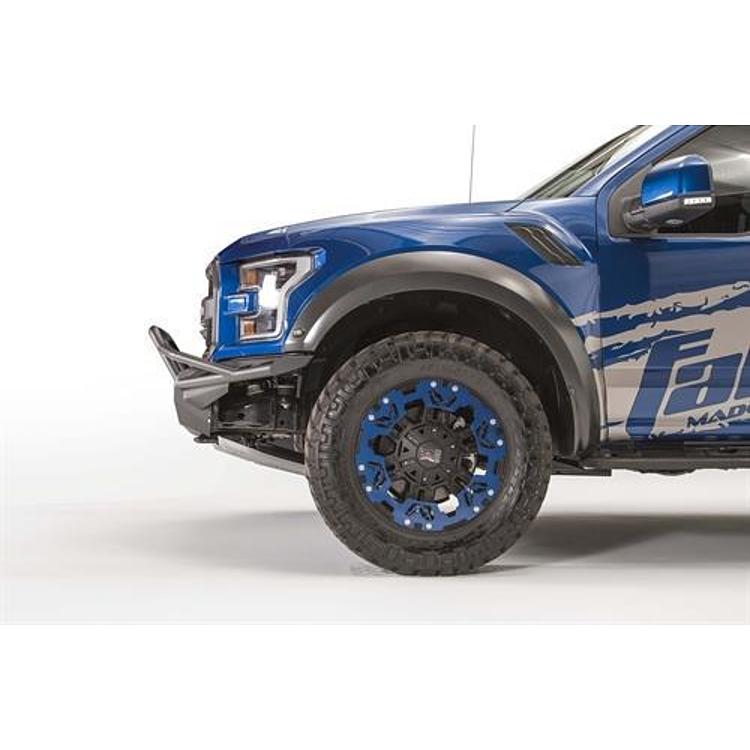

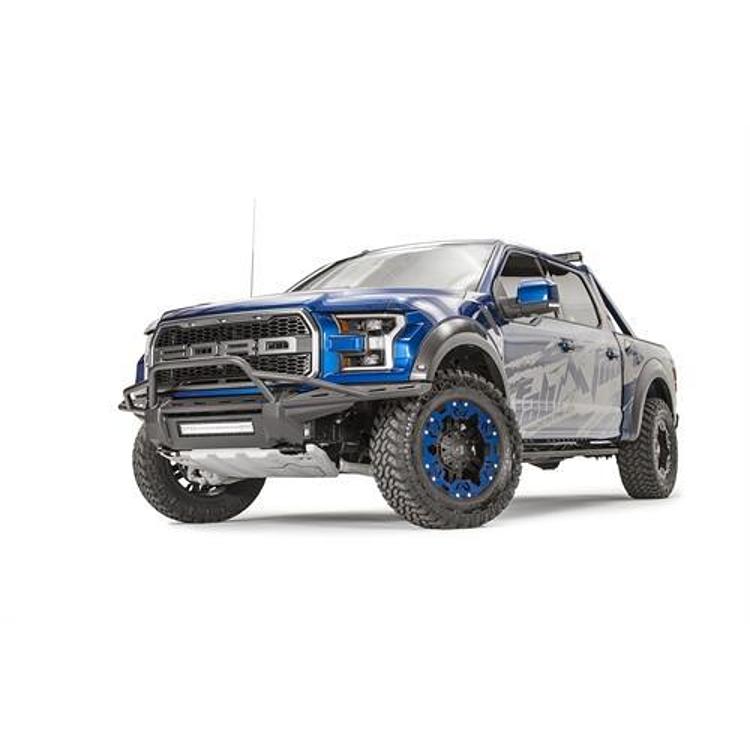

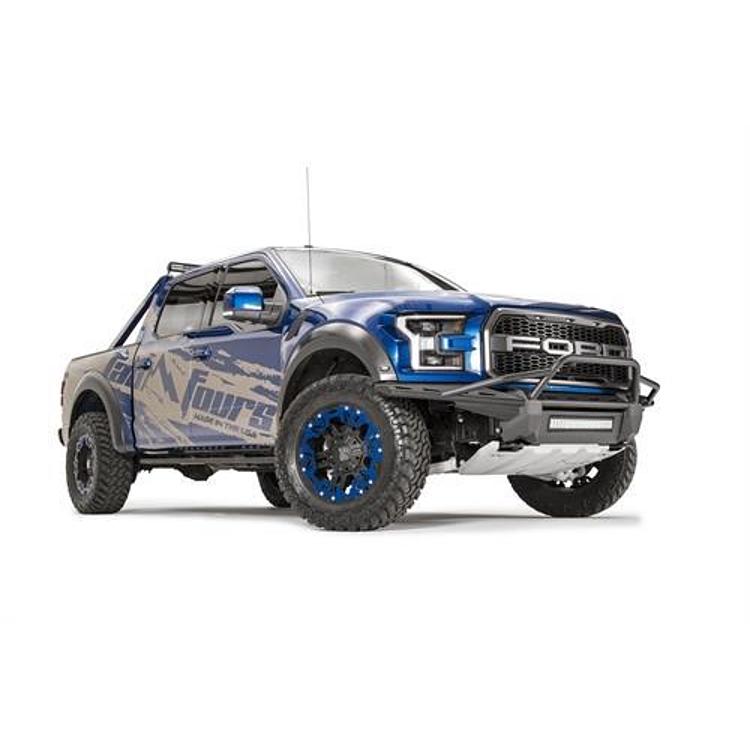

The Fab Fours FF17-D4372-1 is an Aero Series front bumper with a pre-runner guard for 2017 to 2018 Ford F-150 trucks, including the Raptor. It has a black powder coat finish.
The pre-runner guard version of the Aero bumper weighs 55 lb. It combines tube and plate steel, keeps the factory skid plate and provides greater tire clearance. It has a center mount for a Rigid Industries 20-inch LED light bar, which is bought separately. It fits the 2017 to 2018 Ford Raptor.
The Aero Series is engineered to retain features including Adaptive Cruise Control and Park Assist when the optional bracket is used. A version without a guard is also available. Owners who want to keep the factory driver-assist features should plan on the optional bracket. The center mount is the only lighting position for this bumper.
Key features
- Pre-runner guard version, 55 lb
- Fits the 2017 to 2018 Ford Raptor.
- Tube and plate hybrid construction
- Retains the factory skid plate
- Greater tire clearance
- Center mount for a Rigid Industries 20-inch LED light bar
- High and tight fit to the vehicle
- Optional M3850-1 relocation bracket
Pre-runner guard fitting notes
A pre-runner guard protects the nose of the truck while keeping the grille area open. It suits drivers who see brush, rocks and low obstacles on trails but still want good airflow to the radiator. Because the guard is a fixed part of the front end, check its welds and brackets after each season of hard use.
A light bar on the center mount should be wired on its own switched circuit with a fuse close to the battery. Plan the route before the bar is fixed in place so the harness stays away from the cooling fan and moving parts. Aim the light only after the truck is loaded as it normally runs, since weight shifts the beam height.
Retaining driver assist features depends on how the sensors are positioned, so review sensor placement after fitting the bumper. Keep the sensor faces clean and check for any fault indications after the first few drives. If the relocation bracket is needed, fit it before final alignment so the sensors are set in their correct position.
- Plan light bar wiring before mounting
- Check guard welds after hard use
- Keep sensor faces clean
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | FF17-D4372-1 |
| UPC | 5810114787 |
| Type | Aero Series front bumper, pre-runner guard |
| Position | Front |
| Width | Full |
| Material | 11 ga. U.S. steel and tubing, 1.75-inch diameter, .120 wall |
| Finish | Two-stage black powder coat |
| Weight | 55 lb with pre-runner guard |
| Dimensions | Length 84 in, height 30 in, width 26 in |
| Fit type | Direct fit |
| Light mounts | Included |
| Winch mount | Not included |
Vehicle fitment
It is a direct fit for the 2017 to 2018 Ford F-150 (Raptor).
The F-150 trucks of 2015 to 2017 and 2009 to 2014 are not covered by this part number. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Brackets bolt the bumper to the frame. The optional M3850-1 relocation bracket is available for retaining factory technology features.
What’s included
- Aero Series pre-runner front bumper in black powder coat
- Frame brackets
Not included: The LED light bar and the optional M3850-1 relocation bracket.
