Fab Fours Front Bumper with Pre-Runner Guard and Sensor (Black) – CH14-C3052-1

Fab Fours

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2015–2018 Chevrolet Silverado 2500 HD and 3500 HD
  • Pre-runner guard with four factory sensor holes
  • Winch ready up to 16,500 lb
  • Includes fog and turn indicator lights

Description

Overview

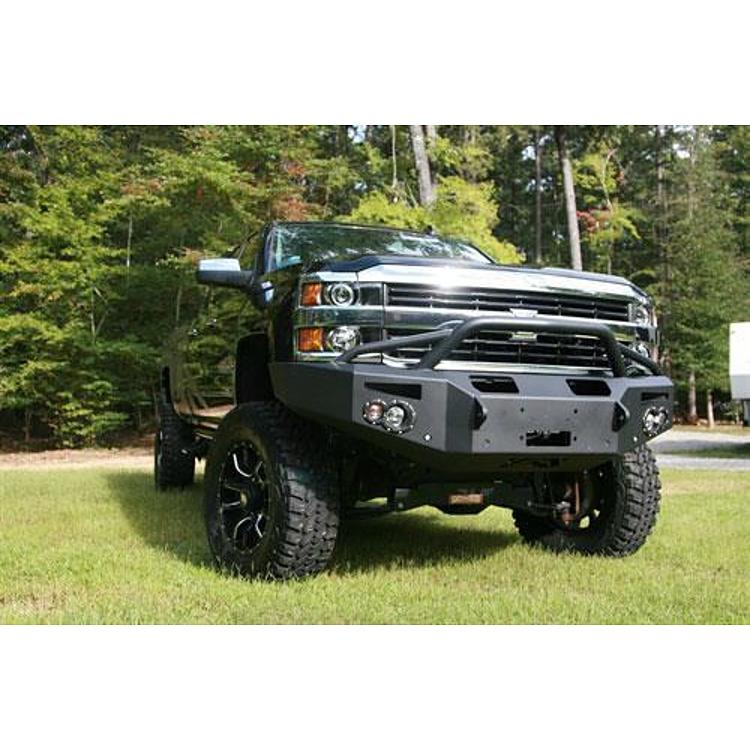

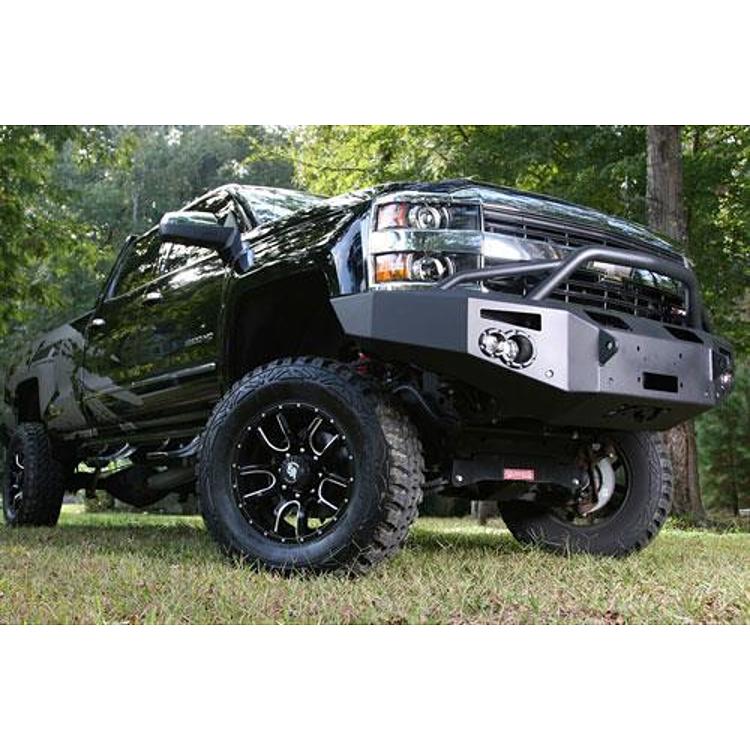

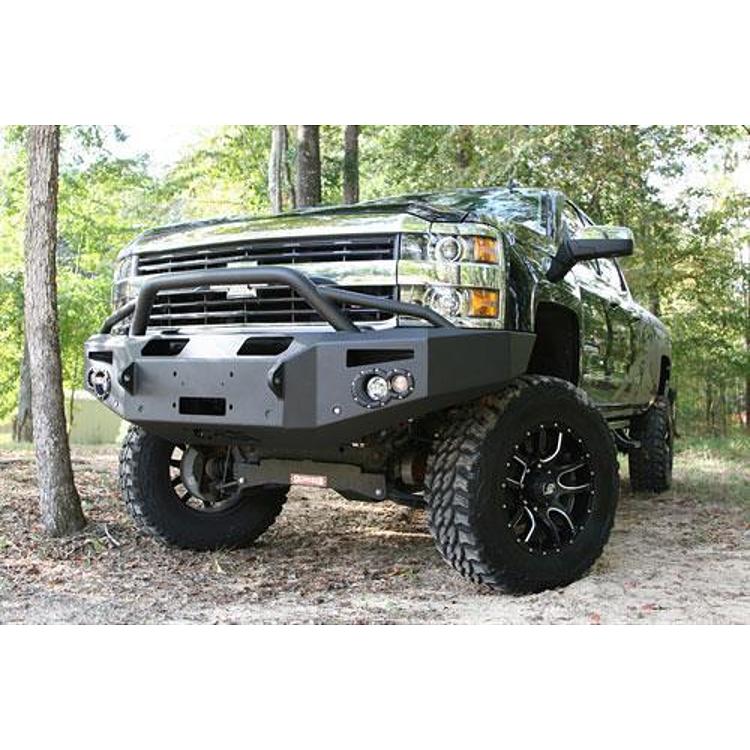

The Fab Fours Front Bumper with Pre-Runner Guard and Sensor in black, part number CH14-C3052-1, is a premium steel winch bumper for the 2015–2018 Chevrolet Silverado 2500 HD and 3500 HD. It adds a pre-runner guard to the sensor-ready design of CH14-C3051-1.

Four sensor holes are laser cut into the center section in the factory pattern, so factory-equipped sensors fit the OEM housing and work with the factory park assist system. The winch tray has an upgraded D-ring and fairlead location. The bumper is part of the premium line and is made in the USA.

Key features

  • Pre-runner guard winch bumper with four integrated sensor holes
  • Sensor holes laser cut with the factory pattern
  • Redesigned internal winch tray with an upgraded D-ring and fairlead location
  • Tray access slots for the factory sensor harness
  • Winch ready for winches up to 16,500 lb
  • Combination of 1/4 inch and 3/16 inch steel, 1/4 inch boxed mounting system
  • 3/4 inch D-ring mounts, 90mm fog lights and 60mm turn indicator lights
  • Two-stage matte black powder coat; bare steel uses -B instead of -1

Choosing a winch setup

A winch bumper carries the load of a recovery at the front of the truck, so the mounting points and the winch tray take most of the stress. Before a pull, confirm the winch is bolted through the tray and that the cable runs straight through the fairlead. An angled pull can bind the cable and load the bumper edges unevenly. Keep bystanders clear of the cable path at all times.

A pre-runner guard protects the front end from brush and rock contact while the winch stays behind it. Re-check the bumper and winch mount bolts after the first few trail runs, since vibration can loosen fasteners. Spool the cable evenly and inspect it for frayed strands before each use.

  • Check winch mount bolts after the first trail runs
  • Inspect cable and hook before every recovery
  • Confirm the battery can handle winch draw

Specifications

Brand Fab Fours
Part number CH14-C3052-1
UPC 5810109448
Product type Sensor winch front bumper
Guard style Pre-runner guard
Position Front
Width Full
Material Steel, 1/4 inch and 3/16 inch
Finish Two-stage matte black powder coat
Sensor holes 4, laser cut in the factory pattern
Maximum winch 16,500 lb
Included lights 90mm fog and 60mm turn indicator
Light mounts Included
Winch mount Included
Fitment type Direct fit

Vehicle fitment

It fits the 2015–2018 Chevrolet Silverado 2500 HD and 3500 HD.

Other Silverado years are not on the list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The lower portion of the winch tray has access slots so the factory sensor harness can pass through. The adjustable boxed mounting system and the supplied lights both need attention during installation.

What’s included

The pre-runner guard sensor bumper with winch mount and the 90mm fog lights and 60mm turn indicator lights.

Not included: The winch.

SKU: FFICH14-C3052-1 Category:

Specification

Shipping weight 320.00 lbs
Package dimensions 90.00 × 42.00 × 37.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 2500 HD2015–2018High Country, LT, LTZ, WT
Chevrolet Silverado 3500 HD2015–2018High Country, LT, LTZ, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is Fab Fours CH14-C3052-1 sensor compatible?

Yes. It has four integrated sensor holes laser cut in the factory pattern, compatible with the OEM sensor housing and the factory park assist system.

What is different between CH14-C3052-1 and CH14-C3051-1?

The CH14-C3052-1 has a pre-runner guard, while CH14-C3051-1 has no guard. Both are sensor winch bumpers for the 2015–2018 Silverado 2500 HD and 3500 HD.

How large a winch fits CH14-C3052-1?

It accepts winches up to 16,500 lb. The internal tray has an upgraded D-ring and fairlead location. The winch itself is not included.

Does a winch bumper need regular inspection?

Yes. Check the mounting bolts, tray welds and fairlead for looseness or cracks after rough use. Clean road grit from the cable and winch motor on a regular schedule so the hardware stays serviceable.
