Aero Series Front Bumper in Black Powder Coat

Fab Fours

Shop Ford F-150 Front Bumpers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Aero Series front bumper, no guard, for 2017 to 2018 Ford F-150 Raptor
  • Ultra light hybrid at 45 lb
  • Retains the factory skid plate
  • 20-inch LED light bar mount, black powder coat

Description

Overview

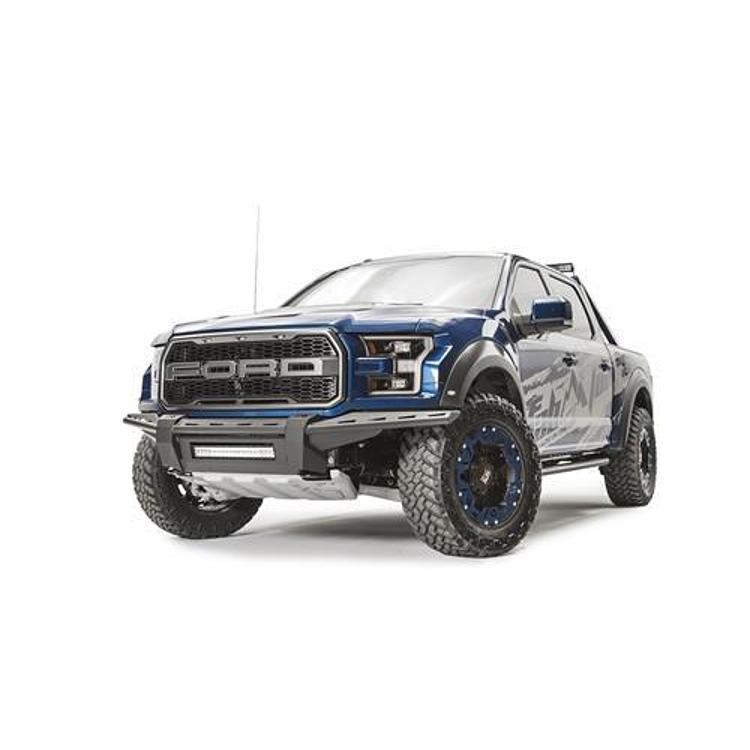

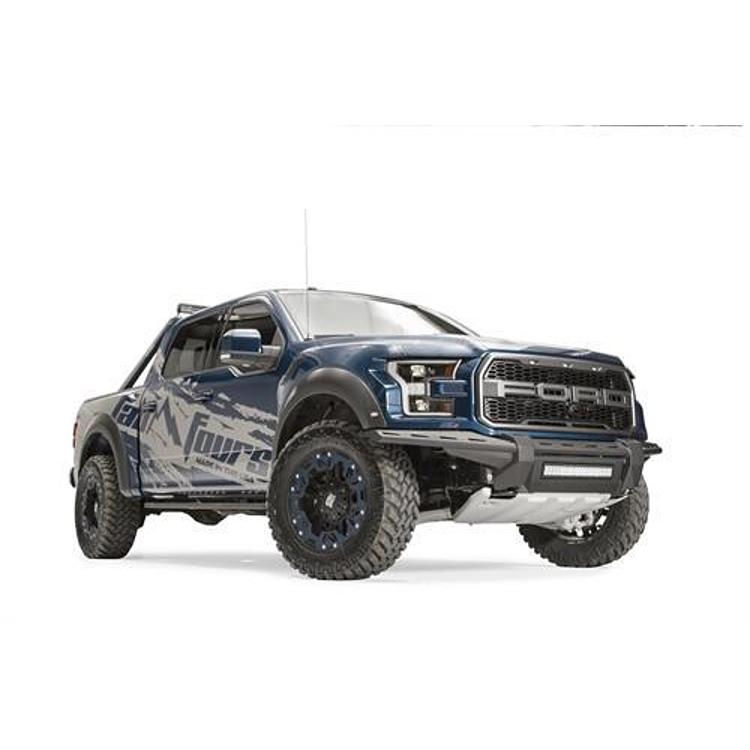

The Fab Fours FF17-D4371-1 is an Aero Series front bumper without a guard for 2017 to 2018 Ford F-150 trucks, including the Raptor. It is built from tube and plate steel in black powder coat.

The Aero Series is an ultra light hybrid bumper. It fits high and tight to the contours of the vehicle and weighs 45 lb with no guard. It retains the factory skid plate and has a center mount for a Rigid Industries 20-inch LED light bar.

Fab Fours adds that the Aero Series is engineered to retain new technology features such as Adaptive Cruise Control and Park Assist with the optional M3850-1 bracket. The bumper is available in a no guard or pre-runner guard option and is made in the USA.

Key features

  • Fits the 2017 to 2018 Ford Raptor
  • Lightweight: 45 lb with no guard, 55 lb with the pre-runner guard
  • Retains the factory skid plate
  • Greater tire clearance
  • Center mount for a Rigid Industries 20-inch LED light bar (not included)
  • 11 ga. U.S. steel with 1.75-inch diameter, .120 wall tubing
  • Optional M3850-1 relocation bracket for factory technology features
  • Two-stage black powder coat

Ultra light bumper trade-offs

Hybrid bumpers that combine tube and plate steel try to keep weight low while keeping strength where it matters. A lighter front end can ease lifting during installation and reduce load on the front suspension, but the bumper still has to carry mounting loads and recovery forces. Frame brackets and their bolts remain the key part of the structure, so check them whenever the truck is serviced.

Choosing between a no guard and a pre-runner guard version comes down to how much front coverage is wanted and how much weight is acceptable. A no guard bumper keeps the front face open, which suits street use and simple light bar mounting. A guard adds protection to the nose of the truck, so consider how much brush and rock contact the truck sees.

Driver assist sensors sit behind or near the front fascia, so any change to bumper position may affect them. Before fitting, confirm what features the truck has and whether a relocation bracket is needed. After installation, check that the sensors are clear and aligned, and keep the bumper face clean so the sensors can read properly.

  • Check frame bracket bolts at each service
  • Keep sensor faces clear of mud
  • Touch up powder coat chips early

Specifications

Brand Fab Fours
Part number FF17-D4371-1
UPC 5810114763
Type Aero Series front bumper, no guard
Position Front
Width Full
Material 11 ga. U.S. steel and tubing, 1.75-inch diameter, .120 wall
Finish Two-stage black powder coat
Weight 45 lb with no guard
Dimensions Length 84 in, height 30 in, width 26 in
Fit type Direct fit
Light mounts Included
Winch mount Not included

Vehicle fitment

Fab Fours lists FF17-D4371-1 for the 2017 to 2018 Ford F-150 (Raptor).

The 2015 to 2017 and the 2009 to 2014 F-150 trucks are outside this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The bumper bolts on through brackets tied directly into the frame. The M3850-1 relocation bracket is optional and is the way Fab Fours retains factory technology features.

What’s included

  • Aero Series front bumper without guard in black powder coat
  • Frame brackets

Not included: The LED light bar and the optional M3850-1 relocation bracket.

SKU: FFIFF17-D4371-1 Category:

Specification

Shipping weight 60.00 lbs
Package dimensions 84.00 × 30.00 × 26.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1502017–2018Raptor

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the FF17-D4371-1 for the Raptor?

Yes. The bumper fits the 2017 to 2018 Ford Raptor, and it is a direct fit for the 2017 to 2018 Ford F-150 (Raptor). It is the no guard version with a black powder coat finish.

How much does the Aero Series bumper weigh?

The no guard version of the Aero Series weighs 45 lb, while the pre-runner guard version weighs 55 lb. The no guard unit is the lighter of the two.

What does the optional M3850-1 bracket do?

It is a relocation bracket that lets the truck keep factory technology features such as Adaptive Cruise Control and Park Assist. It is an optional part and is not supplied with the bumper.

Does the Aero bumper keep the skid plate?

Yes. The Aero Series retains the factory skid plate and provides greater tire clearance, so the original underbody protection stays on the truck.

Does this bumper need inspection after trail use?

Yes. After trail use, look at the tube and plate joints for cracks, check the bolts on the frame brackets, and inspect the powder coat for chips. Tightening loose fasteners early keeps the bumper aligned and protects any lights or sensors mounted to it.
