Overview

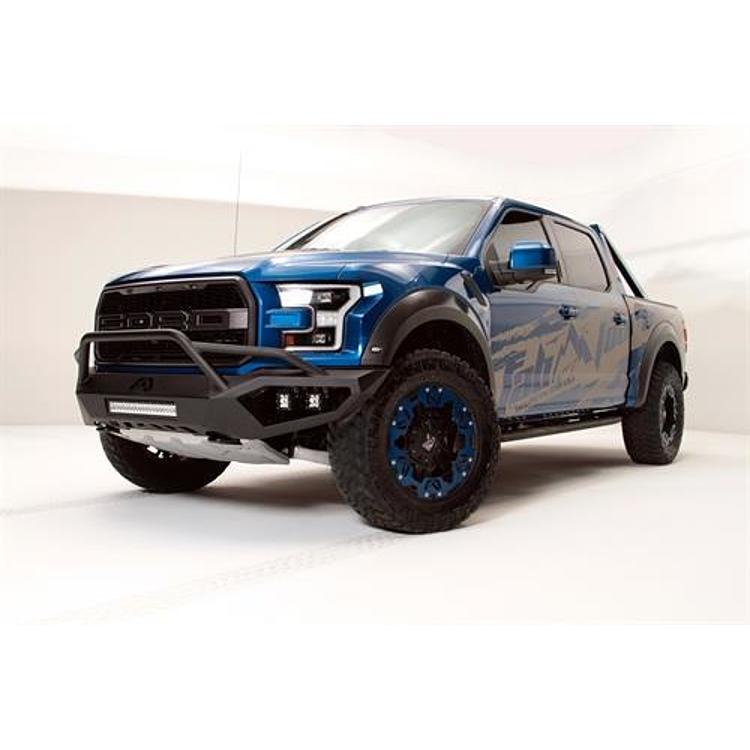

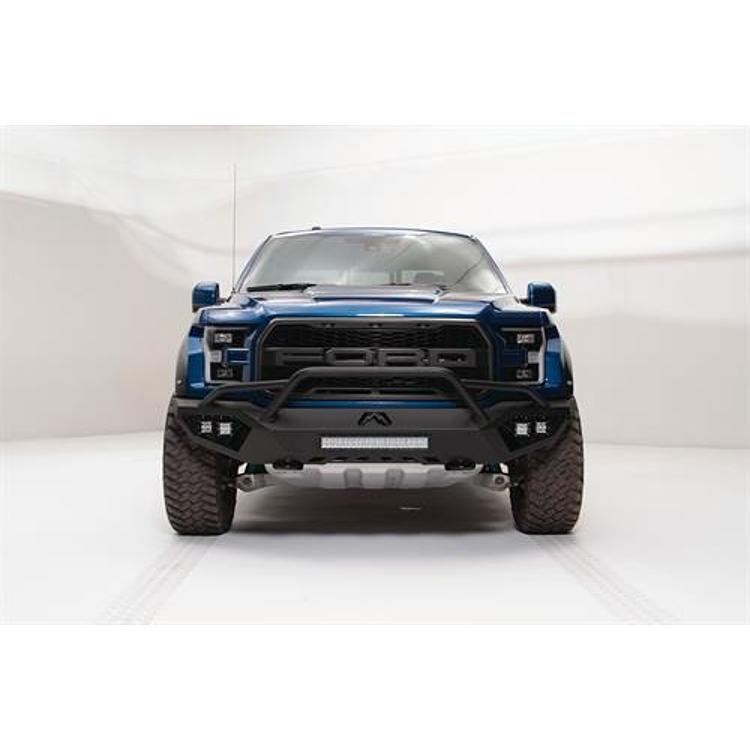

The Fab Fours FF17-D4352-B is a Vengeance front bumper with a pre-runner guard in bare steel for the 2017-2018 Ford F-150 Raptor. The fit is high and tight to the vehicle’s contours, and it is a complete bolt-on unit with brackets that tie directly to the frame.
The Vengeance Series is a line of lightweight steel bumpers. The design retains factory technology such as Adaptive Cruise Control and Park Assist when the optional relocation bracket is used. The bumper has a center cutout for a 20 inch LED light bar and lower cutouts for airflow.
Key features
- Bare steel, 11 ga. U.S. steel construction
- High and tight fit to the contours of the vehicle
- Complete bolt-on bumper with provided brackets that tie directly to the frame
- Center mount for a Rigid Industries 20 inch LED light bar (not included)
- Mounting options on each side for two 2×2 Dually lights (not included)
- Lower cutout for airflow
- Optional relocation bracket M3850-1 to retain factory technology features
- Optional mesh inserts for the center cutout and side openings
- Made in the USA
Fitting a bare steel bumper
Bare steel bumpers need a little more attention than powder-coated ones. Bare metal can start to rust at cut edges, bolt holes and welds, so consider a coat of primer or a rust-inhibiting sealer on any exposed areas during installation. Clean the surfaces well before painting, and apply a finish that suits the steel and your climate.
Front end weight matters for steering, braking and suspension load. A heavier pre-runner guard adds mass ahead of the front axle, so think about how the truck will handle on road and trail, and whether the load will change tire wear. Check the stock suspension and the brakes after the first drives with the bumper fitted.
Adding a bumper with a center light mount and side mounts raises the question of sensor placement. If the truck has adaptive cruise control or park assist, check sensor alignment after fitting and confirm whether the relocation bracket is needed. Recheck the frame brackets after rough roads, and inspect the weld and bolt areas for early rust.
- Prime cut edges and bolt holes
- Check suspension and brakes after first drives
- Re-check frame bolts after rough roads
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | FF17-D4352-B |
| UPC | 5810114657 |
| Product type | Front bumper with pre-runner guard |
| Series | Vengeance |
| Position | Front |
| Material | Steel, 11 ga. U.S. steel |
| Finish | Bare steel |
| Weight without guard | 65 lbs |
| Weight with pre-runner guard | 75 lbs |
| Light bar mount | Center, for a 20 inch LED light bar |
| Side light mounts | Two 2×2 Dually lights each side |
| Optional center mesh insert | M2450-1 |
| Optional side mesh insert | M3950-1 |
| Optional relocation bracket | M3850-1 |
| Origin stated in source | Made in the USA |
| Fit type | Direct fit |
Vehicle fitment
This bumper fits the 2017-2018 Ford F-150 Raptor.
This bumper is for 2017-2018 only. Other Raptor years and other F-150 trims are not covered. The optional relocation bracket is needed to retain factory technology features. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Bumpers add significant weight to the front or rear of a vehicle, so use a helper or lifting equipment during installation. Use all of the supplied hardware, follow the fastener sequence in the fitting steps, and tighten each bolt fully before moving on.
Re-check the mounting bolts after the first miles of driving. Confirm clearance around sensors, lighting and the winch or recovery equipment you plan to use, and check local regulations on bumper height and lighting.
If the vehicle has Adaptive Cruise Control or Park Assist, confirm sensor placement and the need for the optional relocation bracket before installation.
What’s included
The Vengeance front bumper with pre-runner guard comes with the brackets that tie it to the frame.
Not included: Lights and the light bar are not included. The optional mesh inserts (M2450-1 for the center and M3950-1 for the sides) and the relocation bracket (M3850-1) are separate parts.
