Overview

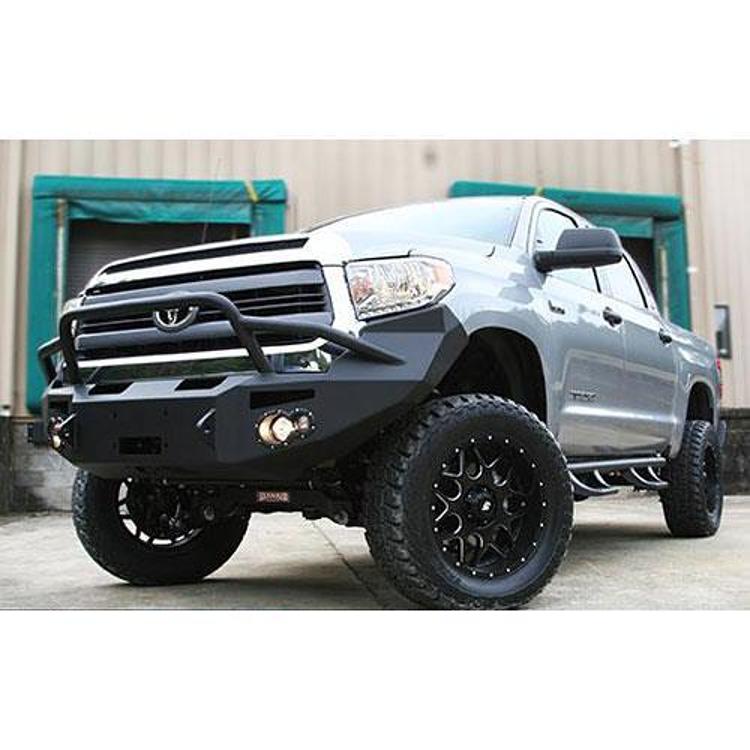

The Fab Fours Winch Front Bumper with No Guard, part number TT14-H2852-1, is a black powder-coated steel winch bumper for the 2014–2018 Toyota Tundra.
Fab Fours builds the Premium winch bumper to be strong and durable, and it sits farther out than a stock bumper for more tire clearance. Integrated fog and turn lights, air ducts and D-ring mounts are part of the design. The bumper accepts winches up to 12,000 lb. Pre-runner guard and base bumper versions are offered in this line. The 3/16 steel carries a black powder coat, and the 1/4 inch boxed mounting system adjusts to a custom fit. This no guard version sits alongside sibling TT14-H2851-1, which has a different part number. The winch mount and 3/4 inch D-ring mounts are included, and the bumper is made in the USA with the fog and turn lights already included.
Key features
- Winch bumper with no guard
- Accepts winches up to 12,000 lb or smaller
- 3/4 inch D-ring mounts
- 90mm fog and 60mm turn indicator lights included
- 1/4 inch boxed mounting system with adjustment for a custom fit
- 3/16 steel, black powder coat
Trail use and clearance
Tire clearance is the main reason many owners fit a winch bumper like this. Moving the bumper line out creates room for larger tires, but it also changes the approach angle and the way the front of the truck meets obstacles, so check the clearance with the wheels and tires you intend to run. Turning and articulation should be tested in a driveway before a trail trip.
A steel front end protects the radiator, the cooling components and the front suspension in rocky terrain, but it also adds weight and can trap brush or mud in the air ducts. Clean the ducts and the area behind the bumper after off-road use, and check the bumper mounts for loosened bolts. Keep the winch cable or rope in good shape, since the bumper passes recovery loads through its mounts.
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | TT14-H2852-1 |
| UPC | 5810107789 |
| Position | Front |
| Width | Full |
| Material | Steel, 3/16 |
| Finish | 2-stage matte black powder coat (bare steel is -B instead of -1) |
| Guard | None |
| Winch rating | Up to 12,000 lb or smaller |
| D-ring mounts | 3/4 in, included |
| Winch mount | Included |
| Light mounts | Included |
| Fit type | Direct fit |
Vehicle fitment
The bumper fits the 2014–2018 Toyota Tundra in 1794 Edition, Limited, Platinum, SR, SR5 and TRD Pro trims. The 2007–2013 Tundra is a different generation with its own bumpers, so it is not covered. Confirm your vehicle’s year, model and trim before ordering.
The 2007–2013 Tundra is a different generation with its own bumpers. Confirm your vehicle’s year, model and trim before ordering.
What’s included
- Winch bumper with no guard
- Winch mount
- D-ring mounts
- 90mm fog and 60mm turn indicator lights
Not included: A winch.
