Overview
The Tuff Country 54071 is a 4 inch suspension lift kit for the Toyota Tundra 4WD. It gives clearance for 35 x 11.5 inch tires. It fits the 2007–2018 Tundra, including the 1794 Edition, Base, Limited, Platinum, SR, SR5 and TRD Pro trims.
A combination of upper control arms and upper coil and strut spacers keeps the Tundra’s front end in the correct geometry once it is lifted. The factory front struts and rear shocks can be retained, so the existing shocks are used with the kit.
The rear uses lift blocks and U-bolts. The installation is bolt-on, with no cutting, drilling or welding.
Key features
- 4 inch lift height
- Upper control arms that maintain factory geometry
- Upper coil and strut spacers
- Factory front struts and rear shocks can be retained
- Clearance for 35 x 11.5 inch tires
- Bolt-on installation with no cutting, drilling or welding
Front geometry after the lift
Upper control arms and coil spacers change the front end’s geometry, which affects caster, camber and toe. Those angles drive steering feel, tire wear and how the truck tracks on the highway, so a professional alignment after the install is an important step. Worn ball joints and bushings should be replaced before the alignment, so that the new settings hold.
Front shock and strut setups also need a look. Because the factory struts are kept, check that the spring and strut combination still sits at the new height and that the strut mounts are not binding. Pay attention to tire-to-fender clearance at full steering lock and over bumps, since a larger tire can rub at the new ride height. Keep a note of the alignment numbers for future reference.
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 54071 |
| UPC | 698815540714 |
| Lift | 4 inch |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Spacer |
| Rear lift method | Lift blocks and U-bolts |
| Tire clearance | 35 x 11.5 inch |
| Shocks | Not included; factory shocks can be retained |
Vehicle fitment
It fits the 2007–2018 Toyota Tundra, including 1794 Edition, Base, Limited, Platinum, SR, SR5 and TRD Pro models.
Tundra model years outside 2007–2018 are not covered. Make sure the year, model and trim of your Tundra fit before buying.
Installation notes
The kit replaces the front upper arm geometry, so check the alignment after installation. Because the front struts are retained, the shock and strut setup should be checked against the new ride height.

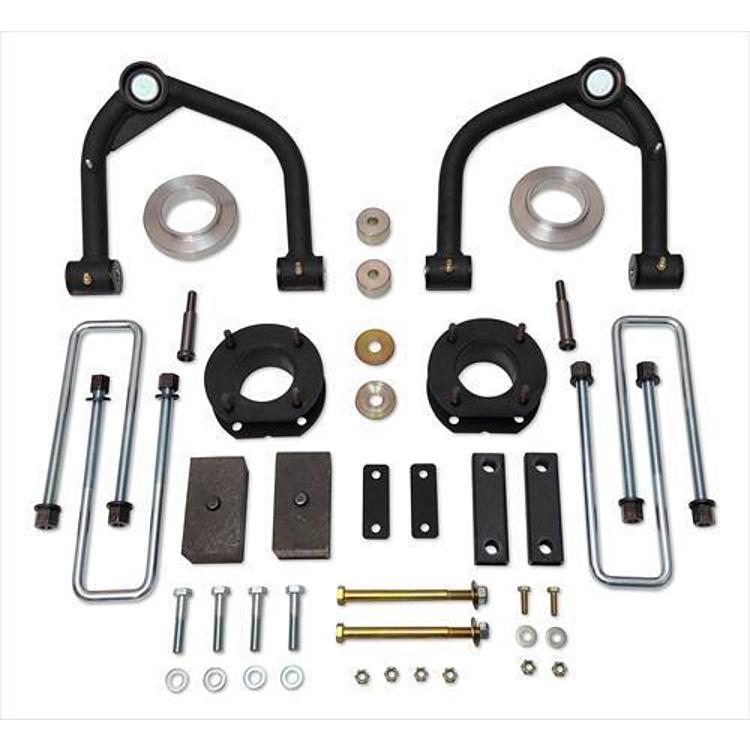

What’s included
The kit includes the upper control arms, upper coil and strut spacers, and the lift blocks and U-bolts for the rear.
Not included: Shocks.
