Overview
The Tuff Country 55907 is a knuckle-type lift kit with a 5 inch lift and a 3 inch rear lift. It uses a strut spacer, relocation brackets and knuckles, along with lift blocks at the rear.
The kit includes a brake proportioning valve bracket, rack and pinion brackets, an extended brake line, U-bolts and lift blocks. Shocks are not included, so the existing shocks are used or new shocks are fitted separately.
Confirm fit for your vehicle’s year, model and trim before ordering, since fit is the deciding factor for a knuckle lift.
Key features
- 5 inch lift, with a 3 inch rear lift
- Knuckle suspension type
- Strut spacer
- Relocation brackets
- Rack and pinion brackets
- Brake proportioning valve bracket and extended brake line
- Lift blocks and U-bolts at the rear
Knuckle lift geometry
A knuckle-type lift raises the front by changing the knuckle and its mounting, so the steering and brake components move with the new height. Relocation brackets and rack and pinion brackets keep the steering linkage in position, but the tie rods and drag link angles should still be checked. The brake proportioning valve bracket and extended brake line keep the braking system working with the new front geometry.
Because several front parts change at once, the alignment, steering centering and brake feel should be verified after installation. Lift blocks at the rear and U-bolts need periodic tightening, and the shocks should be sized to the new height. Inspect the knuckles and bushings for play during routine service.
- Verify brake line length and routing after install
- Check tie rod ends and drag link angles
- Re-torque U-bolts and lift block fasteners
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 55907 |
| UPC | 69881555907 |
| Lift | 5 inch, with a 3 inch rear lift |
| Suspension type | Knuckle |
| Rear lift method | Block |
| Shocks | Not included |
Vehicle fitment
Confirm the fit against your truck’s year, model and trim before ordering.
Installation notes
A knuckle lift with relocation brackets and a brake proportioning valve bracket changes several parts of the front and steering geometry. Check the alignment, the brake lines and the steering after installation.

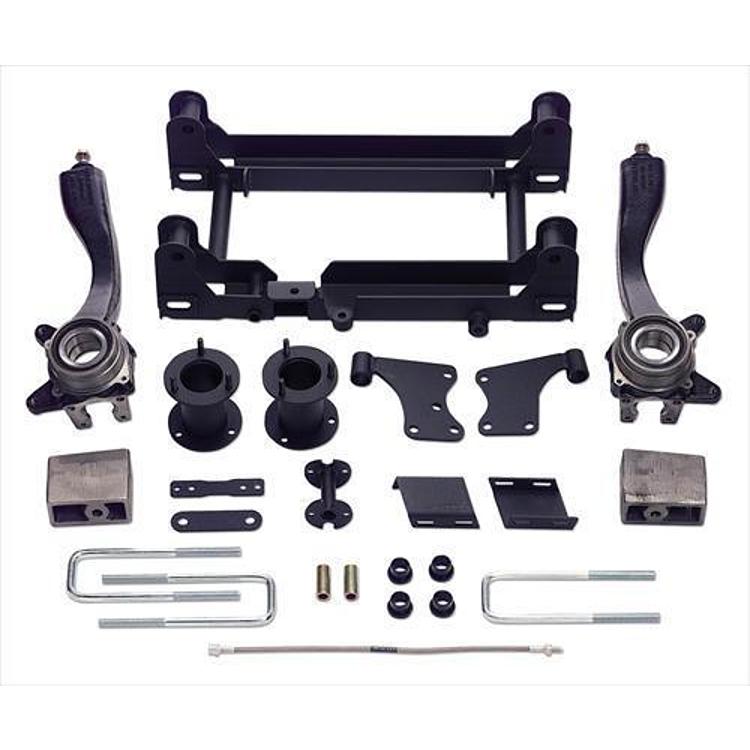

What’s included
The kit includes a strut spacer, relocation brackets, rack and pinion brackets, a brake proportioning valve bracket, an extended brake line, U-bolts, lift blocks and knuckles.
Not included: Shocks.
