Overview
The Tuff Country 13085 is a 3.5-inch lift kit that includes front upper control arms, torsion keys and rear lift blocks with a U-bolt kit. The lift height range is 3 to 4.99 inches, and the maximum listed tire size is 33×12.50. Shocks are not included, so the existing shocks are used with the lift.
Key features
- 3.5-inch lift
- Front upper control arms
- Torsion keys for front height
- Rear lift blocks and U-bolts
- Hardware kit included
Setting up the front end
Upper control arms and torsion keys work together to set the front ride height, so the adjustment is done in steps. Set each side to match before measuring the final stance, and avoid large differences between sides, since uneven height can pull the truck during braking.
Lift blocks at the rear change the pinion angle, which affects vibration and wear in the driveline. Inspect U-bolts and the axle housing after the first trips, and listen for vibration at highway speeds. Shock travel also changes, so check the bump stops and shock mounts for clearance. Keep a record of the measurements taken before and after the install, which makes future adjustments easier.
- Torque hardware to specification after the lift settles
- Check tire clearance at full lock
- Inspect shock mounts for wear
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 13085 |
| UPC | 698815130854 |
| Lift height | 3.5 inches |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Torsion keys with upper control arms |
| Rear lift method | Lift blocks and U-bolts |
| Maximum tire size | 33×12.50 |
| Shocks | Not included |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit kit, and it should be matched to your truck’s year, model and trim before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The upper control arms and torsion keys change front suspension geometry, so alignment should be checked after installation. The rear blocks and U-bolts also change ride height, so check driveline angles.

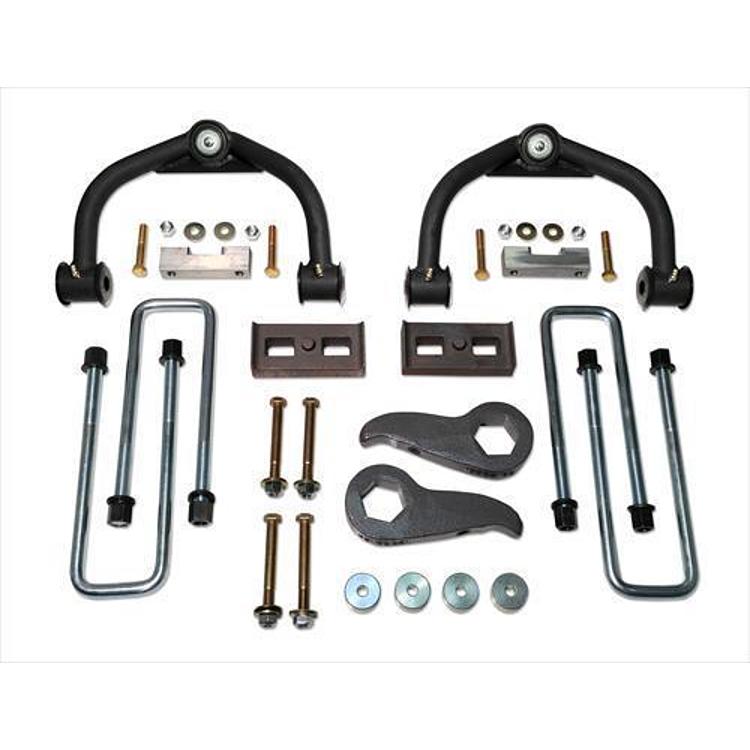

What’s included
- Front upper control arms
- Torsion keys
- Rear lift blocks
- Rear U-bolt kit
- Hardware kit
Not included: shocks.
