Overview
The Tuff Country 12612KN is a leaf spring lift kit with SX8000 shocks, built to raise a 1969–1972 Chevrolet K10 or K20 pickup. Tuff Country lists 2 inch front and 3 inch rear lift heights, which sets the truck level and adds fender clearance for larger tires.
The kit includes EZ-Ride front springs and 52 inch rear springs, along with U-bolts, shock boots and a brake line extension for the install. SX8000 shocks are included, so the kit comes with a complete shock package.
Tuff Country has made EZ-Ride suspension lift kits since 1988, and it backs its lift kits with a limited lifetime warranty.
Key features
- Lift kit with SX8000 shocks included
- 2 inch front lift
- 3 inch rear lift
- EZ-Ride front springs
- 52 inch rear leaf springs
- Shock boots and U-bolts included
- Brake line extension included
- Limited lifetime warranty.
Leaf spring lift basics
Leaf spring lifts work differently from coil spring lifts. The leaf pack carries the axle, so a taller spring or a new pack changes the arch and the position of the axle under load. Rear springs are often replaced as a matched pair, and the front springs should be set to suit the rear so the truck does not sit at a tilt. Shackles, bushings and spring bolts are commonly checked during the same job because they bear the new load angle.
A rear leaf lift often increases the pinion angle, which can cause driveline vibration if it is not corrected. Brake hoses and lines may need more length, so the included brake line extension should be fitted before the wheels go back on. Shock boots help protect the shock body from dirt and should be checked for splits during regular inspection. Tighten the U-bolts again after the first few drives, since new leaf springs can settle under load.
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 12612KN |
| UPC | 698815004148 |
| Front lift | 2 inch |
| Rear lift | 3 inch |
| Suspension type | Leaf spring |
| Rear springs | 52 inch leaf springs |
| Shocks | SX8000 shocks, included |
| Warranty | Limited lifetime |
Vehicle fitment
It fits the 1969–1972 Chevrolet Blazer (Base), Chevrolet K10 and K20 pickups and Suburbans, the 1970–1972 GMC Jimmy, and the 1969–1973 GMC K15 and K25 pickups and Suburbans.
1973 and later K-series trucks fall outside this fit, so check your truck’s year and body style first.
Installation notes
The kit lifts the front and rear by different amounts, so the rear leaf springs and front springs need to be checked for level after installation. The kit includes a brake line extension for the lift.
What’s included

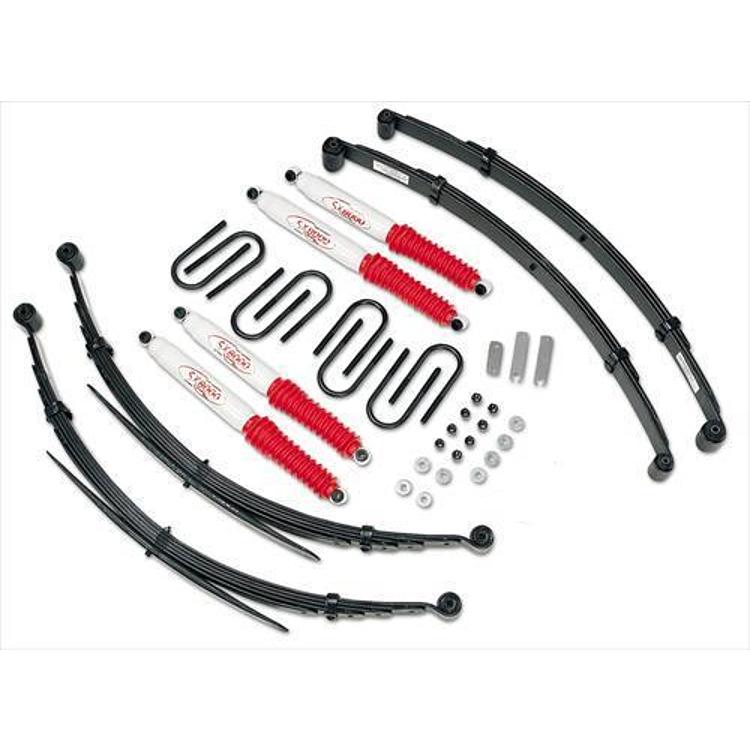

The kit includes EZ-Ride front springs, 52 inch rear springs, SX8000 shocks, shock boots, U-bolts and a brake line extension kit.
