Overview
The Tuff Country 16720K is a 6 inch leaf spring lift kit for 1973–1986 Chevrolet K20 pickups and Suburbans and GMC K25 and K2500 trucks. Its lift height range is 5 to 6.99 inches.
At the front, the kit uses EZ-Ride springs and a steering arm. At the rear, it uses a 4 inch block kit with a 2 inch add-a-leaf, along with U-bolts. A transfer case drop kit and a sway bar drop kit are included, and the brake line extension kit is part of the package.
Shocks are not included, so the existing shocks are used or new shocks are fitted separately. Tuff Country describes its EZ-Ride line as easy to install with a great ride.
Key features
- 6 inch lift height
- EZ-Ride front springs
- Steering arm and U-bolts
- 4 inch block kit at the rear
- 2 inch add-a-leaf at the rear
- Transfer case drop kit and sway bar drop kit
- Brake line extension kit
Choosing shocks for a leaf lift
Shocks do most of their work once a leaf spring lift changes the suspension angles, so the shock length and mounting position matter after a height change. A longer-travel shock can keep the valving and mounts in a usable range, while a shock that is too short can bottom out on the rebound stroke. Check the existing shocks for leaks, worn bushings and cracked mounts before reusing them.
Leaf spring lifts also depend on the rest of the rear axle hardware. U-bolts should be torqued again after the first few drives, and the add-a-leaf and block stack should sit square on the axle seat. Worn leaf spring bushings, sagged springs and tired hangers are often replaced alongside a lift, because a higher ride height puts more load on those parts.
- Shock length compared with the new ride height
- U-bolt torque after the first trail runs
- Leaf bushings and hangers for wear
- Driveline angles after a transfer case drop
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 16720K |
| UPC | 698815016301 |
| Lift | 6 inch |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Leaf spring |
| Rear lift method | Lift block, U-bolts and add-a-leaf |
| Rear block kit | 4 inch |
| Add-a-leaf | 2 inch |
| Shocks | Not included |
Vehicle fitment
It fits the 1973–1986 Chevrolet K20 (pickup and Suburban), the 1986 GMC C2500 Suburban, the 1975–1978 GMC K25 (pickup and Suburban), the 1973–1974 GMC K25 and K2500, and the 1979–1986 GMC K2500 pickup and Suburban.
Years and models outside that range are not covered. Check that your year, model and trim match this kit before ordering.
Installation notes
The 4 inch block and 2 inch add-a-leaf set the rear height, so the rear springs and the lift blocks should be checked for level after installation. Check the driveline angles after the transfer case drop kit is fitted.
What’s included

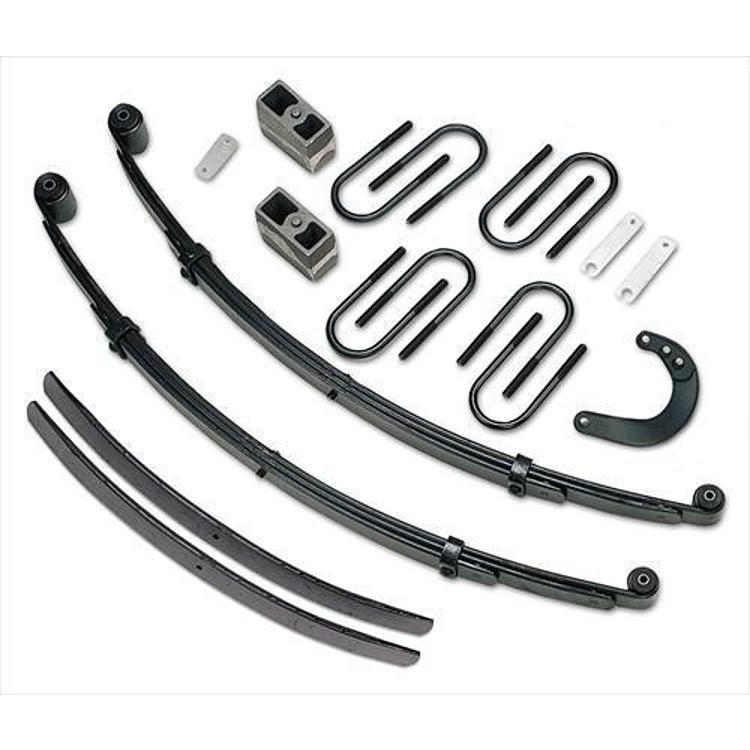

The kit includes EZ-Ride front springs, a steering arm, U-bolts, a 4 inch block kit, a 2 inch add-a-leaf, a transfer case drop kit, a sway bar drop kit and a brake line extension kit.
Not included: Shocks.
