Overview
The Trail Master TM506 is a leveling lift that raises the front 3.0 inches with strut spacers and the rear 1.0 inch with blocks and U-bolts. It also includes differential drop and skid plate spacers, and Trail Master gives it a maximum tire size of 33×12.50.
The kit uses aluminum spacers in a black finish, and it is designed for straightforward installation. It has no bump stops, and a track bar drop is not included with it. The parts are designed to limit added wear on factory components.
Key features
- 3.0-inch front lift with strut spacers
- 1.0-inch rear lift with blocks and U-bolts
- Differential drop and skid plate spacers
- Aluminum spacers in black
- Maximum tire size 33×12.50
- No bump stops; track bar drop not included
- Lifetime warranty
Measuring heights before and after
Measure the front and rear heights before any part comes off. Mark the current front height at the fender and the rear height at the axle, so the new values can be compared directly. Because the front and rear lifts come from different parts, it helps to write both numbers down before and after the job.
The differential drop and skid plate spacers move the driveline and the skid plate, so their clearance should be checked after the install. Rear block kits also rely on U-bolt nuts staying tight as the axle settles. Recheck driveline angles and skid plate clearance once the vehicle has been driven.
- Mark current front and rear heights before work
- Check skid plate clearance after installation
- Verify driveline angles after the first drives
- Recheck U-bolt nut tightness regularly
Specifications
| Brand | Trail Master |
|---|---|
| Part number | TM506 |
| UPC | 614901097122 |
| Front lift height | 3.0 inches |
| Front lift method | Strut spacers |
| Rear lift height | 1.0 inch |
| Rear lift method | Lift blocks and U-bolts |
| Spacer material | Aluminum |
| Finish | Black |
| Shock relocation bracket | Not applicable |
| Bump stops | None |
| Track bar drop | Not included |
| Maximum tire size | 33×12.50 |
Vehicle fitment
The TM506 has no fitment listed and names no vehicle. Because it changes both front and rear heights, the truck’s exact year, make, model and trim decide whether those front and rear lift amounts suit it.
Installation notes
The front and rear parts go on together, and the differential drop and skid plate spacers change where the driveline and skid plate sit. Driveline angles and alignment should be checked once the work is done, because a front and rear lift both move those angles.
Measure the front and rear heights before and after the install, since the kit lifts each end with different parts and the result depends on both.
What’s included

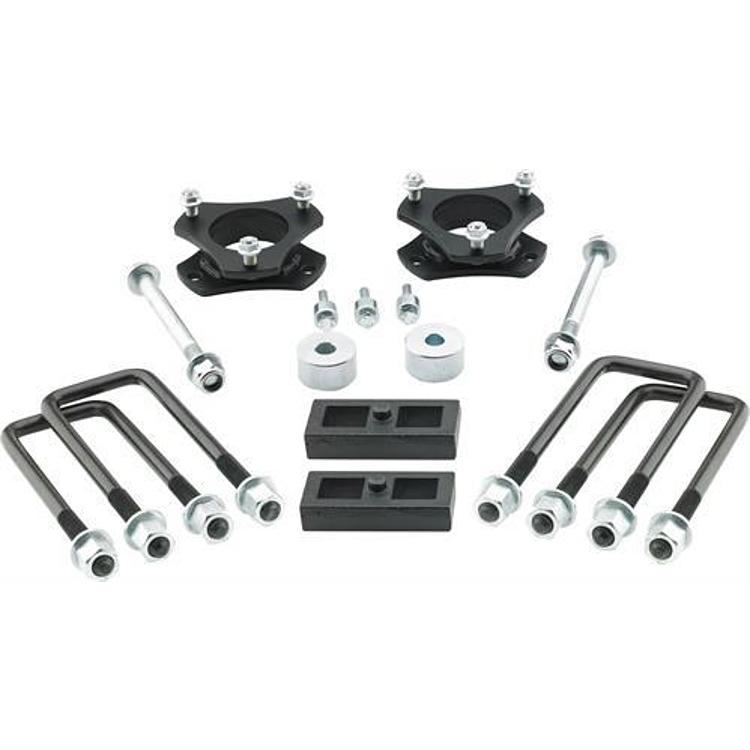

Front strut spacers, rear 1-inch blocks with U-bolts, and differential drop and skid plate spacers.
Not included: a track bar drop.
