Trail Master 2.0 Inch Leveling Lift Kit with Shock Extension Brackets – TM3420-20010

Trail Master

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 2.0-inch lift with front and rear coil spring spacers
  • Shock extension brackets included
  • Max tire size 32×11.50
  • Fits 2004-2006 Jeep Wrangler LJ and 1997-2006 Wrangler TJ
  • Lifetime warranty

Description

Overview

The Trail Master TM3420-20010 is a 2.0-inch leveling lift that uses front and rear coil spring spacers, with shock extension brackets included to keep the shocks working at the new height. It fits the 2004 to 2006 Jeep Wrangler LJ and the 1997 to 2006 Jeep Wrangler TJ. The maximum tire size is 32×11.50.

The spacers are polyurethane with a black finish. The kit is designed for straightforward installation and comes with a lifetime warranty. There are no bump stops, and a track bar drop is not included.

Key features

  • 2.0-inch lift
  • Front and rear coil spring spacers
  • Shock extension brackets included
  • Maximum tire size 32×11.50
  • Polyurethane spacers in black
  • Designed for straightforward installation.
  • Lifetime warranty

Before you buy

A leveling lift raises the front or rear to match the height of the other end, which is why the shocks and alignment are part of the job. Coil spring spacers add height by sitting between the spring and its seat, so the spring keeps its original rate while the body rides higher. Longer shock mounting is needed at this height, which is what the extension brackets are for.

Before buying, look at how the lift interacts with the rest of the vehicle. Steering, brake lines and driveline angles change with ride height, and many owners replace the track bar or add a brake line extension at the same time. Check the tire and wheel offset against the maximum tire size, since a taller tire rubs first at full compression.

  • Check brake line length after the lift
  • Inspect the upper shock mounts for stress cracks
  • Recheck torque on spacer and bracket bolts after the first drive

Specifications

Brand Trail Master
Part number TM3420-20010
UPC 614901082371
Lift height 2.0 inches
Front lift method Coil spring spacers
Rear lift method Coil spring spacers
Shock extension brackets Included
Bump stops None
Track bar drop Not included
Spacer material Polyurethane
Finish Black
Maximum tire size 32×11.50

Vehicle fitment

It fits the 2004 to 2006 Jeep Wrangler (LJ), including Unlimited and Unlimited Rubicon, and the 1997 to 2006 Jeep Wrangler (TJ) in several trims.

The list does not include the JK or JL Wrangler, or the Cherokee and Grand Cherokee models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Shock extension brackets are included to lengthen the shock mounting, which keeps the shocks in range at a 2.0-inch lift. Check the alignment once the front and rear spacers are installed.

The shock extension brackets are supplied in the kit, and the front and rear coil spring spacers provide the 2.0-inch height. The maximum tire size is 32×11.50.

What’s included

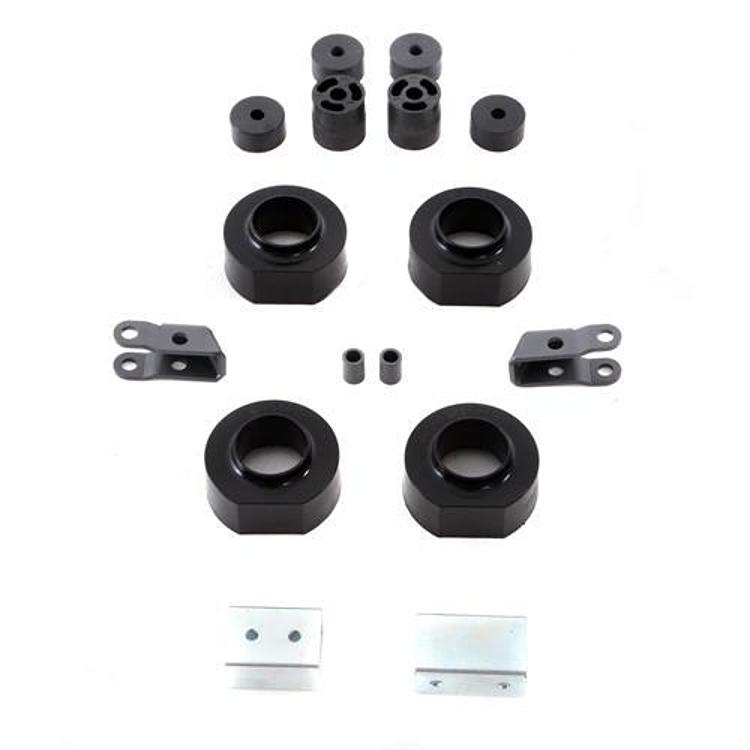

Front and rear coil spring spacers, shock extension brackets and polyurethane spacers in black.

Not included: a track bar drop.

SKU: T/MTM3420-20010 Category:

Specification

Shipping weight 7.09 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What do the shock extension brackets do?

They are included to extend the shock mounting so the shocks work at the 2.0-inch height. The kit is also listed with front and rear coil spring spacers, which provide the lift.

Does it fit a TJ Wrangler?

Yes. It fits the 1997 to 2006 Jeep Wrangler (TJ) in several trims. Check the year, model and trim against your vehicle before ordering.

What is the maximum tire size?

The maximum tire size is 32x11.50. Make sure your tire and wheel combination fits within that figure before you install the kit.

How often should the leveling hardware be inspected?

Inspect the spacers, shock brackets and bolts at each oil change and after the first few off-road trips. Look for loose fasteners, cracked welds and rubbing on the tires or body. Retighten bolts to the proper torque before the next trip.

Do polyurethane spacers need extra care?

Polyurethane holds up well to road grime, but it can stiffen in cold weather and can wear where it contacts metal. Wipe it clean with mild soap and water and check for cracks or flattening over time.
