Trail Master 1.5 Inch Leveling Lift Kit – TM3415-20010

Trail Master

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 1.5-inch lift with front and rear coil spring spacers
  • No shocks included
  • Max tire size 31×10.50
  • Fits 2004-2006 Wrangler LJ and 1997-2006 Wrangler TJ models
  • Lifetime warranty

Description

Overview

The TM3415-20010 is a 1.5-inch leveling lift with front and rear coil spring spacers. It does not include shocks. It fits the 2004 to 2006 Jeep Wrangler LJ and the 1997 to 2006 Jeep Wrangler TJ, and the maximum tire size is 31×10.50.

The spacers are polyurethane with a black finish. The kit carries a lifetime warranty. The kit has no bump stops, and a track bar drop is not included.

Key features

  • 1.5-inch lift
  • Front and rear coil spring spacers
  • No shocks included
  • Maximum tire size 31×10.50
  • Polyurethane spacers in black
  • Simple installation
  • Lifetime warranty

Shocks and ride height

Because this kit uses coil spring spacers at both ends and includes no shocks, the ride height change depends a great deal on the shocks already on the truck. Shocks that are fully extended at the new height can bind or lose travel, so measure the fitted length and compare it with the ride height before the job. Replacing the shocks at the same time is a common way to keep damping consistent.

Rear spacers raise the rear without moving the axle, so the change is mostly in height. Check the springs for sag and the bushings for wear, because a tired spring will not hold the new height. After the install, test the ride over rough ground and listen for any bottoming that might point to a shock length problem.

  • Measure shock length at the new height
  • Check springs and bushings for wear
  • Inspect tire rub at full steering lock
  • Replace shocks alongside the spacers if they are worn

Specifications

Brand Trail Master
Part number TM3415-20010
UPC 614901082340
Lift height 1.5 inches
Front lift method Coil spring spacers
Rear lift method Coil spring spacers
Shocks Not included
Bump stops None
Track bar drop Not included
Spacer material Polyurethane
Finish Black
Maximum tire size 31×10.50

Vehicle fitment

It fits 2004 to 2006 Jeep Wrangler LJ models, including Unlimited and Unlimited Rubicon, and 1997 to 2006 Jeep Wrangler TJ models in several trims. The JK and JL generations of the Wrangler are outside this fit, so check your year, model and trim before ordering.

The list does not include the JK or JL generations of the Wrangler. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Front and rear coil spring spacers are the lift method here, so the rear is raised as well as the front. Because no shocks come with the kit, the existing shocks have to be checked for length at the new ride height.

Because the kit is a 1.5-inch lift at both ends and includes no shocks, check the existing shocks for length before installing. The maximum tire size is 31×10.50, so measure the tire and wheel against that figure.

What’s included

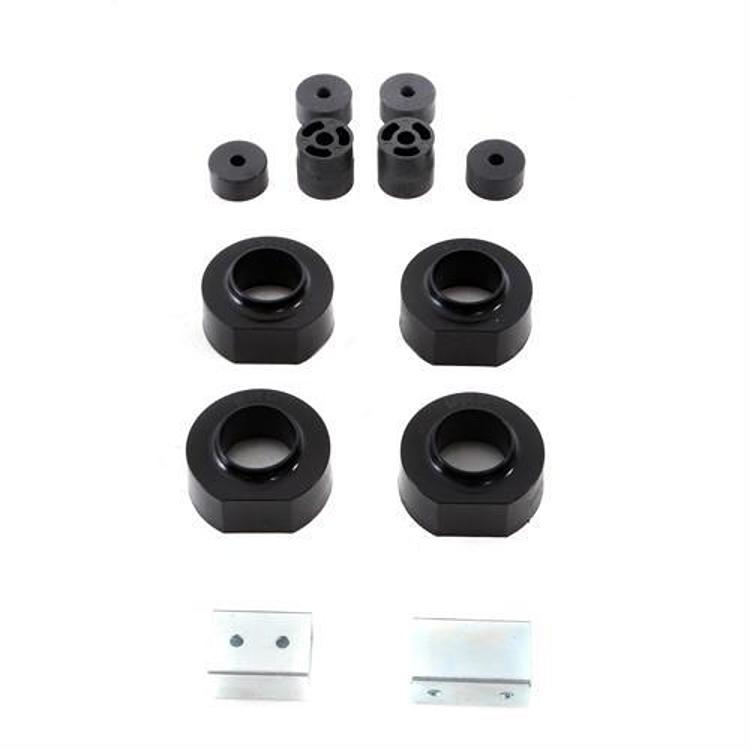

Front and rear coil spring spacers in polyurethane and black.

Not included: shocks and a track bar drop.

SKU: T/MTM3415-20010 Category:

Specification

Shipping weight 2.85 lbs
Package dimensions 9.00 × 5.00 × 5.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the TM3415-20010 come with shocks?

No. The kit has no shocks, so existing shocks must be checked for length at the new 1.5-inch ride height. The front and rear coil spring spacers are included.

Does it fit a TJ Wrangler?

Yes. It fits the 1997 to 2006 Jeep Wrangler TJ in several trims, along with the 2004 to 2006 LJ. Confirm the year, model and trim of your truck before buying.

What is the maximum tire size?

The maximum tire size for the TM3415-20010 is 31x10.50. Measure the tire and wheel you plan to run against that size before installing the kit.

Can I run the old shocks with this kit?

Sometimes. Existing shocks can work if they are long enough to reach full extension at the new height without bottoming. Measure the fitted length first, and replace any shock that is worn or runs out of travel.
