Trail Master 2.25″ Leveling Lift Kit – TM592

Trail Master

Shop Toyota Tacoma Leveling Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Master TM592 2.25 inch front strut spacer leveling lift
  • For 4WD and PreRunner models
  • Bump stops included
  • Fits 2005–2018 Toyota Tacoma

Description

Overview

The Trail Master 2.25 Inch Leveling Lift Kit, part number TM592, adds 2.25 inches of front lift to the Toyota Tacoma through strut spacers. It suits 4WD and PreRunner models in the Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro and TRD Sport trims for 2005–2018.

Bump stops are included, which is not the case with the TM490 and TM491 kits. The spacers are steel, and the kit has no track bar drop.

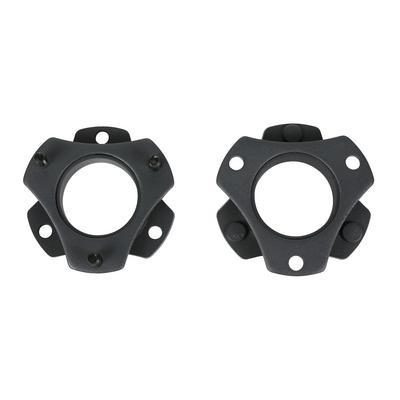

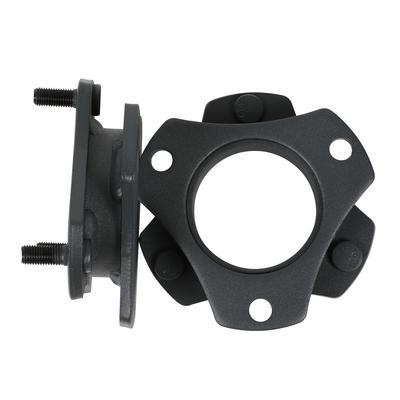

Strut spacers add height at the front by sitting between the strut and mount, so the factory strut and coil keep their function. The 2.25 inch lift is a front-only change, with bump stops included. The steel spacers are finished in black. Check the truck’s level at both ends after fitting, and confirm that the tire size you plan to run clears the front arches at the new height.

4WD and PreRunner Tacomas should check the track bar and driveline angles after the lift, since those angles change with the new height. Measure the geometry before and after fitting, and recheck the alignment once the kit is installed.

Key features

  • 2.25 inch front lift
  • Front strut spacers
  • Bump stops included
  • Steel spacers in black

Driveline and alignment after a lift

Raising the front changes the angle of the front driveline, which connects the transfer case to the front differential on 4WD trucks. A larger angle can cause vibration at speed, and a steep angle wears the joints faster. Measure the angles before and after fitting to see how much the lift has changed them.

On a PreRunner, check the rear driveline and the rear suspension in the same way, since the rear is not raised and the front is. Look for worn joints, grease leaks or clicking when turning. Keep the alignment check and the tire clearance check together, because both change with the new front height.

  • Measure driveline angles before and after fitting
  • Check the track bar and its mounting points
  • Recheck alignment once the lift is complete

Specifications

Brand Trail Master
Part number TM592
Front lift height 2.25 inch
Front lift method Strut spacers
Spacer material Steel
Finish Black
Bump stops Included
Track bar drop Not included
Shock relocation bracket Not applicable

Vehicle fitment

It fits the 2005–2018 Toyota Tacoma in the Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro and TRD Sport trims.

Tacoma years outside 2005–2018 and other Toyota models are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Use the included bump stops with the new height. Confirm the drive type before fitting, since the kit suits 4WD and PreRunner models.

Fitment

VehicleYearsTrims
Toyota Tacoma2005–2018Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Trail Master TM592 fit a 2005–2018 Toyota Tacoma?

It fits the 2005–2018 Tacoma in several trims, including SR5, TRD Off-Road and TRD Pro. Check your year and trim before ordering, because years outside that range are not covered.

Does the TM592 come with bump stops?

Yes. Bump stops are included, which is a main difference from the TM490 and TM491 kits. Check that the bump stops suit the 2.25 inch height before fitting them.

Does this kit include a track bar drop?

No. A track bar drop is not included with the TM592, so check the track bar setup separately after fitting the lift.

Can a lift change the driveline angle?

Yes. Raising the front changes the front driveline angle, which can cause vibration at speed if it moves too far. Measure the angle before and after fitting, and address any issue before regular driving.
