Overview

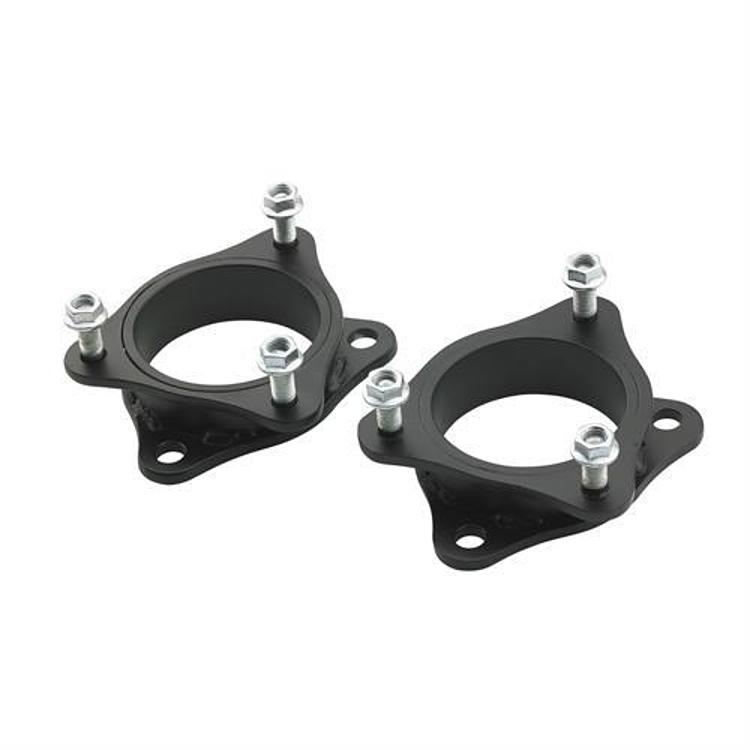

The Trail Master TM405 is a 3.0-inch front leveling lift that uses a single front strut spacer. The rear is not lifted. It is the taller of the two strut spacer leveling kits Trail Master lists in the 2.0 to 3.0 inch range, and it is powder coated black for a finished look.
The steel spacer sits at the front strut and carries a lifetime warranty. No track bar drop and no bump stops are included.
Key features
- 3.0-inch front lift
- Front strut spacer
- Powder coated black finish
- Steel construction
- Front lift only
- Installs at the front strut
- Lifetime warranty
Choosing a 3.0-inch lift
A 3.0-inch front spacer raises the front enough to change how the truck sits and how the front tires clear the fender. Before choosing a spacer of this height, measure the current front and rear heights, and look at the tire you plan to run. Front lift can also make the rear look low, so a balanced stance may depend on the rear springs and loads as well.
Steel spacers hold their shape well under load, and their hardware is where most of the attention belongs. Check the strut top nuts after the first few drives, and look at the sway bar end links and brake hoses for stretch. A powder coat finish protects the spacer from road salt, but nicks should be touched up to keep corrosion from starting underneath.
- Measure front height before and after
- Retorque strut mount nuts after the initial drives
- Inspect brake hoses at the new height
- Touch up powder coat chips to limit rust
Specifications
| Brand | Trail Master |
|---|---|
| Part number | TM405 |
| UPC | 614901092929 |
| Front lift height | 3.0 inches |
| Front lift method | Strut spacers |
| Rear lift method | Front lift only |
| Shock relocation bracket | Not applicable |
| Bump stops | None |
| Track bar drop | Not included |
| Spacer material | Steel |
| Finish | Powder coated black |
Vehicle fitment
Check the 3.0-inch front lift against your truck’s current front height and its year, make, model and trim.
Installation notes
The front strut spacer is installed at the strut, so the work is confined to the front end. A 3.0-inch front lift changes the front alignment, so schedule an alignment check once the job is done.
The black finish is a powder coat applied to the steel spacer. Because the kit is front only, nothing in it raises the rear.
What’s included
The front strut spacer in powder coated black.
Not included: a track bar drop.
